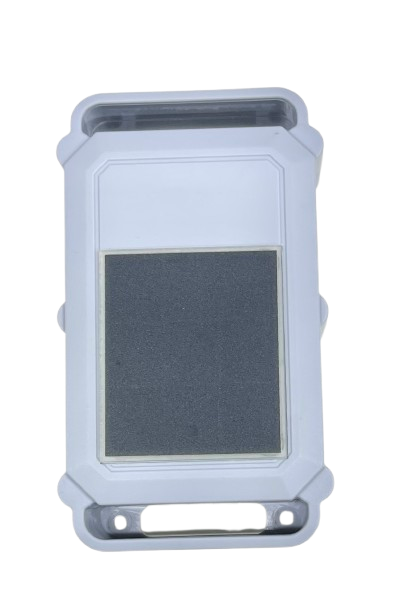

AN-122D LoRaWAN + GPS Tracker
Low Stock, 5 left
Product Description
The Winext AN-122D is a solar-assisted LoRaWAN GPS asset tracker for reliable indoor and outdoor location monitoring. It combines GPS + BeiDou GNSS positioning, Bluetooth beacon scanning, a built-in MEMS 3-axis accelerometer and anti-tamper detection to monitor asset location, movement and tilt status.
Outdoors, the tracker uses GNSS positioning with accuracy within 5 meters; indoors, it can switch to Bluetooth beacon scanning for seamless tracking coverage. A rechargeable 2000mAh battery with solar charging, motion/interval reporting modes and an IP65 enclosure make it suitable for enterprise assets, livestock, bulk commodities, logistics and shared mobility applications.
Applications
Product Specifications
| Brand | Winext |
| Model | AN-122D |
| Product Type | LoRaWAN + GPS Asset Tracker |
| Core | ARM Cortex-M33 @ 38.4MHz (32-bit) |
| Memory | 352KB Flash, 32KB RAM |
| G-Sensor | 2g MEMS 3-axis accelerometer |
| Anti-Tamper | Anti-tamper button with tamper alarm |
| Power On/Off | Physical button |
| GNSS Positioning | GPS + BeiDou |
| GPS Accuracy | ≤5 m |
| Bluetooth | Bluetooth 5.0 and above |
| GPS Antenna | 1575.42 MHz, bandwidth ±2 MHz, gain 2 dBi |
| LoRa Antenna | Built-in, bandwidth ±40 MHz, gain 1 dBi |
| Data TX Rate | 300 bps–5.4 Kbps |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / KR923 / IN865 MHz (optional) |
| Network Access | OTAA / ABP (optional) |
| LoRaWAN Class | Class A |
| Configuration | LoRa P2P, Bluetooth |
| Maximum TX Power | 19 dBm |
| LoRa RX Sensitivity | -141 dBm (SF12) |
| BLE TX Power | 0 dBm |
| BLE RX Sensitivity | -96 dBm |
| Working Temperature | -20°C to +60°C |
| Working Humidity | 10%–90% RH |
| Power Supply | Solar-powered and rechargeable battery |
| Battery | 3.7 V / 2000mAh rechargeable |
| Solar Input | 5 V / 40mA |
| Supply Voltage | DC 4.2 V |
| Standby Current | ≤40 µA |
| RX Current | ≤16 mA |
| TX Current | ≤150 mA |
| Ingress Protection | IP65 |
| Dimensions | 111 × 65 × 33.5 mm |
Product Features
- Uses standard LoRaWAN Class A communication for long-range asset status and location reporting.
- Supports GPS and BeiDou GNSS positioning with stated outdoor accuracy within 5 meters.
- Automatically supports Bluetooth beacon scanning for indoor positioning coverage.
- Built-in MEMS 3-axis accelerometer monitors movement and tilt status.
- Anti-tamper detection can trigger an alarm and buzzer when abnormal dismantling is detected.
- Solar charging and a rechargeable 2000mAh battery support long-term field deployment.
- Bluetooth enables convenient local device configuration.
- Motion and interval reporting modes support different asset-monitoring scenarios.
Package Includes
- 1 × Winext AN-122D LoRaWAN + GPS Tracker
Accessories may vary by package configuration.
Other Information
Country of Origin: China
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Supports the standard LoRaWAN protocol
- GPS + BeiDou positioning with accuracy within 5 meters
- Built-in MEMS 3-axis accelerometer for movement and tilt monitoring
- Built-in anti-dismantle sensor with tamper alarm function
- Solar-assisted power with 3.7 V / 2000mAh rechargeable battery
- Dual-mode GNSS + Bluetooth beacon positioning for indoor/outdoor tracking
- Smart positioning logic for automatic mode switching
- Bluetooth 5.0+ for convenient device configuration
- Supports motion mode and interval reporting mode
- IP65 protection rating
