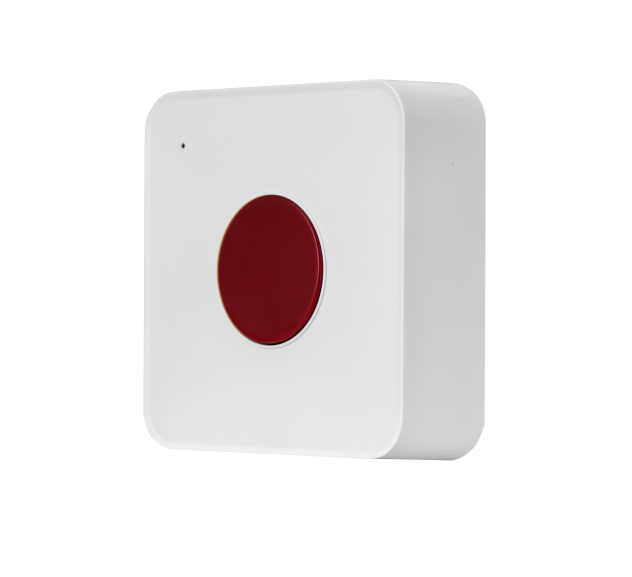

AN-301 One-Button SOS Alarm, LoRaWAN One-Button SOS Alarm
Lead Time
Product Description
AN-301 One-Button SOS Alarm, LoRaWAN One-Button SOS Alarm is designed for the warning or detection functions stated for this model. It suits users matching a signalling device to the trigger, supply and installation described in the specifications. The Maximum Tx Power specification is 19 dBm. Power is provided through the stated Built-in Li/SOCl2 battery arrangement. The Battery Capacity specification is 3.6 V / 8000mAh. When choosing this lorawan one-button sos alarm, start with the documented configuration.
Assess the warning output and activation requirements together. Placement and power need to follow the stated limits, and any approval or application claim should be taken only from the documented information for this exact model. The Frequency Bands specification is CN470–510 MHz; EU863–870 MHz; US902–928 MHz; AS923 MHz; AU915–928 MHz; KR920–923 MHz. The dimensions figure is Approx. 86.9 × 86.9 × 26 mm. The SOS Button specification is SOS trigger alarm. The Antenna specification is Built-in LoRa antenna. The Transmission Rate specification is 300 bps–5.4 Kbps.
Applications
Residential homes and assisted-living emergency alert applications
Commercial buildings, banks and hotels
Schools, libraries and exhibition halls
Security desks and personnel emergency notification systems
Product Specifications
| Brand | Winext |
| Model | AN-301 |
| Product Type | LoRaWAN One-Button SOS Alarm |
| SOS Button | SOS trigger alarm |
| Antenna | Built-in LoRa antenna |
| Transmission Rate | 300 bps–5.4 Kbps |
| Frequency Bands | CN470–510 MHz; EU863–870 MHz; US902–928 MHz; AS923 MHz; AU915–928 MHz; KR920–923 MHz |
| Maximum Tx Power | 19 dBm |
| Rx Sensitivity | -141 dBm (SF=12) |
| Operating Temperature | -10 °C to +50 °C |
| Operating Humidity | 10%–95% RH, non-condensing |
| Power Supply | Built-in Li/SOCl2 battery |
| Battery Capacity | 3.6 V / 8000mAh |
| Standby Current | ≤6 µA |
| Rx Current | ≤16 µA |
| Tx Current | ≤125 mA |
| Dimensions | Approx. 86.9 × 86.9 × 26 mm |
Product Features
- One-button SOS trigger sends emergency alarm data wirelessly through a LoRaWAN network to the monitoring platform.
- Available functions include common LoRaWAN regional frequency bands including CN470, EU868, US915, AS923, AU915 and KR920.
- Enabled by Built-in 8000mAh Li/SOCl2 battery: wireless installation without external power wiring.
- Supported by Ultra-low standby current of ≤6 µA: low-power, long-term operation.
- Low-battery monitoring can help maintenance teams identify battery replacement requirements.
- Optional pull-rope and anti-tamper alarm functions extend emergency and security use cases.
- Available functions include parameter configuration from the management platform for deployment and maintenance.
Package Includes
- 1 × AN-301 SOS Button
- 1 × Back Plate
- 4 × Mounting screws (2 long + 2 short, with plastic covers)
- 1 × User Manual
