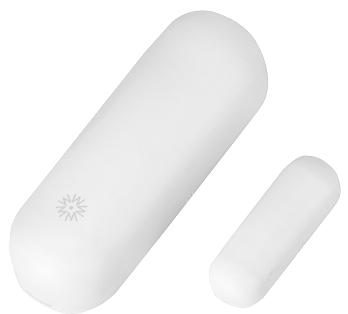

AN-305A LoRaWAN Door/Window Monitor
Low Stock, 1 left
Product Description
AN-305A LoRaWAN Door/Window Monitor is designed for the applications supported by the specifications below. It suits users selecting this exact part by its documented function, connection and physical format. Protocol support is listed as LoRaWAN. The Max Transmit Power specification is 20 dBm. Power is provided through the stated CR123A lithium battery, 3.0 V / 1500mAh arrangement. When choosing this lorawan door/window open-close monitor, start with the documented configuration.
Match the part’s stated requirements to the equipment or assembly you already have. The package list establishes what is supplied, while compatibility and operating conditions should be checked separately when planning the complete installation. The Power Consumption specification is 36 mW. The Frequency Bands specification is CN470 / AS923 / EU868 / US915 / AU915 MHz. The main unit dimensions figure is 88 × 30 × 21 mm. The magnet dimensions figure is 44 × 15 × 12 mm. The Max Receive Sensitivity specification is -141 dBm.
Applications
Door and window security monitoring
Server rooms, factories and logistics warehouses
Archives, museums and restricted-access areas
Product Specifications
| Brand | Winext |
| Model | AN-305A |
| Product Type | LoRaWAN Door/Window Open-Close Monitor |
| Frequency Bands | CN470 / AS923 / EU868 / US915 / AU915 MHz |
| Protocol | LoRaWAN |
| Max Transmit Power | 20 dBm |
| Max Receive Sensitivity | -141 dBm |
| Data Transfer Rate | 300 bps–5.4 Kbps |
| Power Supply | CR123A lithium battery, 3.0 V / 1500mAh |
| Power Consumption | 36 mW |
| Standby Current | 1.5 µA |
| Transmit Current | 125 mA |
| Receive Current | ≤16 mA |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–95% |
| Ingress Protection | IP64 |
| Main Unit Dimensions | 88 × 30 × 21 mm |
| Magnet Dimensions | 44 × 15 × 12 mm |
Product Features
- Detects changes in the magnetic contact state when a protected door or window opens or closes.
- Sends the status event over a LoRaWAN network for remote monitoring and alert workflows.
- Available functions include multiple regional frequency bands: CN470, AS923, EU868, US915 and AU915.
- Low standby current of 1.5 µA can help extend battery-powered operating life.
- Compact two-piece design fits door frames, window frames and equipment cabinets.
- Supported by IP64 housing: reliable operation in indoor and protected industrial environments.
- Use this version for homes, server rooms, factories, logistics warehouses, archives and museums.
Package Includes
- 1 × Winext AN-305A main door/window sensor
- 1 × Magnetic secondary unit
Frequently Asked Questions
What is the AN-305A LoRaWAN Door/Window Monitor used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
