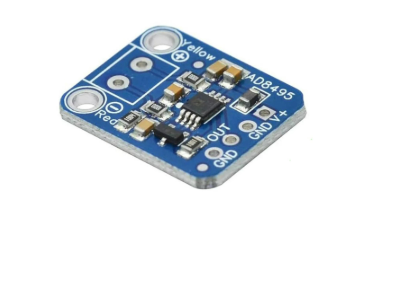

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout
Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout
Low Stock, 1 left
Product Description
The AD8495 Analog Output K-Type Thermocouple Amplifier Breakout is a precision temperature-sensing interface for K-type thermocouples. Based on the AD8495 amplifier, it converts the thermocouple's small signal into a linear analog voltage output that can be read by a microcontroller or data-acquisition system with an analog-to-digital converter (ADC).
Designed for convenient 3.3V or 5V DC operation, the compact breakout features built-in cold-junction compensation for practical temperature measurement in laboratory equipment, industrial monitoring, HVAC systems, ovens and embedded electronics projects. Its voltage output is suitable for Arduino, ESP32, STM32 and other controllers with compatible ADC inputs. Raspberry Pi boards require an external ADC to read the output.
Temperature output ranges: approximately −250°C to +750°C with a 5V supply (0–5V output), or −250°C to +410°C with a 3.3V supply (0–3.3V output), subject to the thermocouple's own temperature rating. Connect only a K-type thermocouple; the thermocouple probe is not included.
Product Specifications
| Product Type | Thermocouple Amplifier Module |
|---|---|
| OEM / Manufacturer | Adafruit |
| Model | AD8495 Breakout |
| Amplifier IC | AD8495 (Analog Devices) |
| Sensor Compatibility | K-Type Thermocouple |
| Operating Voltage | 3.3V–5V DC (supported supply options) |
| Output Type | Linear Analog Voltage |
| Temperature Output Range (5V Supply) | −250°C to +750°C (subject to thermocouple rating) |
| Temperature Output Range (3.3V Supply) | −250°C to +410°C (subject to thermocouple rating) |
| Cold-Junction Compensation | Built-in |
| Interface | Analog Output (ADC required for digital controllers) |
| Application | Temperature Measurement |
| Mounting Type | PCB Breakout Module |
Product Features
- Compatible with standard K-Type thermocouples only
- Precision AD8495 amplifier with built-in cold-junction compensation
- Linear analog output for connection to compatible ADC inputs
- Supports 3.3V and 5V DC power supplies
- Wide temperature output range, subject to thermocouple rating
- Compact breakout board for prototyping and embedded applications
- Suitable for laboratory, industrial and HVAC temperature monitoring

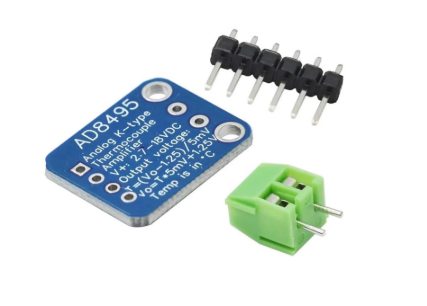

Package Includes
- 1 × Analog Output K-Type Thermocouple Amplifier – AD8495 Breakout
- 1 × Header Pin
- 1 × 2-Pin Straight PCB Screw Terminal Block
Frequently Asked Questions
What is the Analog Output K-Type Thermocouple Amplifier AD8495 Breakout used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Sensor compatibility: K-Type thermocouple
- Amplifier IC: AD8495
- Operating voltage: 3.3V or 5V DC
- Output type: linear analog voltage
- Temperature output range at 5V: −250°C to +750°C
- Temperature output range at 3.3V: −250°C to +410°C
