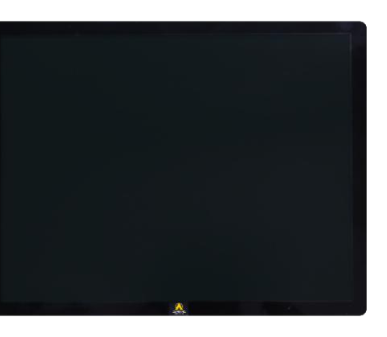

AT-08-19CT - 19" Industrial Full HD LED Display
AT-08-19CT - 19" Industrial Full HD LED Display
Lead Time
Product Description
AT-08-19CT - 19" Industrial Full HD LED Display is designed for adding a screen to the compatible host equipment. It suits projects that need information visible at the device, with screen and connection details guiding the choice. It accepts 12VDC at the specified input. The Maximum Power specification is 15 W. The Maximum Resolution specification is 1280 × 1024. When choosing this 19-inch industrial led touch display, start with the documented configuration. Check the screen’s physical fit as well as the host connection. Where touch input is specified, it offers an input option alongside the display; drivers and host requirements still need to match. The dimensions figure is 417.36 (W) × 342.41 (H) × 57 (D) mm approx. The Mounting specification is VESA Mount. The Display Type specification is LED. The display size figure is 19 inches. The Contrast Ratio specification is 1000:1 (Typ.).
Product Specifications
| Brand | Avyanna Tech |
|---|---|
| Model | AT-08-19CT |
| Product Type | 19-inch Industrial LED Touch Display |
| Display Type | LED |
| Display Size | 19 inches |
| Maximum Resolution | 1280 × 1024 |
| Contrast Ratio | 1000:1 (Typ.) |
| Maximum Colors | 16.7 million colors |
| Backlight MTBF | 50,000 hours |
| Display Mode | Normally Black |
| Viewing Angle | 170° / 160° |
| Luminance | Minimum 250 cd/m² |
| Touchscreen | Capacitive Touch (USB interface) |
| External I/O | 1 × USB 2.0, 1 × HDMI, 1 × DP, 1 × VGA |
| Power Input | 12VDC |
| Maximum Current | 0.5 A (Typ.) |
| Maximum Power | 15 W |
| Dimensions | 417.36 (W) × 342.41 (H) × 57 (D) mm approx. |
| Weight | Approx. 3 kg in detailed specification table; page 1 overview states approx. 4 kg |
| Mounting | VESA Mount |
| External Finish | Black |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Humidity | 5% to 95% RH, non-condensing @ 40°C |
| Ingress Protection | IP65 – Front panel certified |
| Certification | CE, FCC – Certified |
| Country of Origin | India |
Product Features
- Supported by 19-inch LED panel: 16.7 million colors, normally-black display mode and a 50,000-hour backlight MTBF.
- Capacitive touch interface connects through USB for operator interaction and industrial HMI applications.
- External video interfaces include 1 × HDMI, 1 × DisplayPort and 1 × VGA, along with 1 × USB 2.0.
- Wide 170°/160° viewing angle and minimum 250 cd/m² luminance support visibility across varied industrial installations.
- VESA mounting and black industrial enclosure support panel, machine and equipment integration.
- Front panel is IP65 certified for improved protection against dust and water ingress.
- CE and FCC certifications are stated in the OEM datasheet.
Package Includes
- 1 × AT-08-19CT Industrial Display
- 1 × AC Power Cable, 1 m
- 4 × Mounting Screws
- 1 × User Manual
Frequently Asked Questions
What is the AT-08-19CT - 19" Industrial Full HD LED Display used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
