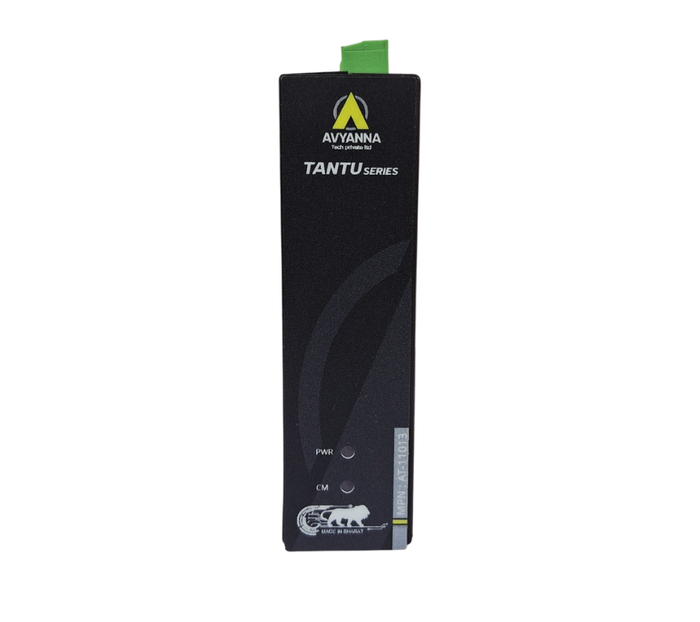

AT-11013 8-ch Analog Input with Modbus RTU- (Current)
Low Stock, 1 left
Product Description
AT-11013 / AT-11023 – 8-Channel Analog Input Module with Modbus RTU
AT-11013 8-ch Analog Input with Modbus RTU- (Current) is designed for linking field signals or loads with compatible control equipment. It suits monitoring and automation work that needs the documented channel types rather than a general-purpose connection board. Supported Protocol support is listed as Modbus RTU. Serial Interface support is listed as RS-485, 2-wire D+, D-, GND.
It accepts 9–36 VDC at the specified input. When choosing this 8-channel analog input remote i/o module, start with the documented configuration. Match each signal or contact requirement to the field equipment. Channel count, communication, supply and isolation describe separate constraints; use the stated configuration information when planning the complete control system. The Power Consumption specification is 1.2 W @ 24 VDC.
The Power Isolation for RS-485 specification is 1.5 kV galvanic. The Analog Input Channels specification is 8. The Independent Channel Configuration specification is Yes. The Input Ranges specification is 0–5 V / 0–10 V / 0–20 mA / 4–20 mA.
Applications
- Industrial Process Control
- Remote Monitoring Systems
- Building Management Systems (BMS)
- Energy and Utility Monitoring
- Energy Management
Applications
Product Specifications
| Manufacturer | Avyanna Tech |
| Model | AT-11013 (Current) |
| Product Type | 8-Channel Analog Input Remote I/O Module |
| Supported Protocol | Modbus RTU |
| Serial Interface | RS-485, 2-wire D+, D-, GND |
| Analog Input Channels | 8 |
| Independent Channel Configuration | Yes |
| Input Type | Voltage / Current |
| Input Ranges | 0–5 V / 0–10 V / 0–20 mA / 4–20 mA |
| Resolution | 12 bit |
| Accuracy | Voltage: ±0.1% or better; Current: ±0.2% or better |
| Sampling Rate | 10 samples/second total |
| Input Protection | Built-in TVS/ESD protection |
| Operating Voltage | 9–36 VDC |
| Power Consumption | 1.2 W @ 24 VDC |
| RS-485 Data Direction Control | ADDC (Automatic Data Direction Control) |
| Baud Rate | Custom; default 115200 |
| RS-485 Terminating Resistor | 120 Ω |
| Power Isolation for RS-485 | 1.5 kV galvanic |
| Galvanic Isolation | 2.5 kV |
| Mounting | DIN rail |
| Material | Mild steel with powder coating |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 70°C |
| Operating Humidity | 20–95% RH |
| Certification | RoHS |
Product Features
- 8 Independent Analog Inputs:Each channel can be configured independently for voltage or current measurement.
- Multiple Input Ranges:Available functions include 0–5 V, 0–10 V, 0–20 mA and 4–20 mA signals.
- High-Precision Acquisition:12-bit resolution with voltage accuracy of ±0.1% or better and current accuracy of ±0.2% or better.
- Industrial RS-485:Modbus RTU communication with ADDC automatic data-direction control, configurable baud rate and 120 Ω termination.
- Electrical Protection:Built-in TVS/ESD protection and galvanic isolation for robust industrial deployment.
- Wide DC Supply:Operates from 9–36 VDC with typical power consumption of 1.2 W at 24 VDC.
- Industrial Enclosure:DIN-rail mounting in a mild-steel, powder-coated enclosure.
