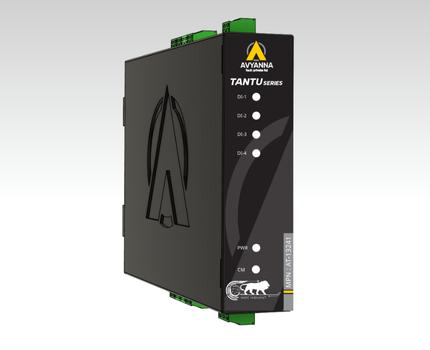

AT-13241 4 Analog Output - 4 Digital Input with Modbus RTU
Back to previous page
Low Stock, 1 left
Product Description
AT-13241 4 Analog Output - 4 Digital Input with- Modbus RTU is designed for linking field signals or loads with compatible control equipment. It suits monitoring and automation work that needs the documented channel types rather than a general-purpose connection board.
When choosing this industrial i/o module, start with the documented configuration. Match each signal or contact requirement to the field equipment.
Applications
Remote I/O Monitoring
Industrial Process Control
Industrial Automation
PLC and SCADA Integration
Remote Equipment Control
Building Automation
Product Specifications
| General | |
| Watchdog Timer | System (2 seconds) and communication |
| Configuration Tool | Serial Configuration Utility |
| Connectors | 2 × plug-in terminal blocks (14–22 AWG) |
| Communications | |
| Interface | RS-485 |
| Supported Protocols | Modbus RTU |
| Digital Input | |
| Channels | 4 |
| Isolation Voltage | 5000 Vrms |
| Logic Level 1 | Min. 6 V |
| Logic Level 0 | Max. 5 V |
| Input Type | Sinking |
| Grouping | 4 + common, separate for each DI |
| Maximum Input Current | 10 mA per input |
| Analog Output | |
| Channels | 4 |
| Output Type | Voltage / Current |
| Output Range | 0–5 V / 0–10 V / 0–20 mA / 4–20 mA |
| Resolution | 12-bit |
| Power Requirements | |
| Input / Operating Voltage | 9–36 VDC |
| Power Consumption | 1.2 W @ 24 VDC |
| Environment | |
| Galvanic Isolation | 2.5 kV |
| Operating Temperature | 0°C to 60°C |
| Standards and Certifications | |
| Standard | RoHS |
Product Features
- 4AO/4DI Modbus RS-485 Remote I/O
- Modbus RTU protocol
- 2.5 kV galvanic isolation
- Compact DIN-rail mountable design
Package Includes
- 1 × AT-13241 4 Analog Output - 4 Digital Input with- Modbus RTU (device only; verify optional accessories against purchase order)
Frequently Asked Questions
What is the AT-13241 4 Analog Output - 4 Digital Input with- Modbus RTU used for?
What are its main features?
What specifications should I check before choosing this product?
How should I prepare this product for use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are shipped within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are shipped within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 4 analog output channels (voltage/current)
- 4 isolated sinking digital input channels
- Modbus RTU protocol over RS-485
- Compact DIN-rail mountable design
- RS-485 Automatic Data Direction Control (ADDC)
