AT-13433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus RTU

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Low Stock, 1 left

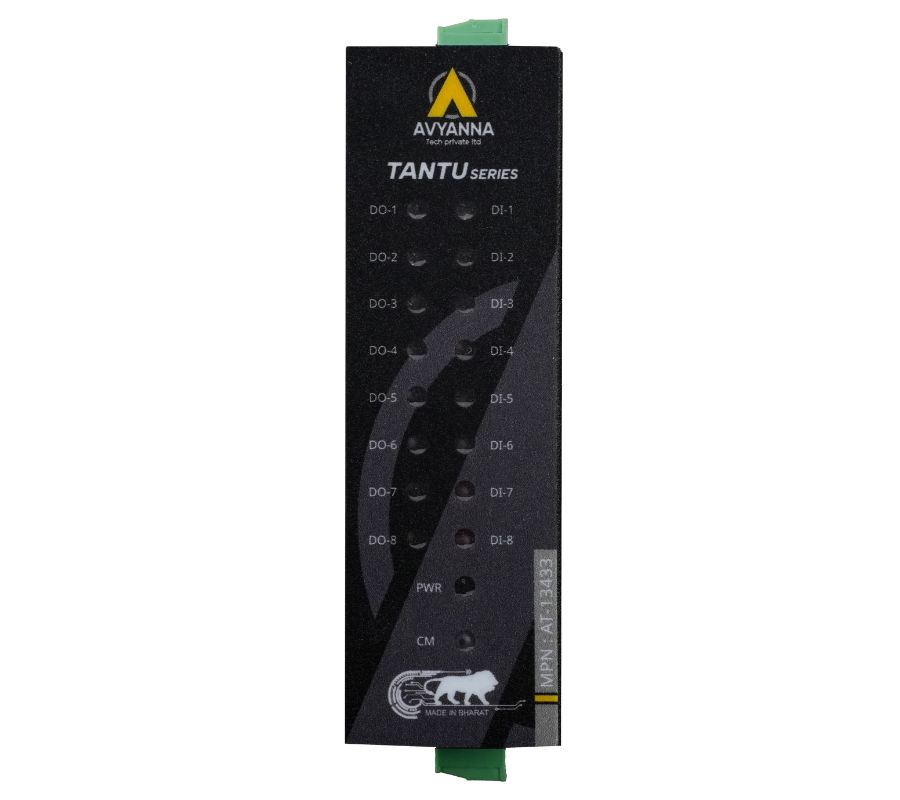

AT-13433 8 digital input and 8 digital relay output Modbus RTU module
  • AT-13433 8 digital input and 8 digital relay output Modbus RTU module

Product Description

AT-13433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus RTU is designed for linking field signals or loads with compatible control equipment. It suits monitoring and automation work that needs the documented channel types rather than a general-purpose connection board. Interface support is listed as RS-485. Protocol support is listed as Modbus RTU. It accepts 9–36 VDC at the specified input. When choosing this industrial i/o module, start with the documented configuration. Match each signal or contact requirement to the field equipment. Channel count, communication, supply and isolation describe separate constraints; use the stated configuration information when planning the complete control system. AgSnO2, AgNi is specified for the contact material. The Digital Inputs specification is 8. The Input Type specification is Sinking. The Input Isolation specification is 5000 Vrms. The Logic Level 1 specification is Min. 6 V.

Applications

Industrial Automation Remote Monitoring & Control Process Monitoring Edge Data Acquisition

Product Specifications

InterfaceRS-485
ProtocolModbus RTU
Digital Inputs8
Input TypeSinking
Input Isolation5000 Vrms
Logic Level 1Min. 6 V
Logic Level 0Max. 5 V
Max. Input Current10 mA per input
Relay Outputs8
Relay Type1 Form A (SPDT)
Contact MaterialAgSnO2, AgNi
Contact Rating5 A, 250 VAC / 30 VDC
Output Isolation1500 VDC
Galvanic Isolation2.5 kV
Operating Temperature0°C to 60°C
Input Voltage9–36 VDC
CertificationRoHS

Product Features

  1. Isolated digital input monitoring
    Eight sinking digital inputs provide 5000 Vrms isolation, with logic level 1 at minimum 6 V, logic level 0 at maximum 5 V, and up to 10 mA input current per channel.
  2. Industrial relay output control
    Eight relay outputs provide 1 Form A (SPDT) contacts rated at 5 A at 250 VAC / 30 VDC, with 1500 VDC output isolation and long mechanical and electrical operating life.
  3. RS-485 Modbus RTU integration
    Supported by RS-485 communication with Modbus RTU and Automatic Data Direction Control (ADDC): reliable industrial integration in a compact DIN-rail module.

Frequently Asked Questions

What is the AT-13433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus RTU used for?
The AT-13433 is a compact industrial Modbus RTU remote I/O module combining 8 isolated sinking digital inputs and 8 digital relay outputs for monitoring and control applications. It communicates through RS-485 with Automatic Data Direction Control (ADDC), supports DIN-rail mounting, and is designed for industrial automation, remote monitoring, building management, factory automation and equipment control.
What are its main features?
8-channel digital input / 8-channel digital relay output; Modbus RTU protocol; Compact DIN-rail mountable design; RS-485 Automatic Data Direction Control (ADDC).
What are the power or battery requirements?
Input Voltage: 9–36 VDC. Match the supply or charger to these specifications before connecting the product.
Which interfaces or communication protocols does it use?
Interface: RS-485; Protocol: Modbus RTU. Check that your host, gateway or controller supports the listed interface and required configuration.
What is included in the package?
A package-content list is not specified for AT-13433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus RTU. Confirm the supplied quantity and any required cables, power supplies, batteries or mounting accessories before ordering.

Other Information

Suggested uses include Industrial Automation, Remote Monitoring Systems, Building Management Systems (BMS), Factory Automation and Industrial Equipment Control.
