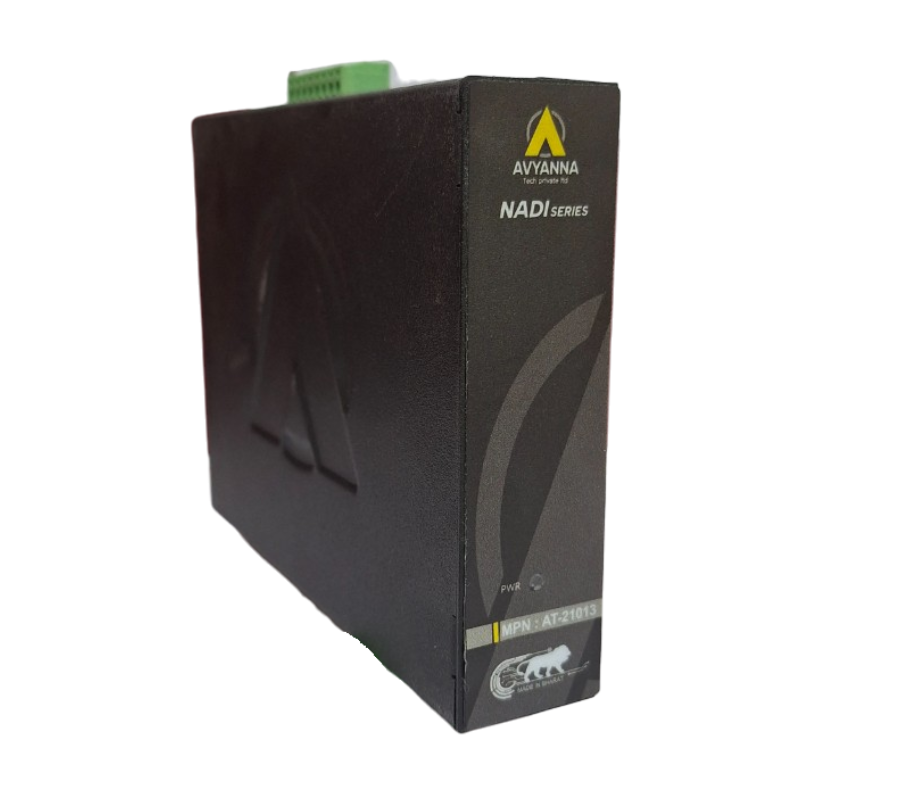

AT-21013 8-ch Analog Input with Modbus TCP- (Current)
Low Stock, 5 left
Product Description
AT-21013 / AT-21023 – 8-Channel Analog Input Module with Modbus TCP
The AT-21013 (Current) and AT-21023 (Voltage) are high-performance 8-channel Analog Input Modules designed to provide reliable and accurate signal acquisition over Modbus TCP networks. These modules are ideal for industrial automation, process monitoring, and remote data acquisition applications.
Built for flexibility and precision, the AT-21013 and AT-21023 support multiple input ranges including 0–5V, 0–10V, 0–20mA, and 4–20mA, with 12-bit resolution for accurate analog-to-digital conversion. The modules feature web-based configuration and Ethernet utility tools for simple setup and integration into existing systems.
With robust Ethernet communication, watchdog timers, and status indicators, these modules support dependable data transmission. Designed for DIN-rail mounting, they provide industrial reliability and ease of installation.
Applications
- Industrial Process Control
- Remote Monitoring Systems
- Building Management Systems (BMS)
- Energy and Utility Monitoring
- Data Acquisition in Manufacturing
Applications
Product Specifications
| Manufacturer | Avyanna Tech |
| Model / MPN | AT-21013 (Current) |
| Product Type | 8-Channel Analog Input Module |
| Analog Inputs | 8 channels |
| Input Type | Voltage / Current |
| Input Range | 0–5 V / 0–10 V / 0–20 mA / 4–20 mA |
| Resolution | 12 Bit |
| Protocol | Modbus TCP |
| Ethernet Interface | RJ-45 Female |
| Ethernet Speed | 10/100 Mbit/s |
| Network Protocols | MODBUS TCP, TCP/IP, HTTP, DHCP, DNS, UDP, ARP |
| Ethernet Ports | 1 |
| Configuration | Web Server & Ethernet Utility |
| Watchdog | 2-second system & communication watchdog |
| Operating Voltage | 9–36 VDC |
| Power Consumption | 4.2 W @ 12 V / 4.8 W @ 24 V |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 20–95% RH |
| Mounting | DIN Rail |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- 8-Channel Analog Input: Eight analog input channels for current or voltage signal acquisition.
- Multiple Input Ranges: Supports 0–5 V, 0–10 V, 0–20 mA and 4–20 mA signals.
- 12-Bit Resolution: Accurate analog-to-digital conversion for industrial monitoring.
- Modbus TCP Ethernet: 10/100 Mbit/s RJ-45 Ethernet with Modbus TCP communication.
- Network Protocol Support: MODBUS TCP, TCP/IP, HTTP, DHCP, DNS, UDP and ARP.
- Remote Configuration: Web server configuration and Ethernet utility for setup and integration.
- Watchdog Protection: 2-second system and communication watchdog support.

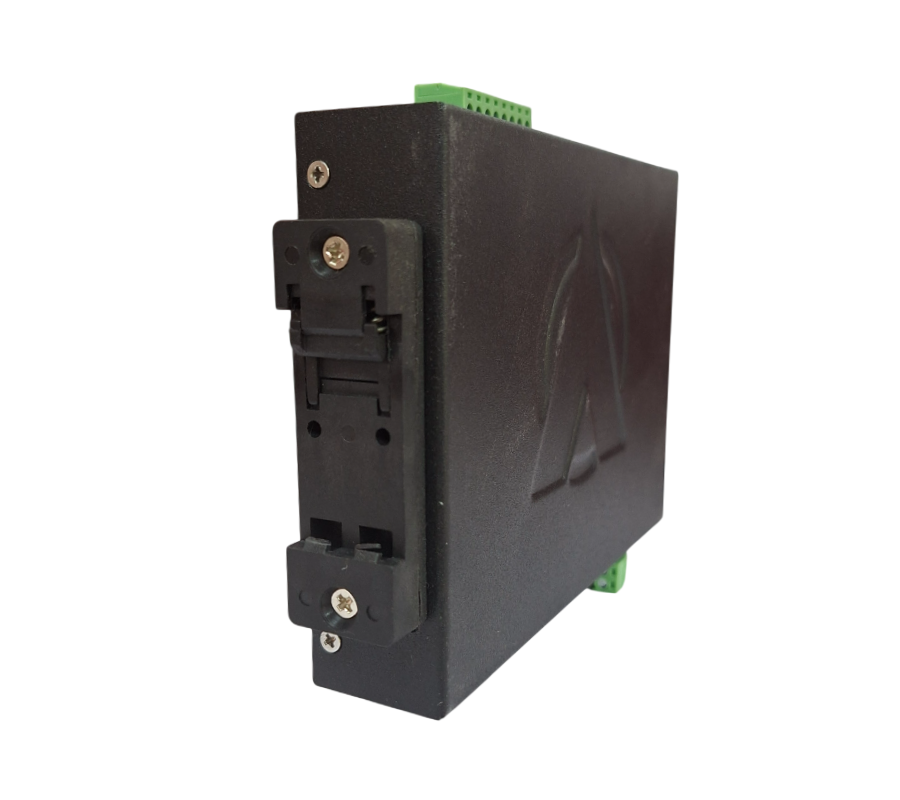

- Industrial Installation: Compact DIN-rail mountable design for control panels and remote I/O applications.
Other Information
Country of Origin: India
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8-channel analog input (voltage or current)
- Protocols: MODBUS TCP
- Watchdog Timer System (2 second) & Communication
- Configuration Tool: Web server & Ethernet Utility
- Compact DIN-rail mountable design
