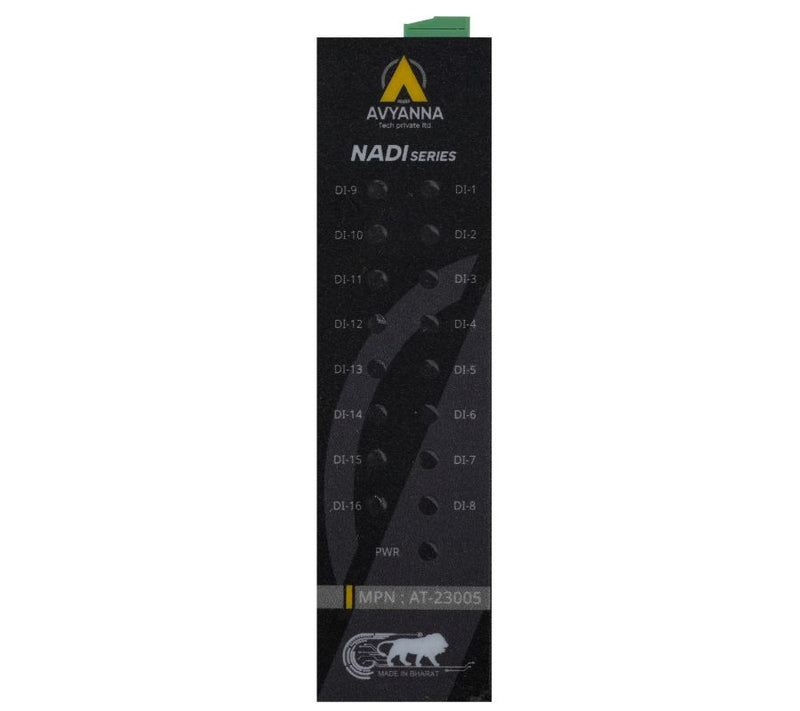

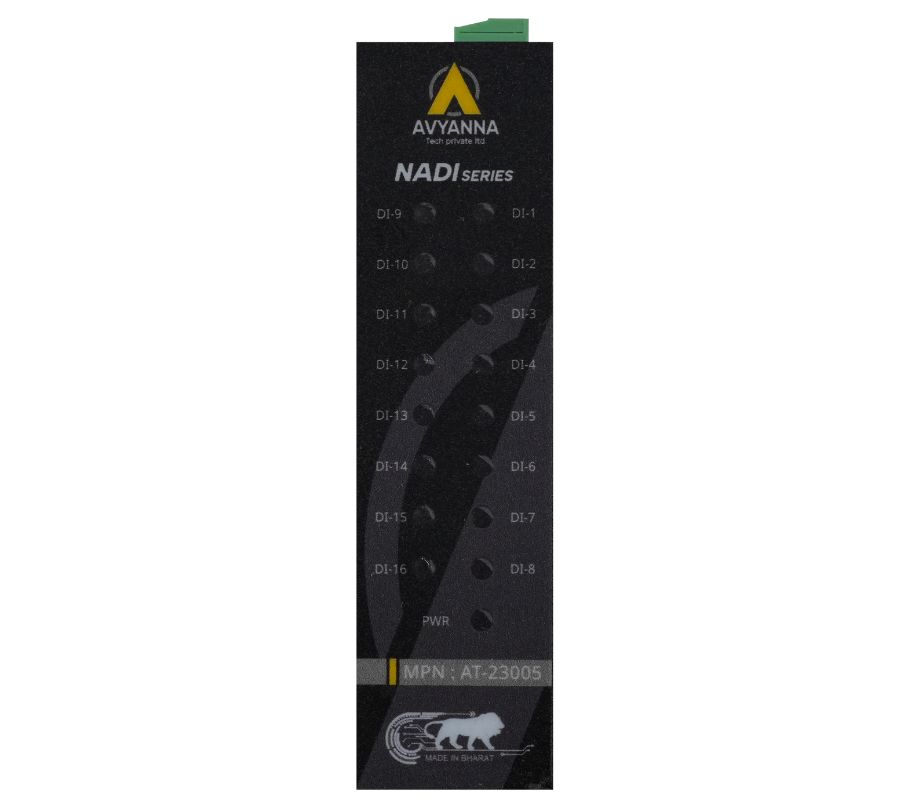

AT-23005 – 16 Digital Input Module with Modbus TCP
Low Stock, 1 left
Product Description
The Avyanna Tech AT-23005 is a 16-channel digital-input module for Ethernet-based industrial data acquisition. It collects multiple sinking-type digital field signals and communicates with compatible supervisory controllers over Modbus TCP.
Key functions include 16 sinking-type digital input channels; 5000 Vrms input isolation; modbus TCP over 10/100 Mbit/s Ethernet. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Product Specifications
| General | |
|---|---|
| Brand | Avyanna Tech |
| Model | AT-23005 |
| Product Type | 16-Channel Digital Input Module |
| I/O & Signal Performance | |
| Digital Input Channels | 16 |
| Input Type | Sinking |
| Logic Level 1 | Minimum 6 V |
| Logic Level 0 | Maximum 5 V |
| Connectivity & Configuration | |
| Supported Protocol | Modbus TCP |
| Network Protocols | Modbus TCP, TCP/IP, HTTP, DHCP, DNS, UDP, ARP |
| Ethernet Ports | 1 |
| Ethernet Interface | RJ-45 Female, 10/100 Mbit/s |
| Full Duplex | IEEE 802.3x flow control |
| Half Duplex | CSMA/CD protocol |
| Configuration | Web server & Ethernet Utility |
| Watchdog Timer | System (2 second) & Communication |
| Power & Protection | |
| Input Isolation Voltage | 5000 Vrms |
| Input Current | Up to 10 mA per channel |
| Operating Voltage | 9–36 VDC |
| Physical & Environmental | |
| Mounting | DIN Rail |
| Enclosure | Mild steel |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 70°C |
| Operating Humidity | 20–95% RH |
| Compliance & Origin | |
| Certification | RoHS |
Product Features
- 16 digital input channels for industrial field-signal acquisition is provided by the unit.
- Operation is based on sinking-type inputs with 5000 Vrms isolation for robust electrical-noise protection.
- Available functions include Modbus TCP together with TCP/IP, HTTP, DHCP, DNS, UDP and ARP over Ethernet.
- one RJ-45 10/100 Mbit/s Ethernet interface with full- and half-duplex operation is provided by the unit.
- Available functions include a 9–36 VDC operating supply for industrial control-panel installations.
- Web server and Ethernet Utility simplify configuration and diagnostics.
- DIN-rail mounting and a mild-steel enclosure support consistent industrial deployment.
Package Includes
- 1 × Avyanna Tech AT-23005 16-Channel Digital Input Module
Power supplies, cables and optional accessories are included only if specified in the order.
Frequently Asked Questions
What is the AT-23005 – 16 Digital Input Module with Modbus TCP used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 16 sinking digital-input channels
- 5000 Vrms input isolation
- Modbus TCP via 10/100 Mbps Ethernet
- Web server and Ethernet utility setup
- DIN-rail mounting with 9–36 VDC supply
SKU: 2EEN20170
₹ 17,400.00
