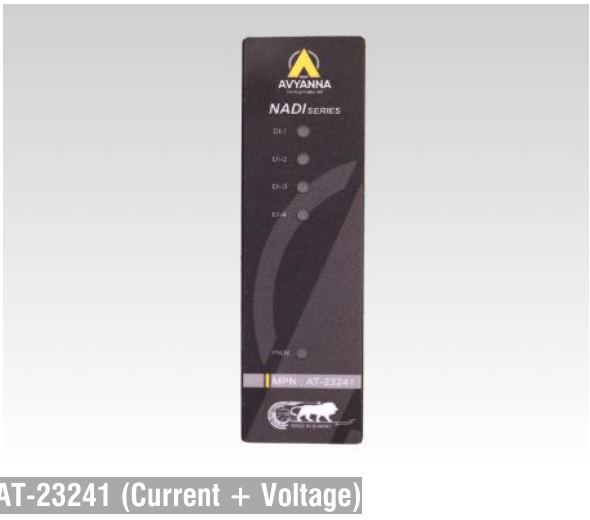

AT-23241 4 Analog Output - 4 Digital Input with- Modbus TCP (Current + Voltage)
AT-23241 4 Analog Output - 4 Digital Input with- Modbus TCP (Current + Voltage)
Low Stock, 1 left
Product Description
The Avyanna Tech AT-23241 is an Ethernet remote I/O module combining four analog outputs and four digital inputs. Its 12-bit analog outputs provide configurable voltage or current ranges while isolated sinking digital inputs support simultaneous field-state monitoring.
Key functions include 4 analog output channels and 4 digital inputs; 0–5 V / 0–10 V / 0–20 mA / 4–20 mA analog outputs; 12-bit analog output resolution. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Product Specifications
| General | |
|---|---|
| Model | AT-23241 |
| Product type | Industrial Ethernet remote I/O module |
| I/O & Signal Performance | |
| Analog outputs | 4 |
| Analog output ranges | 0–5 V, 0–10 V, 0–20 mA, 4–20 mA |
| Analog output resolution | 12 bit |
| Digital inputs | 4, sinking type |
| Digital input isolation | 5000 Vrms |
| Digital input common | Separate common connection for each input |
| Connectivity & Configuration | |
| Ethernet | 10/100 Mbit/s RJ-45 |
| Protocol | Modbus TCP |
| Watchdog timer | 2 seconds |
| Configuration | Web server / Ethernet Utility |
| Power & Protection | |
| Input current | Up to 10 mA per channel |
| Supply voltage | 9–36 VDC |
| Physical & Environmental | |
| Indicators | Status / communication indicators |
| Mounting | DIN rail |
| Enclosure | Mild-steel, powder-coated |
Product Features
- Flexible analog control: Four analog output channels support 0–5 V, 0–10 V, 0–20 mA and 4–20 mA ranges with 12-bit resolution for industrial control applications.
- Isolated digital monitoring: Four sinking digital inputs provide 5000 Vrms isolation, separate common connections and up to 10 mA input current per channel.
- Industrial Ethernet integration: 10/100 Mbit/s RJ-45 Ethernet with Modbus TCP, web-server and Ethernet Utility configuration, a 2-second watchdog and DIN-rail mounting support consistent deployment.
Package Includes
- 1 × Avyanna Tech AT-23241 4AO/4DI Ethernet I/O Module
Power supplies, cables and optional accessories are included only if specified in the order.
Frequently Asked Questions
What is the AT-23241 4 Analog Output - 4 Digital Input with- Modbus TCP (Current + Voltage) used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 4 analog outputs and 4 digital inputs
- 0–5 V / 0–10 V / 0–20 mA / 4–20 mA outputs
- 12-bit analog output resolution
- 5000 Vrms isolation on digital inputs
- Modbus TCP Ethernet interface
