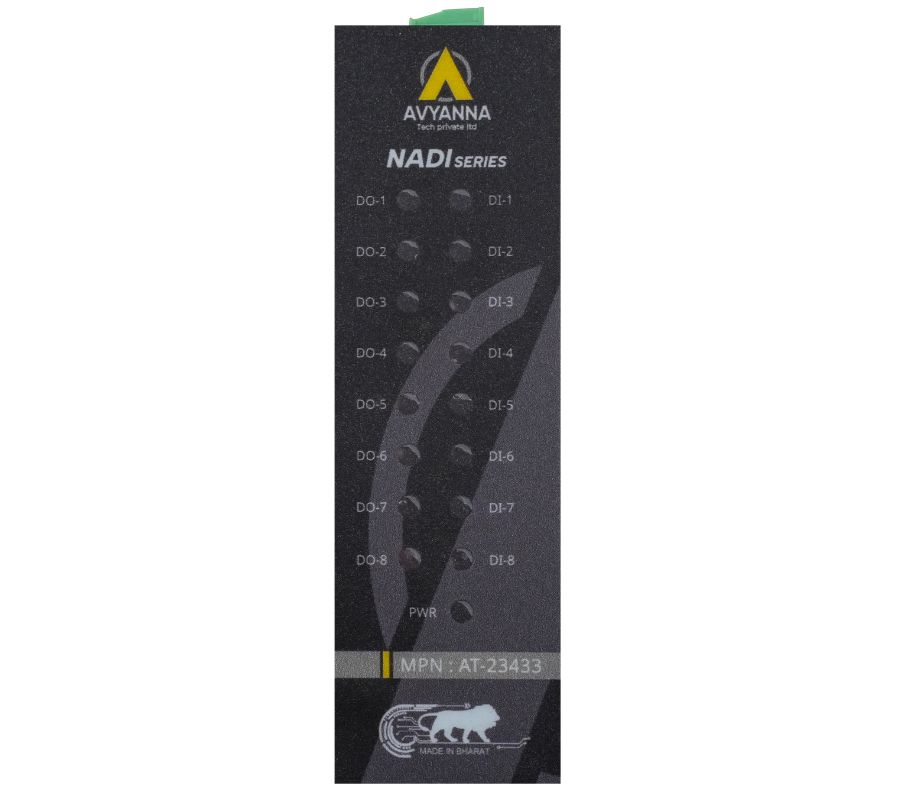

AT-23433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus TCP
AT-23433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus TCP
Low Stock, 1 left
Product Description
The Avyanna Tech AT-23433 is an industrial Ethernet remote I/O module with eight digital inputs and eight relay outputs. The sinking digital inputs and relay switching outputs let compatible Modbus TCP systems monitor field contacts and operate connected loads.
Key functions include 8 sinking digital inputs and 8 relay outputs; 5000 Vrms digital-input isolation; 5 A relay contact rating at 250 VAC / 30 VDC. Check the product specifications for supported electrical, interface, installation and operating requirements before selecting equipment for your system.
Applications
Product Specifications
| General | |
|---|---|
| Manufacturer | Avyanna Tech |
| Model | AT-23433 |
| Product Type | 8 Digital Input & 8 Digital Relay Output Module |
| I/O & Signal Performance | |
| Digital Inputs | 8 channels |
| Input Type | Sinking |
| Logic Level 1 | Minimum 6 V |
| Logic Level 0 | Maximum 5 V |
| Digital Outputs | 8 relay outputs |
| Relay Type | 1 Form A (SPDT) |
| Contact Material | AgSnO2, AgNi |
| Contact Rating | 5A @ 250 VAC / 30 VDC |
| Connectivity & Configuration | |
| Network Protocols | Modbus TCP, TCP/IP, HTTP, DHCP, DNS, UDP, ARP |
| Ethernet Interface | 1 × RJ-45 Female, 10/100 Mbit/s |
| Full Duplex | IEEE 802.3x flow control |
| Half Duplex | CSMA/CD protocol |
| Power & Protection | |
| Input Isolation Voltage | 5000 Vrms |
| Physical & Environmental | |
| Mounting | DIN Rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 70°C |
| Operating Humidity | 20–95% RH |
| Compliance & Origin | |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- 8 Digital Inputs:Eight sinking-type digital input channels for industrial signal monitoring.
- 8 Relay Outputs:Eight relay output channels for AC/DC load switching.
- High Isolation:Digital input isolation rated at 5000 Vrms.
- Relay Contact Rating:5A @ 250 VAC / 30 VDC.
- Industrial Ethernet:Modbus TCP communication over 10/100 Ethernet.
- Remote Configuration:Web server and Ethernet Utility for setup and diagnostics.
- Watchdog Protection:2-second system and communication watchdog.
- DIN-Rail Mounting:Compact industrial enclosure for control-panel installation.
Package Includes
- 1 × Avyanna Tech AT-23433 8DI/8 Relay Output Module
Power supplies, cables and optional accessories are included only if specified in the order.
Frequently Asked Questions
What is the AT-23433 – 8 Digital Input & 8 Digital Relay Output Module with Modbus TCP used for?
What are its main features?
What specifications should I check before choosing this product?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Country of Origin: India
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8 sinking digital inputs and 8 relay outputs
- 5000 Vrms digital-input isolation
- 5 A relay contact rating at 250 VAC / 30 VDC
- Modbus TCP Ethernet connectivity
- DIN-rail mounting
