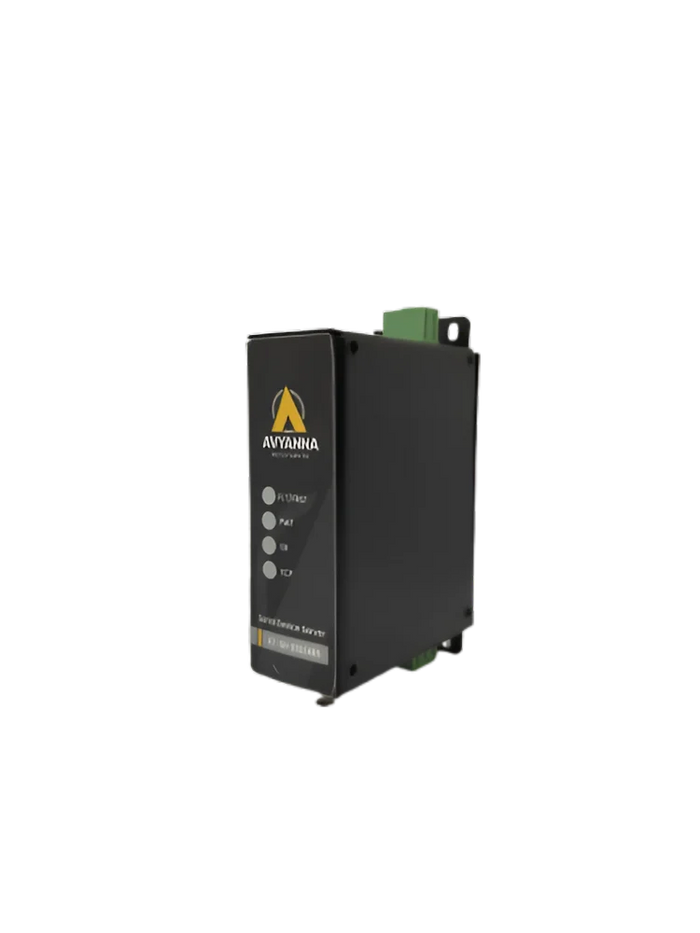

AT-44T – 4-Port RS-232/422/485 Serial Device Server
Low Stock, 5 left
Product Description
Avyanna AT-4xT Series Serial Device Servers
The Avyanna AT-4xT Series (models AT-41T, AT-42T, and AT-44T) are rugged and versatile serial device servers designed to connect RS-232/422/485 serial devices to Ethernet networks. Supporting 1, 2, or 4 serial ports respectively, these devices offer flexible serial communication with software-selectable port types, baud rates, and standard serial settings for seamless integration.
Built for industrial environments, the series features metal enclosures with DIN-rail mounting, IP54 protection, and robust electrical isolation (up to 2.5 kV galvanic or optical isolation), ensuring reliable operation even under harsh conditions. The servers support multiple operation modes including VCOM, TCP/UDP server-client, and Telnet, providing versatile connectivity options.
Each serial port can support up to 10 simultaneous TCP connections in server mode, making these units ideal for multi-client industrial automation setups. Comprehensive LED indicators provide clear status feedback for power, communication, and network activity.
Applications
- Industrial Automation
- Remote Equipment Management
- Building Management Systems (BMS)
- SCADA Systems
- Transportation & Utilities
Applications
Product Specifications
| Manufacturer | Avyanna Tech |
| Model / MPN | AT-44T |
| Product Type | 4-Port RS-232/422/485 Serial Device Server |
| Ethernet | 1 × 10/100Base-T |
| Ethernet Protection | Built-in 1.5 kVDC magnetic isolation |
| Serial Interfaces | RS-232/422/485, software selectable |
| Serial Ports | 4 |
| Serial Connector | DB9 & Terminal Block |
| Data Bits | 8, 9 (including parity) |
| Stop Bits | 1 or 2 |
| Configuration | Windows Utility, Web-based |
| Operation Modes | VCOM, TCP Server/Client, UDP Server/Client, Telnet |
| Protocols | ICMP, ARP, DHCP, UDP, TCP/IP, IPv4, HTTP, Modbus TCP/IP |
| MODBUS Integration | Modbus TCP and Modbus RTU/ASCII |
| TCP Connections | Up to 10 simultaneous connections per serial port in server mode |
| Serial Signal Protection | Built-in 8-kV ESD protection |
| Supply Voltage | 9–36 VDC |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 20%–95% RH |
| Mounting | DIN-rail |
| Enclosure | Metal |
| IP Rating | IP54 |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- Flexible Serial Interfaces: Software-selectable RS-232/422/485-2-wire/485-4-wire communication across four serial ports.
- Industrial Ethernet: 1 × 10/100Base-T Ethernet port for serial-to-Ethernet connectivity.
- Protocol Integration: Supports Modbus TCP and Modbus RTU/ASCII network integration.
- Multiple Operating Modes: VCOM, TCP Server/Client, UDP Server/Client and Telnet support.
- Multi-Client Connectivity: Up to 10 simultaneous TCP connections per serial port in server mode.
- Industrial Protection: Built-in 8-kV ESD protection for serial signals and 1.5 kVDC magnetic isolation on Ethernet.
- Easy Configuration: Windows utility and web-based configuration tools.
- DIN-Rail Installation: Rugged metal enclosure designed for industrial DIN-rail mounting.
Other Information
Country of Origin: India
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Software-selectable RS-232/422/485-2w/485-4w communication
- 1 x 10/100 Mbps Ethernet port
- Integrates Modbus TCP and Modbus RTU/ASCII networks
- Built-in 8-kV ESD protection for all serial signals
SKU: 2EEN20171
₹ 22,200.00
Bulk orders or B2B inquiries? Email us →
Lead time
| Quantity | Dispatch |
|---|---|
| 1-10 units |
1 to 3 days (metro cities) 3 to 7 days (others location) |
| >10 units | To be negotiated |
