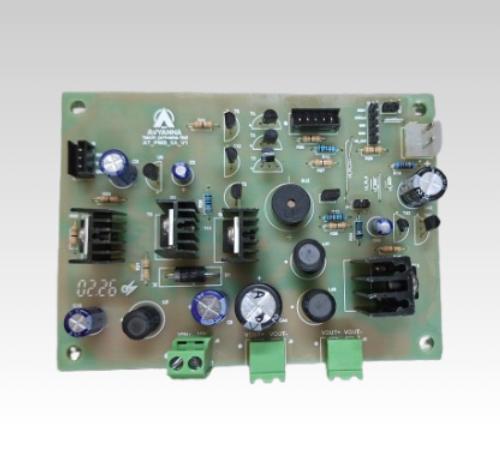

AT-PMB - Power Management Board
Lead Time
Product Description
AT-PMB - Power Management Board is designed for the power-conversion or regulation task specified below. It suits a build where the available source and the equipment’s required supply need to be matched. Supported Protocol support is listed as RS232. It accepts 12 V DC-DC at the specified input. The Battery Backup specification is 14.8 V, 5000 mAh. When choosing this power management board, start with the documented configuration. Assess input, output and load requirements together. An adjustable supply needs its setting checked against the connected circuit, while any stated cooling or wiring conditions remain part of the installation. The Power Consumption specification is 60 W. The Power Connector specification is 2 Pin Green Header. The pmb pcb dimensions figure is 119 x 180 mm. The pmb led pcb dimensions figure is 19 x 105 mm. The dc-dc converter dimensions figure is 66 x 37 mm.
Applications
Product Specifications
| Brand | Avyanna Tech |
|---|---|
| Model | AT-PMB |
| Product Type | Power Management Board |
| Power Input | 12 V DC-DC |
| Battery Backup | 14.8 V, 5000 mAh |
| Power Consumption | 60 W |
| Power Connector | 2 Pin Green Header |
| Protection | Reverse Battery Polarity |
| LED Indicators | PWR, HDD, SMPS, Overload, Low Battery, Battery Charging |
| Supported Protocol | RS232 |
| Serial Ports | 1 |
| Serial Connector | 3 Pin Relimate |
| Data Bits | 8 |
| Stop Bits | 1 |
| Parity | None |
| Baud Rate | 2400 |
| PMB PCB Dimensions | 119 x 180 mm |
| PMB LED PCB Dimensions | 19 x 105 mm |
| DC-DC Converter Dimensions | 66 x 37 mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | 0°C to 85°C |
| Operating Humidity | 20% to 95% RH |
| Certification | RoHS |
| Country of Origin | India |
Product Features
- Use this version for reliable power control and monitoring in embedded and industrial systems.
- Available functions include a 12 V DC input together with a 14.8 V, 5000 mAh battery backup for continuity during power interruptions.
- dedicated LED indications for PWR, HDD, SMPS, overload, low battery and battery charging status is provided by the unit.
- The supplied design incorporates one RS232 port using a 3-pin Relimate connector with 2400 baud, 8 data bits, no parity and 1 stop bit.
- Available functions include SMPS-only, battery-only and combined SMPS + battery operating conditions with 12 V load output.
- Supported by Combined operation: load current up to 4.9 A; around 5 A is indicated as overload.
- Reverse battery polarity protection improves power-system safety.
Package Includes
- 1 × AT-PMB Power Management Board
