B014 Flex Tag

Name: B014 Flex Tag
Brand: Lansitec
Availability: InStock

No reviews yet

Lansitec

China

11 products

Lead Time

Product Description

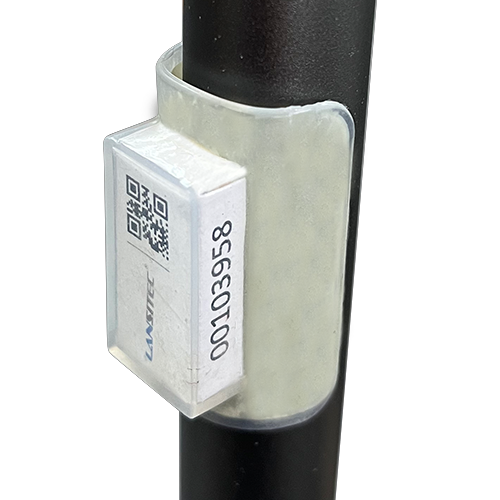

Achieve ultimate installation flexibility with the Lansitec Flex Tag. Built with a soft, adhesive-friendly silicone gel base, this beacon effortlessly attaches to curved, uneven, or cylindrical surfaces—making it perfect for tracking tools, medical supplies, or equipment with non-flat exteriors. Measuring just 40 × 25 × 18.6 mm, it continuously broadcasts iBeacon packets and supports up to six unique advertising frames. A CR1225 coin cell powers the device for up to 5 years in typical usage scenarios.

Product Specifications

Mechanics

Dimension: 90 × 60 × 1.5 mm, Thickness: 1.5 ~ 2.5 mm
Weight: 6.3 g
Operating Temperature: -20°C ~ +60°C
Housing Material: Silicone gel
Ingress Protection: IP65

Power

Battery Type: CR1225 50mAh × 2 (Non-replaceable battery)
Battery Life: Up to 5 years (0 dBm, 10s advertising interval)
Max Current: 8 mA
Standby Current: 16 μA

Bluetooth

Bluetooth Version: Bluetooth 5.0
Transmission Power: -20 ~ +5 dBm (iBeacon support)
Advertising Interval: 100 ms ~ 10 s
Transmission Distance: Up to 150 m (line of sight)
Antenna: PCB Antenna

Function

Magnet Button: Supported
Status LED: Supported
FOTA (Firmware Over-The-Air): Supported via Bluetooth
Battery Level Report: Supported

Certification

CE Certification: To be obtained

Product Features

Flexible & Durable Material – Built using high-quality flexible polymer material that ensures long-lasting durability while remaining lightweight and easy to handle in daily use.
Compact & Lightweight Design – Designed to be ultra-compact, making it easy to attach to products, assets, bags, or equipment without adding bulk or weight.
Strong Adhesion / Attachment System – Equipped with a reliable fastening mechanism that ensures the tag stays securely attached even in demanding environments.
Water & Dust Resistant – Engineered to withstand exposure to moisture, dust, and mild environmental stress, making it suitable for indoor and semi-outdoor applications.
High Visibility Surface – Clear and readable surface designed for easy identification, scanning, or labeling in warehouse, logistics, or retail environments.
Customizable Printing Options – Supports barcode, QR code, serial number, or branding customization depending on operational requirements.
Multi-Purpose Usage – Ideal for asset tracking, inventory management, logistics tagging, equipment identification, and retail product labeling.
Heat & Wear Resistant – Built to maintain structural integrity under moderate heat and frequent handling, ensuring long-term usability.
Easy Installation – Simple to attach without specialized tools, reducing deployment time in large-scale operations.
Cost-Effective Solution – Offers an efficient and economical tagging solution suitable for businesses of all sizes, especially for bulk deployment.

Package Includes

B014 Flex Tag (as per ordered quantity) Adhesive backing / attachment accessories (if applicable based on variant) Basic user instruction / installation guide Packaging box / poly pack for safe delivery Optional: Barcode/QR pre-print sheet (if customization is selected)

Other Information

Attach EverywhereThis beacon effortlessly attaches to curved, uneven, or cylindrical surfaces
Multi-Frame AdvertisingSupports up to six simultaneous beacon frames for richer data broadcasts (e.g., iBeacon plus custom telemetry).
Flexible TriggersConfigure advertisement intervals (100 ms to 10 s) and power levels (-20 dBm to +4 dBm) to balance battery usage and detection range.
Extended Battery LifeWith two 50mAh CR1225 batteries, it can run up to 5 years on a 5s interval at 0 dBm, minimizing maintenance.

Warranty Information

15 Days Seller Warranty:

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:

Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.

Return & Refund Policy:

Return window: 7 days from receipt unless stated otherwise.
No refunds or replacements after the return window.
Returns are accepted only for non-working or damaged products.
Initiate return requests from here: Return Request or contact us at 09831070550.
Refunds are processed within 3-4 working days after inspection and approval.

B014 Flex Tag

Main Features

Flexible Bluetooth tag designed for versatile asset tracking applications
Bluetooth 5.0 and iBeacon support for stable long-range communication
Ultra-thin and bendable design for curved and irregular surface installation
Low power consumption with extended battery operating life
Lightweight and compact construction for easy deployment
Reliable real-time asset tracking and proximity monitoring capabilities
Suitable for logistics, warehouse, healthcare, retail, and industrial applications
Supports integration with BLE gateways, smartphones, and IoT platforms
Durable flexible structure for demanding operational environments
Easy installation using adhesive mounting methods
