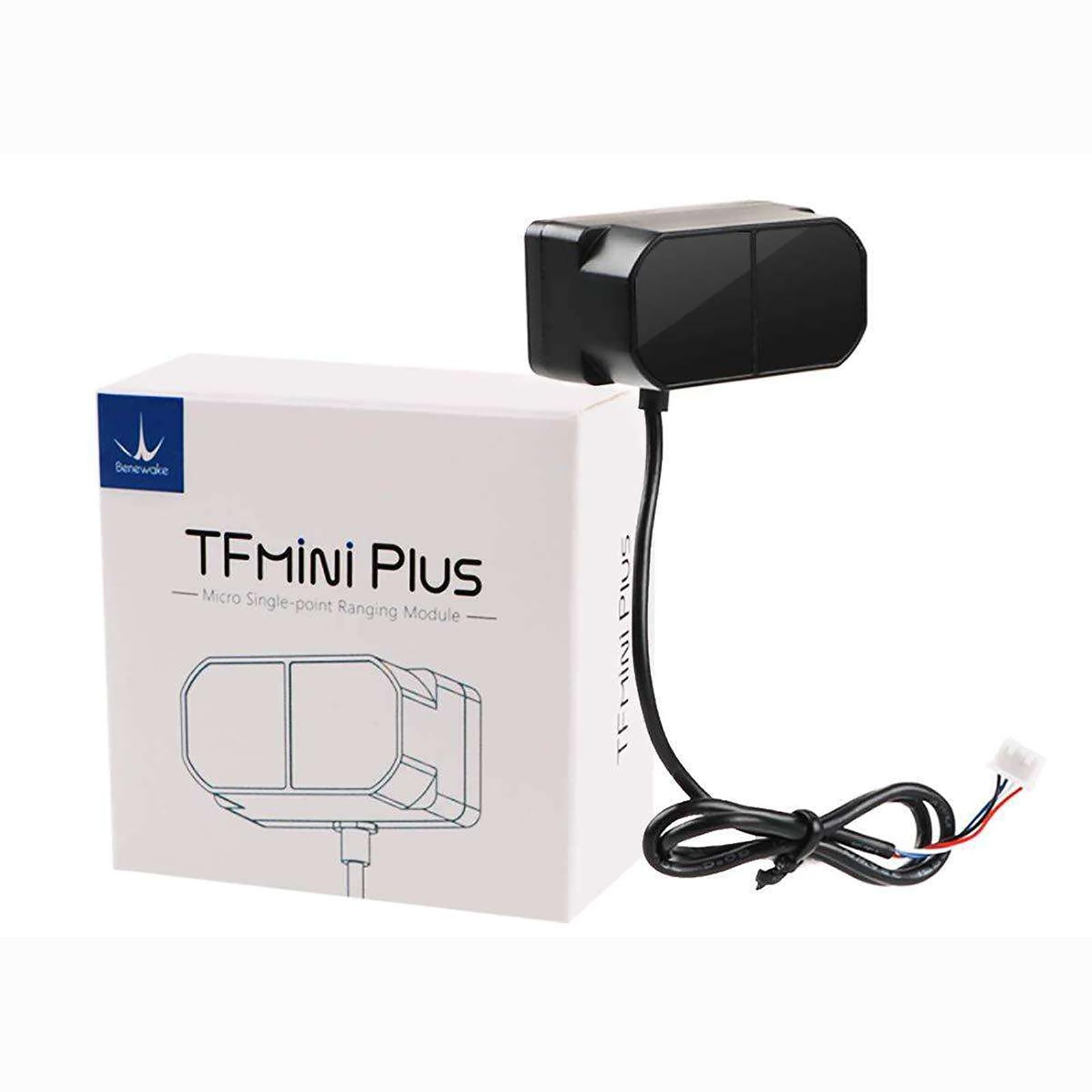

Benewake TFMini Plus LiDAR Distance Sensor UART/I²C 0.1–12m
Low Stock, 1 left
Product Description
Benewake TFMini Plus is a compact LiDAR distance sensor for drones, robots, IoT and smart-detection applications. It provides 0.1–12 m ranging, 100 Hz output, UART and I²C communication, a narrow 3.6° field of view and IP65 protection for dependable embedded distance measurement.
Product Specifications
| Brand | Benewake |
|---|---|
| Model | TFMini Plus |
| Measuring Range | 0.1–12 m |
| Frame Rate | 1–1000 Hz |
| Interfaces | UART, I/O, I²C |
| Protection Level | IP65 |
| Field of View | 3.6° |
| Accuracy | ±5 cm within 0.1–5 m |
| Power Consumption | 550 mW |
| Dimensions | 35 × 18.5 × 21 mm |
| Weight | 12 ± 1 g |
Product Features
- Enhanced TFmini-series design combines compact size, low power demand and improved range accuracy.
- IP65 enclosure helps protect the sensor for robotics, drone and smart-detection installations.
- Configurable output up to 1000 Hz supports fast obstacle and distance monitoring.
- UART, I²C and I/O interfaces provide flexible embedded-system connectivity.
- Optimized compensation algorithms improve consistency across changing application conditions.
Package Includes
- 1 × Benewake TFMini Plus LiDAR Distance Sensor
- 1 × Connection cable
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 0.1–12 m compact single-point LiDAR distance sensing
- Adjustable 1–1000 Hz frame rate
- UART, I²C and I/O communication interfaces
- IP65 protection for demanding installations
- Compact 35 × 18.5 × 21 mm housing with improved compensation algorithms
