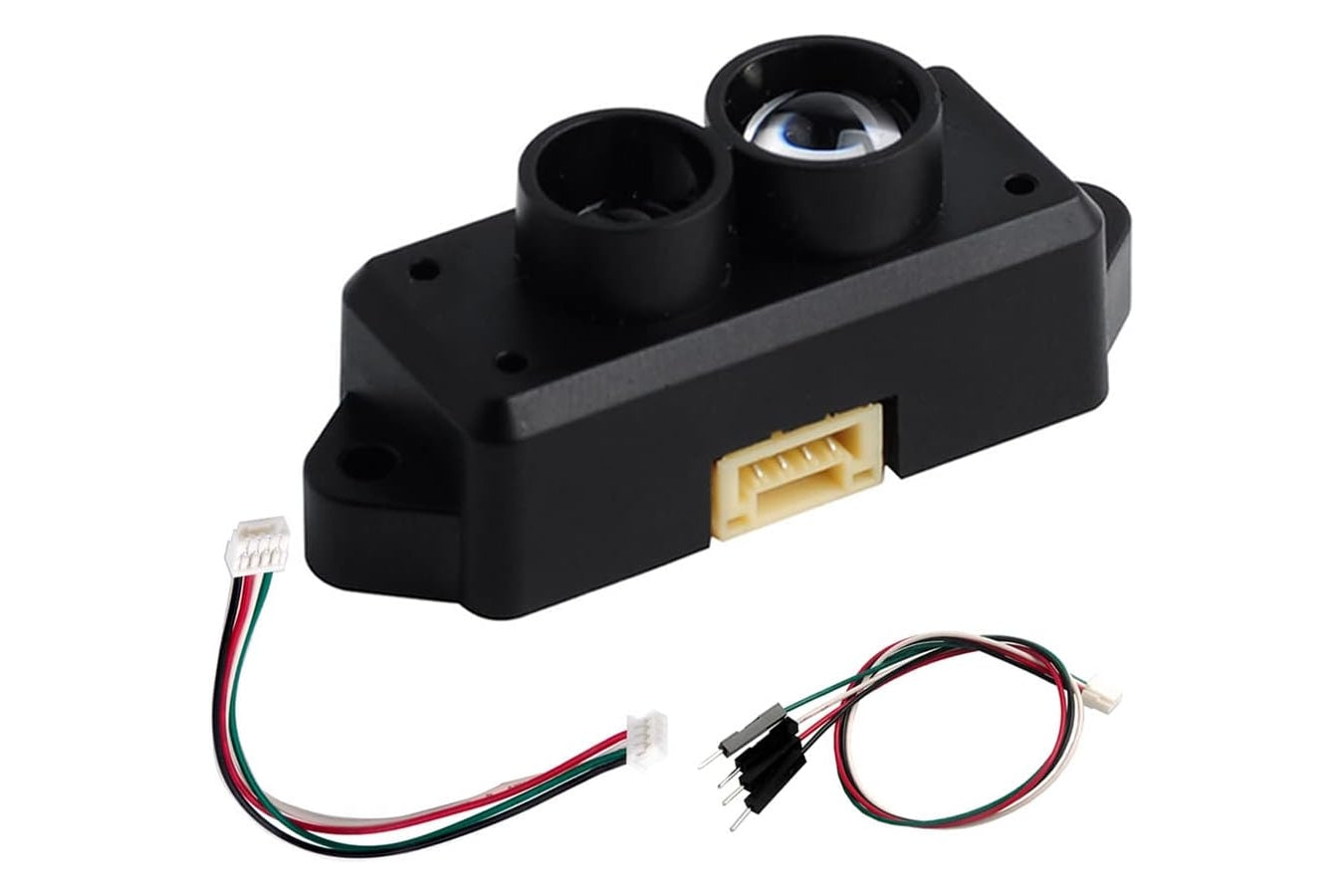

Benewake TFMini-S Micro LiDAR Sensor UART 0.1–12m
Low Stock, 1 left
Product Description
Compact Benewake TFMini-S single-point LiDAR ranging module for robotics, drones and short-range distance sensing. It measures from 0.1 to 12 m, supports UART, I²C and I/O interfaces, offers an adjustable 1–1000 Hz frame rate, IP65 protection and a lightweight compact design for easy integration.
Product Specifications
| Brand | Benewake |
|---|---|
| Model | TFMini-S |
| Ranging Principle | Time of Flight (ToF) |
| Measuring Range | 0.1–12 m |
| Frame Rate | 1–1000 Hz |
| Interfaces | UART, I²C, I/O |
| Protection Level | IP65 |
| Power Consumption | ≤0.7 W |
| Average Current | ≤140 mA |
| Accuracy | ±6 cm within 0.1–6 m |
| Dimensions | 42 × 15 × 16 mm |
| Weight | 5 ± 0.3 g |
Product Features
- Time-of-flight single-point ranging supports reliable short-distance sensing and obstacle detection.
- Frame rate can be configured from 1 to 1000 Hz to suit low-power monitoring or high-speed control applications.
- UART, I²C and I/O interfaces simplify integration with embedded controllers and robotics platforms.
- Compact 42 × 15 × 16 mm housing minimizes installation space.
- Suitable for UAV altitude holding, robot obstacle avoidance, smart triggering and distance measurement.
Package Includes

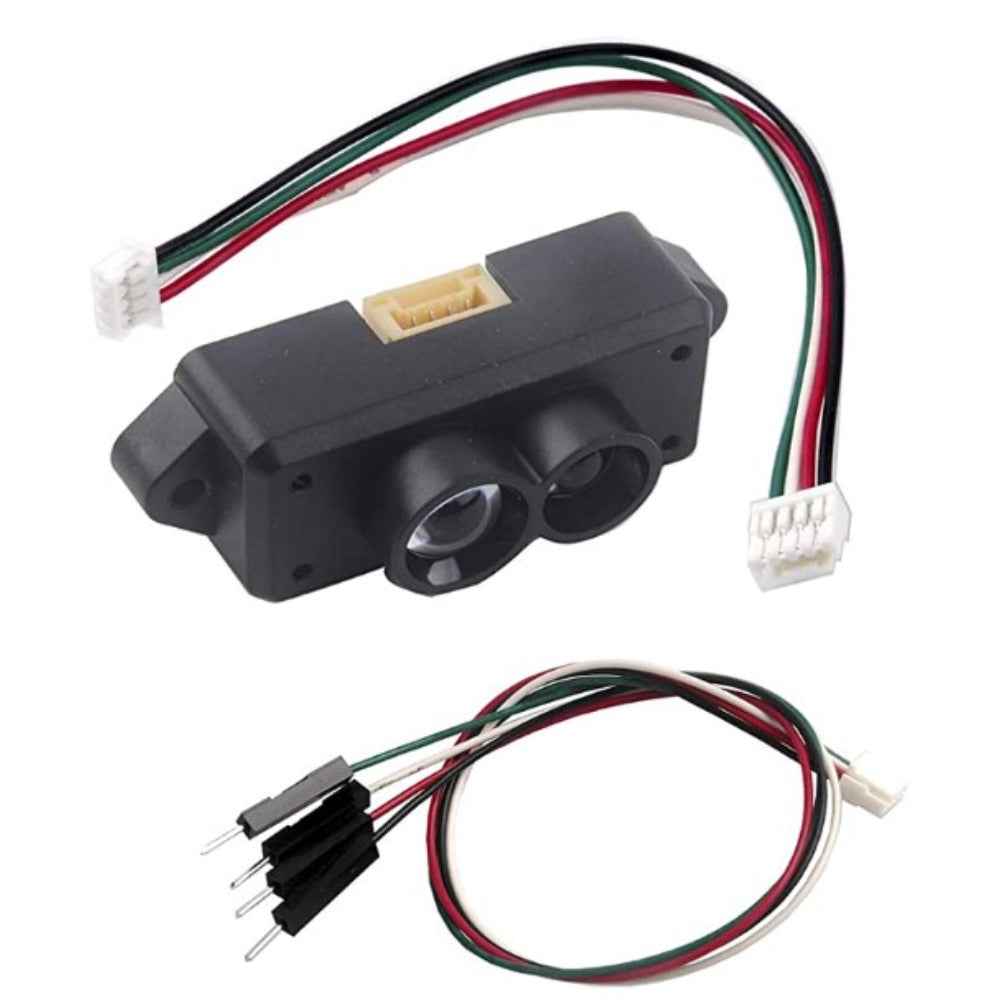

- 1 × Benewake TFMini-S Micro LiDAR Sensor
- 1 × Connection cable
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Compact single-point LiDAR with 0.1–12 m measuring range
- Adjustable 1–1000 Hz frame rate for fast ranging
- UART, I²C and I/O communication interfaces
- IP65-rated enclosure for robust integration
- Lightweight 5 ± 0.3 g design for drones, UAVs and robots
