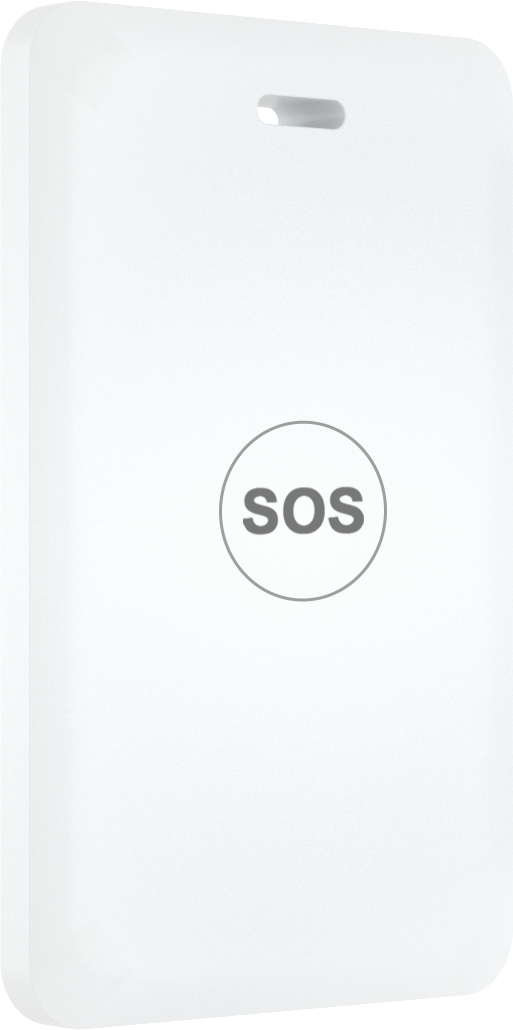

CM100-BT LoRaWAN Personnel Positioning Badge
Lead Time
Product Description
CM100-BT LoRaWAN Personnel Positioning Badge is designed for keeping track of assets in the applications named below. Positioning method and radio support determine how a tracker fits into the wider monitoring system. LoRaWAN Protocol support is listed as LoRaWAN. The Bluetooth TX Power specification is -4 dBm. The Maximum LoRa TX Power specification is 20 dBm. When choosing this lorawan personnel positioning badge, start with the documented configuration.
Plan the receiving network alongside the tracker. Battery endurance and communication-distance figures describe the conditions stated for this model; actual deployment conditions also matter. Power is provided through the stated Rechargeable lithium battery arrangement. The Battery Specification specification is 4.2 V / 900mAh. The Operating Frequency specification is CN470–510 MHz. The dimensions figure is 87.4 × 55.2 × 8.7 mm. The Sensor Type specification is Built-in accelerometer sensor, Bluetooth chip.
Applications
Product Specifications
| Brand | Winext |
| Model | CM100-BT |
| Product Type | LoRaWAN Personnel Positioning Badge |
| Sensor Type | Built-in accelerometer sensor, Bluetooth chip |
| Positioning Technology | Bluetooth beacon positioning |
| Positioning Accuracy | 5–10 meters |
| Bluetooth TX Power | -4 dBm |
| Bluetooth RX Sensitivity | -96 dBm |
| LoRaWAN Protocol | LoRaWAN |
| LoRa Data Transmission Rate | 300 bps–5.4 Kbps |
| Operating Frequency | CN470–510 MHz |
| Maximum LoRa TX Power | 20 dBm |
| LoRa RX Sensitivity | -141 dBm (SF12) |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 10%–95% RH |
| Battery Type | Rechargeable lithium battery |
| Battery Specification | 4.2 V / 900mAh |
| Charging | Magnetic charging |
| Dimensions | 87.4 × 55.2 × 8.7 mm |
| Ingress Protection | IP65 |
Product Features
- Operation is based on standard LoRaWAN communication for periodic personnel-location data transmission to a management platform.
- Available functions include Bluetooth beacon positioning with a stated positioning accuracy of 5–10 meters.
- Supported by Built-in accelerometer: displacement and movement monitoring.
- Enabled by Dedicated SOS emergency alarm: users to report their current location during an emergency.
- Supported by Rechargeable 4.2 V / 900mAh lithium battery: repeated use with magnetic charging.
- Compact IP65-rated badge design is intended for personnel attendance, visitor supervision and inspection patrol applications.
Package Includes
- 1 × CM100-BT LoRaWAN Personnel Positioning Badge
- 1 × Magnetic USB charging cable
5 V USB power adapter is not included.
Frequently Asked Questions
What is the CM100-BT LoRaWAN Personnel Positioning Badge used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
