DFRobot SEN0368 Non-Contact Capacitive Liquid Level Sensor for OD >11mm Containers
DFRobot SEN0368 Non-Contact Capacitive Liquid Level Sensor for OD >11mm Containers
Lead Time
Product Description

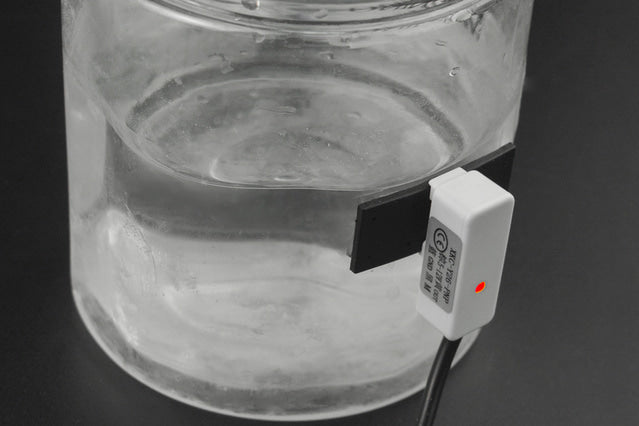

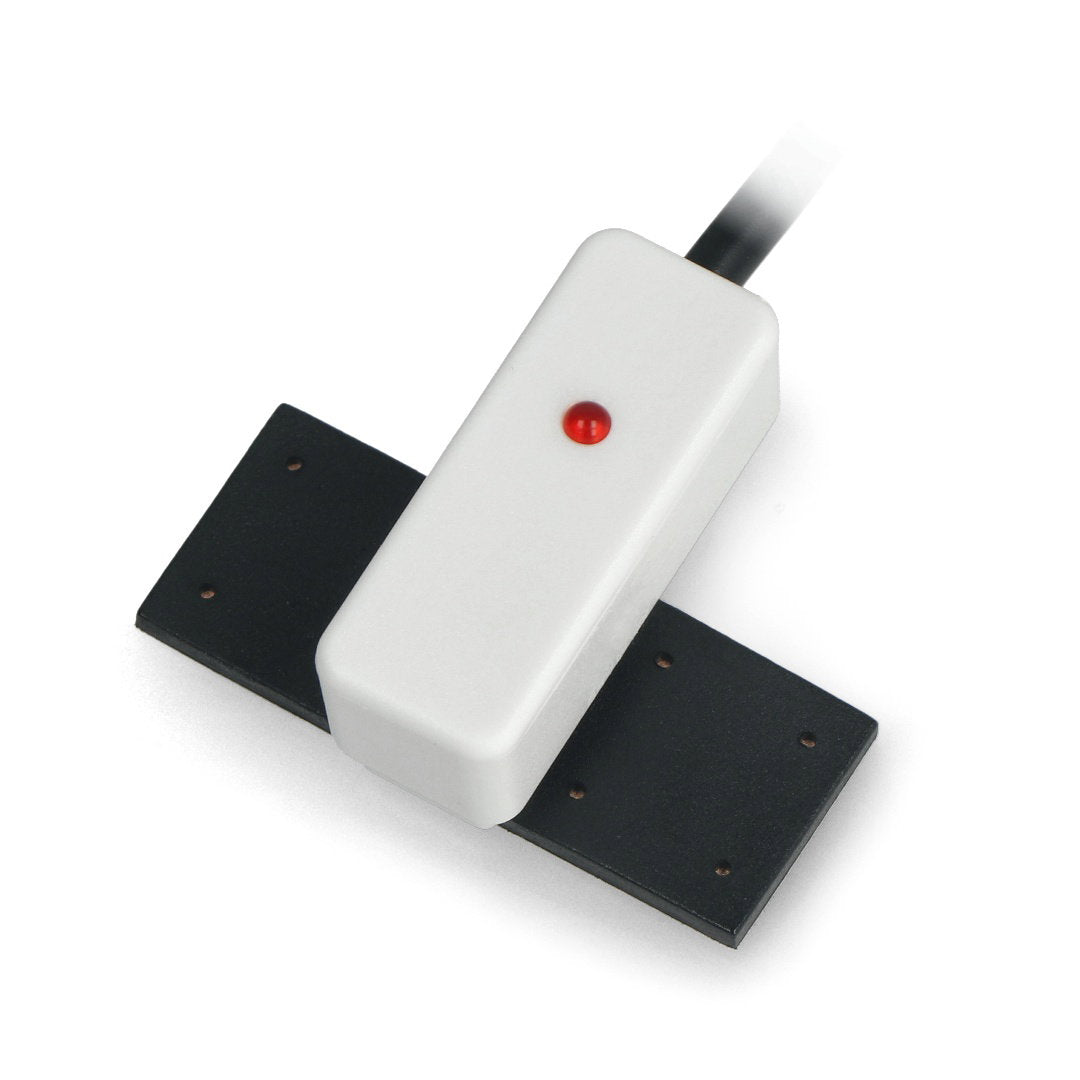

DFRobot SEN0368 non-contact capacitive liquid level sensor for detecting liquids through non-metallic containers and pipes with an outer diameter greater than 11 mm. It provides contactless sensing, adjustable sensitivity, a status indicator and digital level feedback for tanks, dispensers and automation systems.
Product Specifications
| Brand | DFRobot |
| Model | SEN0368 |
| Sensor Type | Non-contact capacitive liquid level sensor |
| Power Supply | 5–12V DC |
| Output | Switch quantity / digital level signal |
| Response Time | 500ms |
| Operating Temperature | -5°C to +105°C |
| Suitable Container OD | ≥11mm |
| Liquid Level Error | ±1.5mm |
| Material | ABS |
| Waterproof Rating | IP65 |
Product Features
- Brand / Model: DFRobot SEN0368
- Detection method: Non-contact capacitive sensing
- Suitable container outer diameter: ≥11mm
- Power supply: 5–12V DC
- Response time: 500ms
- Output: Digital switch quantity / high-low level signal
- Typical applications: Tanks, water dispensers, non-metallic pipes and automated fluid monitoring

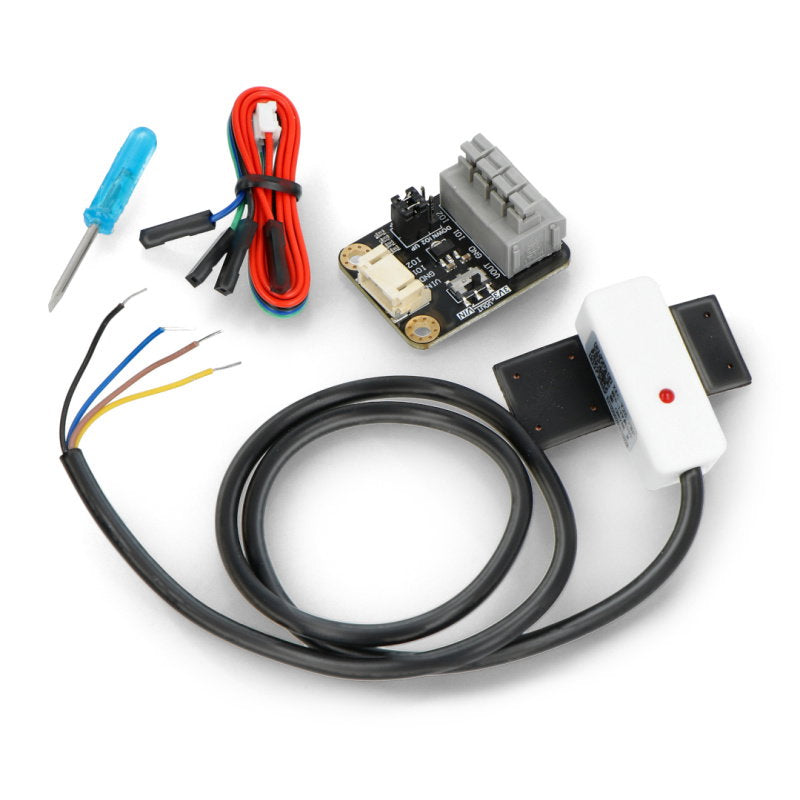

Package Includes
- 1 × DFRobot SEN0368 Non-Contact Capacitive Liquid Level Sensor
- 1 × 4-pin sensor adapter
Frequently Asked Questions
What is the DFRobot SEN0368 Non-Contact Capacitive Liquid Level Sensor for OD >11mm Containers used for?
What are its main features?
What are the power or battery requirements?
What operating or installation limits should I consider?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Non-contact capacitive sensing: Detects liquid through non-metallic container walls without direct fluid contact.
- For containers over 11mm OD: Suitable for curved or flat non-metallic containers and pipes with outer diameter greater than 11mm.
- Adjustable sensitivity: Field-adjustable sensing threshold helps match different container materials and wall thicknesses.
- Real-time status indication: Integrated indicator provides immediate liquid-detection feedback.
- 5–12V operation: Compatible with common embedded and automation power supplies.
- IP65 ABS housing: Robust enclosure for liquid-level monitoring applications.
