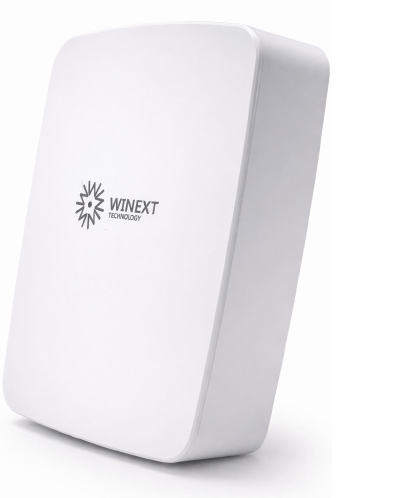

GW3000 Ceiling-Mounted LoRaWAN Gateway
Low Stock, 1 left
Product Description
The GW3000 is a ceiling-mounted LoRaWAN gateway designed for strong signal coverage and penetration, providing a reliable solution for two-way IoT data transmission. Equipped with Semtech high-performance LoRa transceiver technology, it supports simultaneous reception across up to eight uplink channels.
Gateway data can be forwarded over Ethernet or optional 4G cellular backhaul to an external LoRaWAN Network Server (NS). Alternatively, the built-in network server can send device data directly to customer application platforms using MQTT or HTTP.
Its compact, durable ceiling-mount design suits airports, hospitals, educational institutions, residential communities, industrial parks and commercial buildings where stable and secure indoor LoRaWAN coverage is required. It supports DC 12 V or IEEE 802.3af PoE power, configurable regional LoRaWAN frequency plans, local web configuration and remote gateway management.
Applications
IoT Gateway Connectivity
Indoor LoRaWAN Coverage
Smart Building
Industrial Networking
Remote Sensor Monitoring
Wireless Sensor Networking
Product Specifications
| Hardware and LoRaWAN | |
|---|---|
| Model | GW3000 Ceiling-Mounted LoRaWAN Gateway |
| Master Control | QCA9531; 128 MB RAM; 16 MB Flash |
| Power Supply | DC 12 V; IEEE 802.3af PoE 48 V |
| LoRa Frequency Bands | CN470–510 / EU863–870 / US902–928 / AS923-1–4 / AU915–928 / KR920–923 / RU864–870 / IN865–867 MHz (optional, regional variants) |
| LoRa Data Rate | 292 bps–5.4 kbps; SF7–SF12 |
| LoRa TX Power | 20 dBm adjustable |
| LoRa RX Sensitivity | −141 dBm @ SF12 |
| LoRa Antenna | 1.5 dBi omnidirectional |
| Channels | 8 uplink; 1 downlink |
| LoRa Mode | Half-duplex |
| Base Station Timing | Network |
| LTE Regional Band Options | |
| China | LTE-TDD B38/B39/B40/B41; LTE-FDD B1/B3/B5/B7/B8; TD-SCDMA B34/B39; UMTS B1/B8; EVDO 800 MHz; CDMA1x 800 MHz; GSM 850/900/1800/1900 |
| Europe / Korea / Thailand / India | FDD LTE B1/B3/B5/B8/B20; TDD LTE B38/B40/B41; WCDMA B1/B5/B8; GSM B3/B8 |
| North America | FDD LTE B2/B4/B5/B12/B13/B14/B66/B71; WCDMA B2/B4/B5 |
| Latin America / Australia / New Zealand | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28; LTE-TDD B40; WCDMA B1/B2/B5/B8; GSM/EDGE B2/B3/B5/B8 |
| Global | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; LTE-TDD B38/B39/B40/B41; WCDMA B1/B2/B4/B5/B6/B8/B19; GSM B2/B3/B5/B8 |
| Connectivity and Environmental | |
| Wi-Fi | 2.4 GHz AP; 18 dBm max |
| Data Backhaul | 10/100 Mbps Ethernet and 3G/4G |
| Debug Interface | Wi-Fi, LAN, serial port |
| Operating Temperature | −10°C to +50°C |
| Power Consumption | 7 W normal |
| Dimensions | 168 × 168 × 38 mm |
| Net Weight | 390 g |
| Software & Network | |
| Kernel | Linux 4.14.88 |
| Packet Forwarding | UDP (GWMP), MQTT (GWMP), built-in NS, WSS via Basic Station CUPS/LNS |
| External NS Platforms | Winext IoT, Tencent IoT, Alibaba IoT, Amazon LPWAN, TTN, ChirpStack, LoRaWAN Stack |
| LoRaWAN | 1.1 backward-compatible with 1.0.x; Class A / Class C |
| Built-in NS | Up to 100 terminals; MQTT/HTTP parsed-data push |
| Modbus TCP | Up to 5 client connections; function code 03 |
| User Interface | Web interface; Chinese/English |
| 4G Dial-up | QMI |
| IPv6 | 4G IPv6 with relay via LAN and Wi-Fi |
| Time Sync | NTP client; time-zone selection |
| WAN Protocols | Static, DHCP client, PPPoE |
| Firmware Updates | Web flashing and remote OTA |
| Wi-Fi Router Connection | 2.4 GHz 802.11b/g/n; WPA2 PSK; STA+AP |
| Firewall | iptables v1.8.2; custom rules and SYN-flood defence |
| Failover | Optional WAN priority with 4G backup |
| Gateway ID | Generated from Wi-Fi MAC address |
| TF Card Logs | Optional logging; older files cleared when full |
| Fault Detection | System self-test, repair and server reporting |
| Remote Management | Configuration, firmware updates, remote restart, maintenance |
Product Features
- Supports LoRaWAN V1.0.2, 1.0.3, 1.0.4 and V1.1, Class A and C devices
- Eight LoRa uplink channels and one downlink channel
- UDP packet_forwarder and Basic Station CUPS and LNS protocols
- Switches between built-in and external network servers
- Built-in NS supports MQTT/HTTP parsed-data delivery and Modbus TCP queries
- Built-in NS supports offline-to-online data transfer handling
- Tri-colour status indicator light
- Wi-Fi web interface for status, configuration and live node data
- Firewall features include SYN-flood and DNS rebinding protection
- System self-diagnostics, self-repair and OTA firmware updates
- Optional TF-card storage for gateway logs and node historical data
- Two RJ45 ports for WAN and LAN
- IPv6 via 4G with LAN and Wi-Fi IPv6 relay
- WAN prioritised with automatic 4G failover, where enabled
- Regional LTE module options; verify selected hardware bands
Package Includes
- 1 × GW3000 Ceiling-Mounted LoRaWAN Gateway
- Mounting, power and network accessories: subject to supplier packing configuration; confirm at order placement
Frequently Asked Questions
What is the GW3000 Ceiling-Mounted LoRaWAN Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Ceiling-mounted indoor LoRaWAN gateway with strong signal coverage and penetration
- 8 uplink channels and 1 downlink channel; adaptive data rate
- DC 12 V and standard IEEE 802.3af PoE (48 V) power
- Ethernet and optional 3G/4G backhaul with WAN-first failover
- Built-in or external LoRaWAN Network Server
- LoRaWAN 1.0.x and 1.1; Class A and Class C
- MQTT, HTTP, Modbus TCP and Basic Station CUPS/LNS
- Secure browser-based Wi-Fi configuration and remote OTA updates
- Self-diagnostics, firewall and optional TF-card logging
- Compact 168 × 168 × 38 mm ceiling-mounted enclosure
