GW5000A Industrial-Grade Outdoor LoRaWAN Gateway
Low Stock, 1 left
Product Description
The GW5000A is an industrial-grade outdoor LoRaWAN gateway designed for long-range, energy-efficient IoT communications. It combines LoRaWAN wireless networking with Ethernet, cellular 2G/3G/4G, Wi-Fi and GPS capabilities, enabling reliable connections between distributed sensors, network servers and cloud-based monitoring platforms.
Using a star-network topology, the gateway receives data from remote LoRaWAN end devices and forwards information through standard IP networks. Eight data channels and one control channel support multi-node IoT deployments, while Ethernet and 4G backhaul with WAN priority and cellular backup help maintain network connectivity.
Built for demanding outdoor installations, the GW5000A features an IP67-rated enclosure, industrial operating temperature range of −40°C to +80°C, 48 V PoE input (24–48 V specified) and wall or pole mounting. GPS connectivity supports positioning and time synchronisation required for Class B operation when configured appropriately.
The GW5000A is suitable for smart parking, fire-safety monitoring, livestock tracking, asset management, power-cable monitoring, smart street lighting, precision agriculture and environmental monitoring. Frequency configuration and LTE modem selection must match the local operating region and network deployment.
Applications
Product Specifications
| Hardware & System | |
|---|---|
| Model | GW5000A |
| Product Type | Industrial-Grade Outdoor LoRaWAN Gateway |
| CPU | Industrial-grade 400 MHz CPU |
| Operating System | Linux 3.18.27, 32-bit; 128 kB L2 cache |
| Communication | |
| LoRa Data Rate | 292 bps–5.4 kbps |
| Ethernet Rate | 100 Mbps |
| LTE Rate | 50 Mbps (manual-listed) |
| LoRaWAN Frequency Bands | CN470–510 / EU863–870 / US902–928 / AS920–925 / AU915–928 / KR920–923 / RU864–870 / IN865–867 MHz (regional configuration dependent) |
| LoRa TX Power | 17 dBm nominal; up to 26 dBm maximum |
| RX Sensitivity | −142 dBm @ SF12 (half-duplex); −138 dBm @ SF12 (full-duplex) |
| Channels | 8 data channels; 1 control channel |

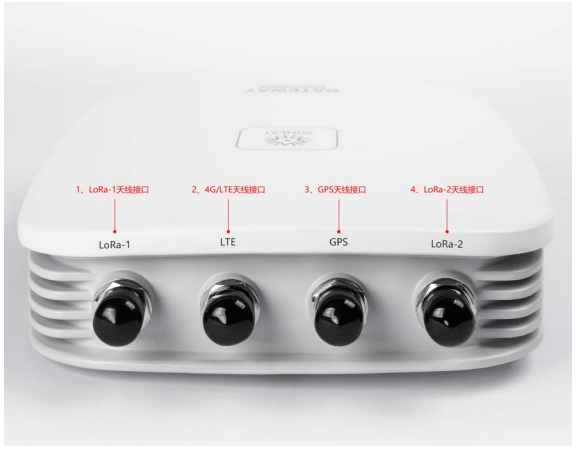

| Interfaces | 1 LAN, 1 WAN, Wi-Fi, LTE module; GPS antenna, SIM and TF-card slots |
| Wi-Fi | 2.4 GHz, AP mode, maximum 18 dBm |
| Backhaul | Ethernet with automatic 4G/LTE backup |
| Power & Environment | |

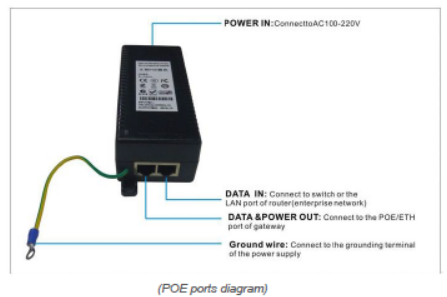

| Power Input | PoE 48 V nominal (24–48 V) |
| Operating Temperature | −40°C to +80°C |
| Operating Humidity | 5%–95% |
| Ingress Protection | IP67 |
| Physical Properties | |

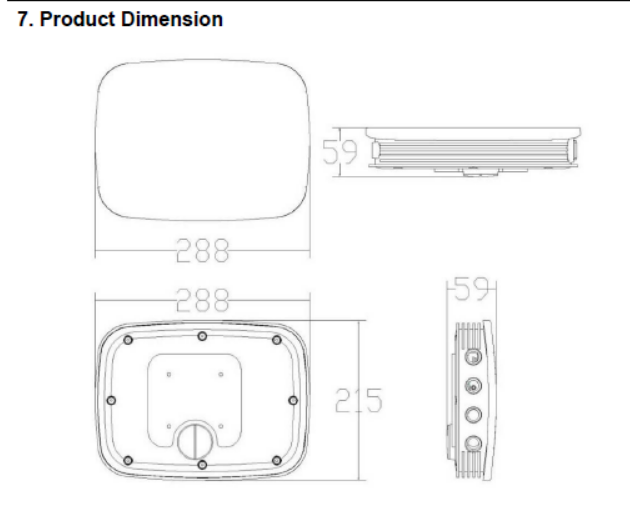

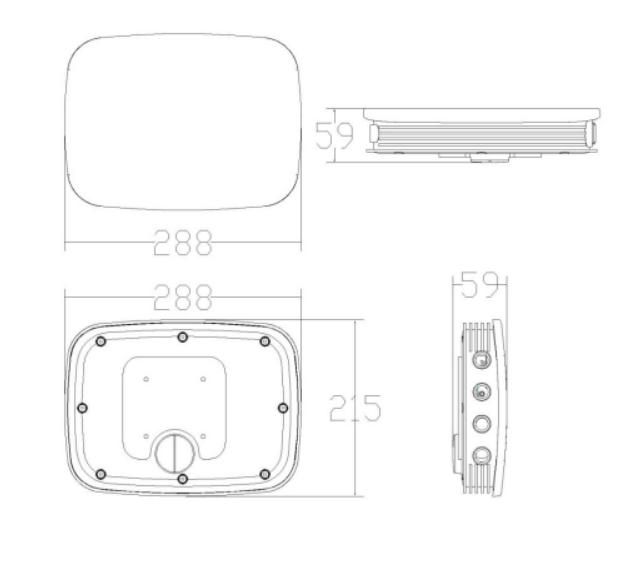

| Dimensions | 288 × 215 × 59 mm |

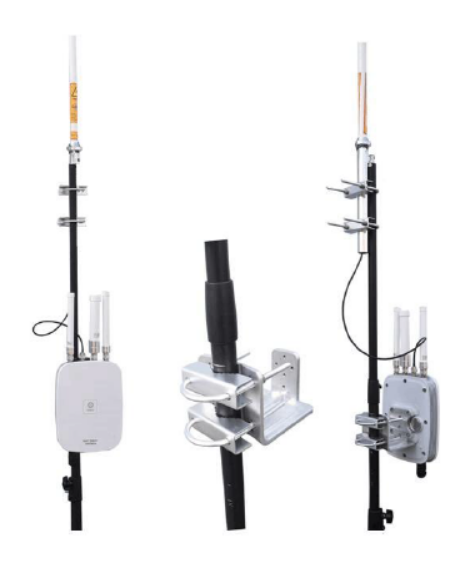

| Mounting | Wall-mounted or pole-mounted |
| Certificate (manual statement) | CE / FCC; exact variant and supporting documents to be verified |
| Lightning Protection | Optional; grounding and surge protection required for installation |
| Control & Management | |
| Configuration | Local web interface by LAN or Wi-Fi |
| WAN Priority | Ethernet WAN preferred; 4G cellular backup |
| Remote Management | LoRa parameter changes, status reporting, remote upgrades, reboot and administration |
| Logging | TF card for local logs; older records automatically cleared as memory fills |
| GPS / Class B | GPS time synchronisation required for Class B; without GPS supports Class A/C |
Product Features
- Star-topology LoRaWAN network for industrial outdoor IoT devices and cloud applications
- 292 bps–5.4 kbps LoRa data rate with regional frequency configuration
- LoRa transmitter rated 17 dBm; maximum 26 dBm in manual
- Receiver sensitivity −142 dBm @ SF12 half-duplex and −138 dBm @ SF12 full-duplex
- 100 Mbps Ethernet and listed 50 Mbps LTE communication rates

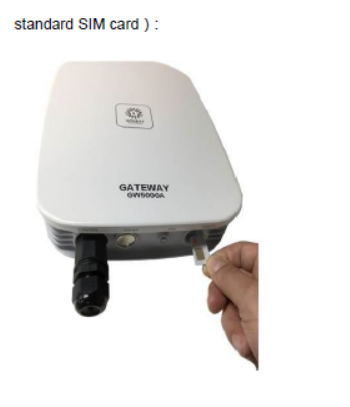

- Interfaces include LAN, WAN, Wi-Fi, LTE, GPS, standard SIM and TF card
- Gateway supports external LoRaWAN network servers, including TTN
- Remote reporting of WAN, LTE, LoRa, Wi-Fi and TF-card status
- Remote modification of LoRa parameters, firmware updates, restarts and maintenance
- Ethernet WAN is prioritised, with automatic 4G fallback when WAN is unavailable
- GPS positioning and synchronisation for Class B where supported and configured

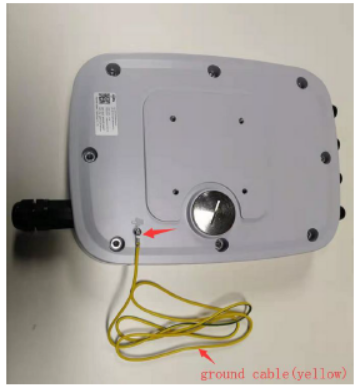

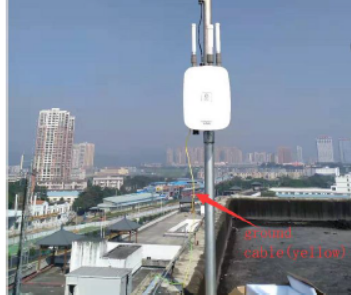

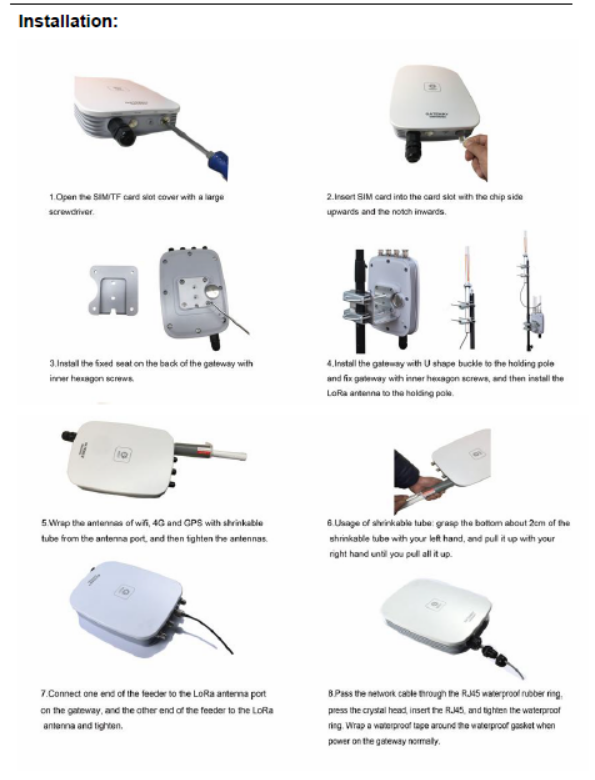

- Outdoor installation supports wall/pole brackets, grounding and appropriate lightning/surge protection
- Factory reset through hardware button or configuration interface
- Local TF-card logging with oldest records cleared when remaining memory is low

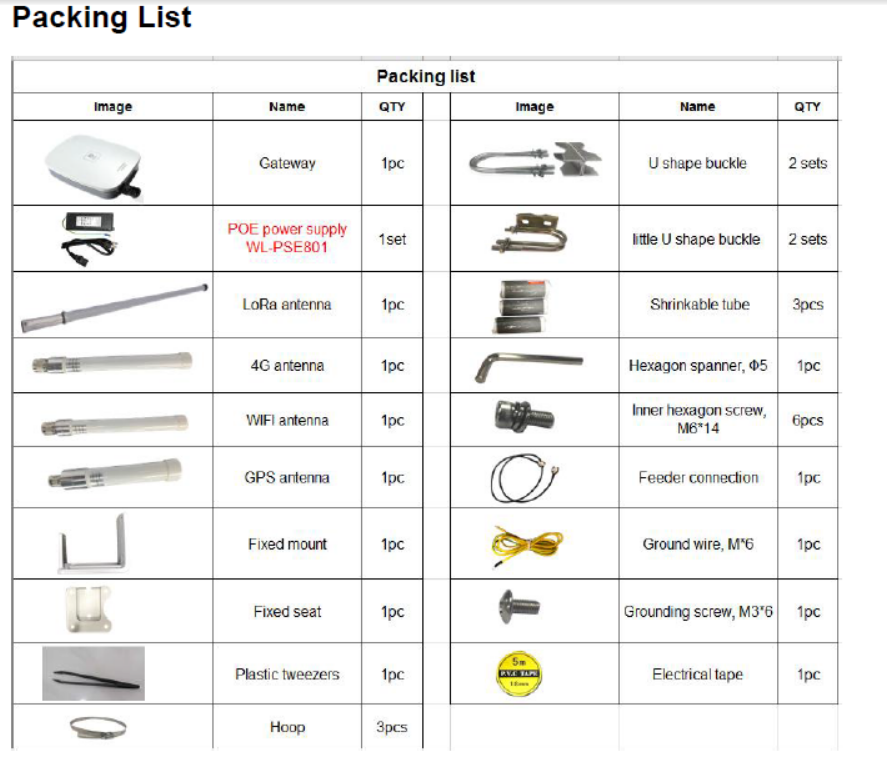

Package Includes
- 1 × GW5000A gateway
- 1 × PoE power supply (WL-PSE801 in manual packing list; version-dependent)
- 1 × LoRa antenna
- 1 × 4G antenna
- 1 × Wi-Fi antenna
- 1 × GPS antenna
- 1 × Fixed mount and fixed seat
- Mounting U-brackets, screws, nuts and shrink tubing as shown in manufacturer packing list
- Grounding and feeder hardware, sealing tape and related installation accessories per kit configuration
Frequently Asked Questions
What is the GW5000A Industrial-Grade Outdoor LoRaWAN Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Industrial-grade outdoor LoRaWAN gateway with IP67 enclosure
- Long-range network coverage with 8 data channels and 1 control channel
- LoRaWAN frequency options including IN865–867, EU868 and US915
- Ethernet, 2G/3G/4G LTE, 2.4 GHz Wi-Fi and GPS connectivity
- Ethernet WAN preferred with automatic 4G backup
- Sensitivity down to −142 dBm at SF12 in half-duplex mode
- PoE power input 24–48 V; 48 V nominal
- Wide operating-temperature range: −40°C to +80°C
- Wall or pole mounting with optional lightning protection
- Remote LoRa settings, upgrades, reboot and maintenance
