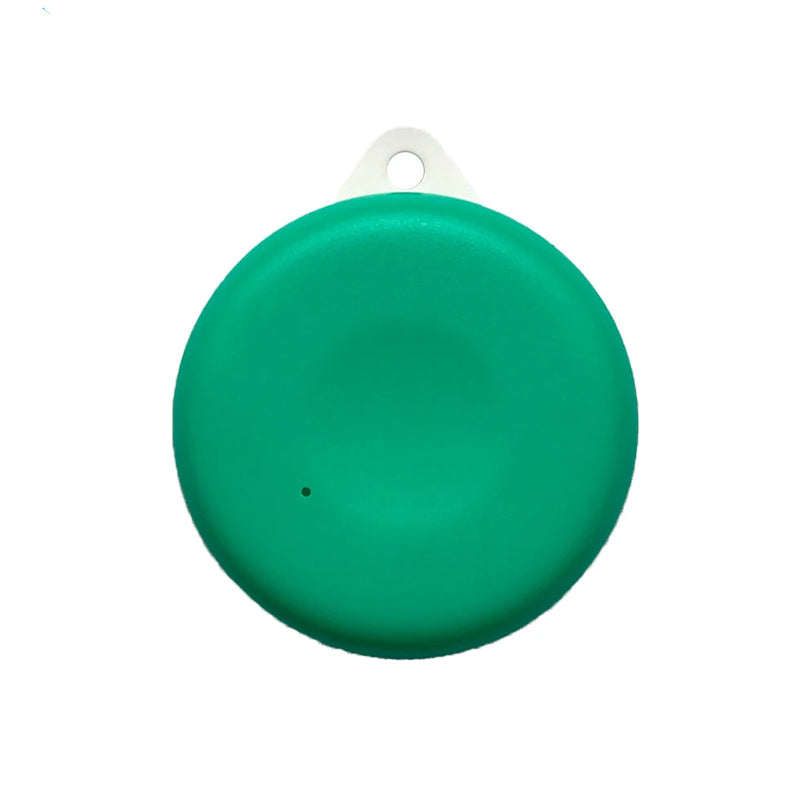

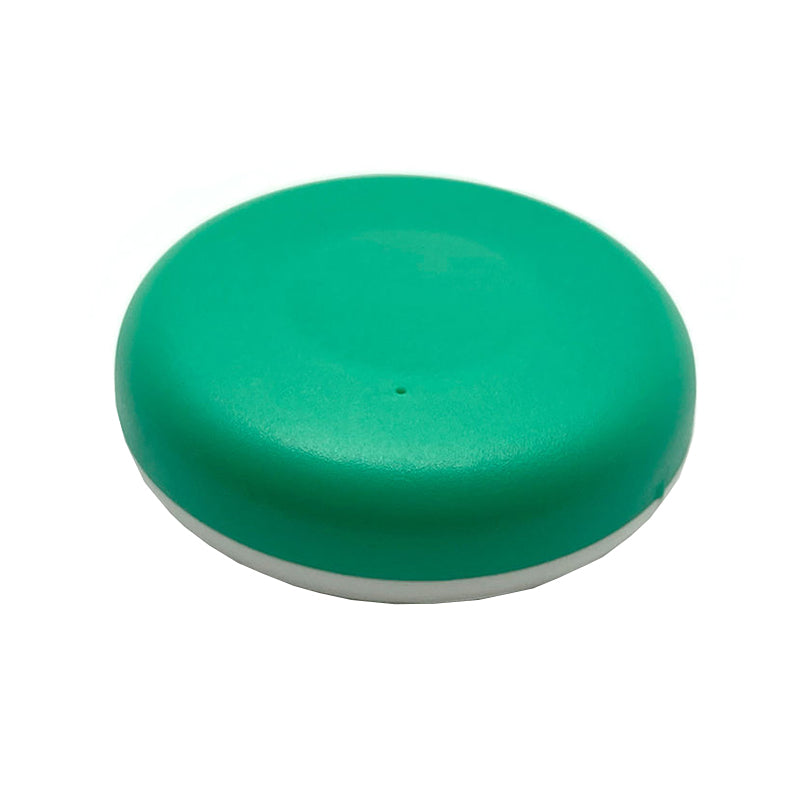

HOLYIOT-21091 Bluetooth Motion & Environmental Sensor
Lead Time
Product Description
Compact Bluetooth Low Energy sensor for motion tracking, asset monitoring and connected IoT applications. Its nRF52832 platform supports optional multi-axis motion and environmental sensing, while the IP67 enclosure and CR2032 battery suit portable and long-duration deployments.
Applications
Product Specifications
| Model | HOLYIOT-21091 |
|---|---|
| Bluetooth version | Bluetooth Low Energy 5.0 |
| Chipset | Nordic nRF52832 |
| Configuration app | BLE Sensor / BLESensor |
| Battery | CR2032, 220mAh |
| Supply voltage | 2.2–3.6V |
| Ingress protection | IP67 |
| Dimensions | 30mm diameter × 8.4mm thickness |
| Weight | 6.5g |
| Standby current | 12µA |
| Advertising current | 158µA average (+4dBm / 100ms) |
| Connected current | Up to 6.25mA with all sensors enabled |
| Standby time | Up to 900 days |
| Operating temperature | -20°C to 60°C |
| Transmit power | +4dBm |
| Advertising interval | 100ms |
| Wireless range | Up to 50m in open space |
| Supported devices | iOS 7.0+ and Android 4.3+ |
| Optional sensors | Accelerometer, gyroscope, magnetometer, temperature, humidity and barometer |
Product Features
- Supports accelerometer, gyroscope and magnetometer sensing for motion and orientation tracking.
- Optional temperature, humidity and barometric sensors enable environmental-data collection.
- Bluetooth advertising and connected modes support portable tracking and IoT monitoring.
- The BLESensor mobile application provides device scanning, connection and real-time sensor-data viewing.
- Low standby current and a replaceable CR2032 battery support long-duration deployments.
Package Includes
- 1 × HOLYIOT-21091 Bluetooth Motion & Environmental Sensor
