iGS03MP (LTE Cat 1bis) – BLE-to-LTE Gateway
No reviews yet
In Stock
Product Description
The iGS03MP is an industrial-grade BLE gateway that supports both WiFi and LTE Cat 1bis connectivity for transmitting Bluetooth Low Energy (BLE) beacon, sensor, and tag data to cloud platforms or remote servers. It is designed for IoT, asset tracking, RTLS, smart logistics, and industrial monitoring applications where reliable wireless connectivity is required. The gateway supports MQTT, HTTP/HTTPS, and TCP communication protocols, enabling seamless integration with AWS IoT, Azure IoT, and other cloud platforms.
Product Specifications
| Product Model | iGS03MP |
| Product Type | Industrial BLE-to-Cloud Gateway |
| Connectivity | WiFi + LTE Cat 1bis |
| Bluetooth Standard | Bluetooth® Low Energy (BLE 4.2 / BLE 5) |
| BLE PHY Support | LE 1M PHY / LE Coded PHY |
| BLE Range | Up to 100 meters (Open Space) |
| Supported BLE Formats | iBeacon, Eddystone, Custom BLE |
| Cellular Network | LTE Cat 1bis |
| SIM Type | Micro SIM |
| WiFi Standard | IEEE 802.11 b/g/n |
| Network Modes | WiFi STA / WiFi AP Mode |
| Communication Protocols | MQTT, MQTTS, HTTP, HTTPS, TCP |
| Cloud Platforms | AWS IoT, Azure IoT, Google Cloud |
| Data Format | JSON |
| Security | TLS/SSL, Root CA & Certificate Support |
| Configuration Method | Web UI / SSH |
| Firmware Upgrade | OTA (Over-the-Air) |
| Power Input | USB Type-C, 5V DC |
| Power Consumption | Low Power Industrial Design |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% ~ 95% RH (Non-condensing) |
| GNSS Support | Optional GPS / GLONASS / Galileo |
| Applications | Asset Tracking, RTLS, Industrial IoT, Smart Logistics |
| Mounting | Desktop / Wall Mount |
| Enclosure Type | Industrial Compact Enclosure |
| Operating Environment | Indoor / Semi-industrial |
| Cooling Method | Passive Cooling |
| Continuous Operation | 24×7 Industrial Use |
| BLE Scan Support | Multi-device simultaneous scan |
| BLE Packet Types | Advertising packets |
| RSSI Detection | Supported |
| BLE Filter | MAC / Payload Filtering |
| Scan Interval | Configurable |
Product Features
- Supports Bluetooth® Low Energy (BLE 4.2 / BLE 5) communication
- Supports BLE Long Range (LE Coded PHY) technology
- Simultaneous WiFi and LTE Cat 1bis connectivity
- Industrial BLE-to-Cloud gateway architecture
- Reads iBeacon, Eddystone, and custom BLE sensor payloads
- Multi-device BLE scanning support (up to 200 BLE packets per second)
- LTE Cat 1bis connectivity for reliable wide-area deployment
- Supports Micro SIM card for cellular communication
- Integrated WiFi Access Point (AP) mode for easy configuration
- Web UI–based setup and remote management
- Supports TCP, HTTP, HTTPS, MQTT, and MQTTS protocols
- Compatible with: AWS IoT, Microsoft Azure IoT, Google Cloud IoT
- JSON format data upload support
- TLS/SSL secure communication with certificate support
- Supports Root CA, User Certificate, and Private Key upload
- OTA (Over-the-Air) firmware/software upgrade support
- Configurable BLE filtering and whitelist functions
- RSSI threshold and payload filter support
- Adjustable BLE scan interval and reporting interval
- DHCP and Static IP network configuration support

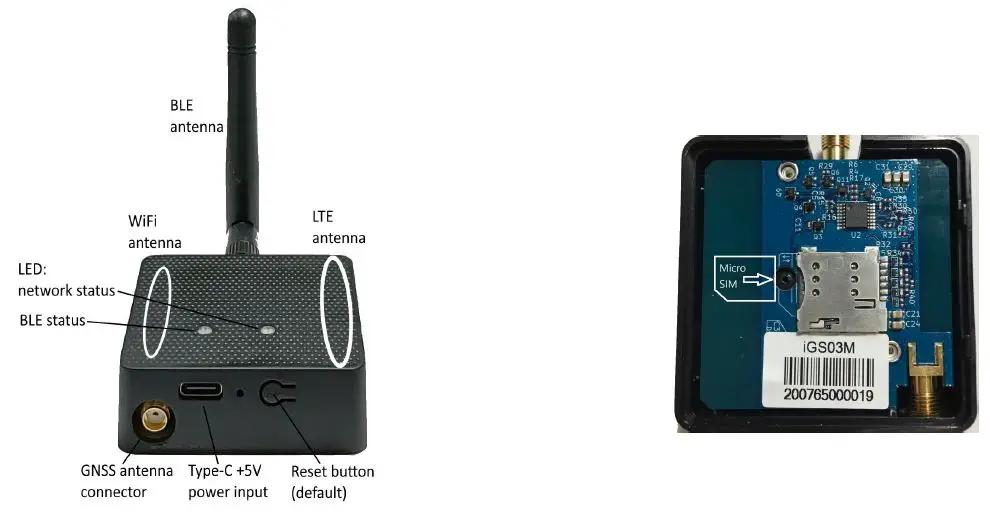

- Internal LTE antenna with optional external GNSS antenna support
- Remote monitoring and industrial automation ready
Package Includes
- 1 × iGS03MP WiFi + LTE Cat 1bis BLE Gateway
- 1 × LTE Antenna
- 1 × WiFi Antenna
- 1 × USB Type-C Power Cable
