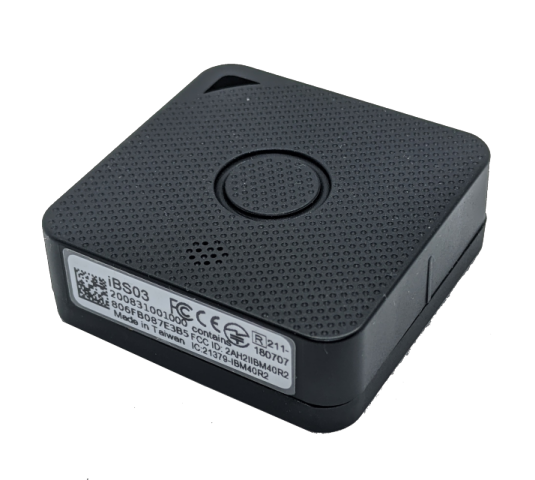

INGICS iBS03 Open/Close Detection Hall Sensor Beacon
Low Stock, 1 left
Product Description
The INGICS iBS03 is a compact Hall-effect open/close detection beacon for monitoring doors, windows, cabinets, hatches and other equipment access points. Its magnetic sensing function reports changes in open or closed state through Bluetooth Low Energy broadcasts to a compatible BLE receiver or gateway.
Using Bluetooth 5 with LE Coded PHY, the iBS03 supports up to 100 m line-of-sight BLE range in suitable conditions. It operates from a replaceable CR2450 battery, with a manufacturer-stated battery life of up to 4 years at a 5-second advertising interval.
The IPx7-rated enclosure provides water resistance for demanding monitoring installations. Typical deployments include warehouse door-state monitoring, building security, equipment cabinet access detection, and remote asset-status reporting when paired with a compatible gateway.
For installation guidance and full characteristics, refer to the INGICS iBS03 manufacturer information.
Product Specifications
| General | |
|---|---|
| Model | iBS03 |
| Manufacturer | INGICS |
| Bluetooth & Radio | |
| Wireless | Bluetooth 5 / BLE |
| Wireless Range | Up to 100 m line-of-sight |
| Power & Battery | |
| Battery | CR2450 |
| Battery Life | Up to 4 years at 5 s advertising interval |
| Mechanical & Environmental | |
| Ingress Protection | IPx7 |
| Physical & Environment | |
| Operating Temperature | −20°C to +75°C |
| Other Specifications | |
| Sensing Method | Hall-effect magnetic open/close detection |
Product Features
- Uses Hall-effect magnetic sensing to report open or closed status without mechanical contact.
- Transmits sensor status by Bluetooth 5 Low Energy to nearby compatible BLE receiving equipment.
- Supports up to 100 m line-of-sight wireless range when radio conditions permit.
- Uses one CR2450 battery for up to 4 years at a 5-second advertising interval under specified conditions.
- Supports use in wet or demanding environments thanks to an IPx7 water-resistance rating.
- Suitable for doors, windows, enclosures, cabinets and access-point monitoring in buildings and industrial sites.
Package Includes
- 1 × INGICS iBS03 Open/Close Detection Hall Sensor Beacon
Frequently Asked Questions
What is the INGICS iBS03 Open/Close Detection Hall Sensor Beacon used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Magnetic Hall-effect detection of open/close status
- Bluetooth 5 BLE beacon with LE Coded PHY
- Up to 100 m range in line-of-sight conditions
- Replaceable CR2450 coin-cell battery
- Up to 4 years of battery life at a 5-second advertising interval
- IPx7-rated water-resistant enclosure
