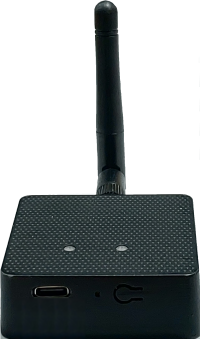

Ingics iGS03W WiFi BLE Gateway
Lead Time
Product Description
Ingics iGS03W WiFi BLE Gateway is designed for connecting equipment through the network functions listed below. It suits installers matching existing equipment to the ports, protocols and physical installation this model supports. Protocols support is listed as TCP, HTTP/HTTPS, MQTT/MQTTS. The BLE Transmit Power specification is Max. +4 dBm. It accepts USB Type-C, 5 V ±5%, 1 A at the specified input. When choosing this industrial networking device, start with the documented configuration. Check the communication requirements at both ends of the connection. Port format alone does not establish protocol compatibility, and the stated power and mounting arrangement also need to suit the installation. The Average Power specification is 0.45 W. The Frequency specification is 2.412–2.484 GHz. The BLE Range specification is >100 m open space. The dimensions figure is 54 × 54 × 19 mm, excluding antenna and connector. The Gateway Type specification is BLE-to-WiFi Gateway.
Applications
IoT Gateway Connectivity
Wireless Sensor Networking
Remote Device Management
Real-Time Location System (RTLS)
Product Specifications
| Manufacturer | Ingics |
| Model | iGS03W |
| Gateway Type | BLE-to-WiFi Gateway |
| WiFi | IEEE 802.11b/g/n, single stream |
| Frequency | 2.412–2.484 GHz |
| WiFi Data Rate | Up to 150 Mbps |
| WiFi Antenna | Internal PCB antenna |
| WiFi Security | WPA/WPA2; WPA2-Enterprise |
| Bluetooth | Bluetooth 5 / BLE, LE Coded PHY |
| BLE Transmit Power | Max. +4 dBm |
| BLE Receiver Sensitivity | -97 dBm @ 1 Mbps; -104 dBm @ 125 Kbps |
| BLE Range | >100 m open space |
| BLE Antenna | 2 dBi dipole antenna |
| Protocols | TCP, HTTP/HTTPS, MQTT/MQTTS |
| BLE Receive Rate | Up to 200 packets/second |
| Power Input | USB Type-C, 5 V ±5%, 1 A |
| Average Power | 0.45 W |
| Operating Temperature | -20°C to +60°C |
| Humidity | Max. 95% RH, non-condensing |
| Dimensions | 54 × 54 × 19 mm, excluding antenna and connector |
| Unit Weight | 28 g, excluding BLE antenna |
| Certifications | Bluetooth, TELEC, CE/FCC |
Product Features
- BLE-to-WiFi Bridge:Data from iBeacon, Eddystone and custom BLE broadcasts is forwarded over 2.4 GHz WiFi.
- WiFi Performance:Available functions include IEEE 802.11b/g/n single-stream WiFi with data rates up to 150 Mbps and an internal PCB antenna.
- BLE Range:With the 2 dBi BLE antenna, the Bluetooth 5 LE Coded PHY range is more than 100 m in open space.
- Network Security:Available functions include WPA/WPA2 plus WPA2-Enterprise EAP-TLS, PEAP and TTLS modes.
- Cloud Data Protocols:Available functions include TCP, HTTP/HTTPS, MQTT/MQTTS, JSON upload and common IoT cloud platforms.
- Configuration and Updates:Web UI or Telnet configuration with remote software upgrade support.
Package Includes
- 1 x Ingics iGS03W WiFi BLE Gateway
- 1 x BLE antenna
- 1 x Holder
- 1 x 1 m USB Type-C cable
Frequently Asked Questions
What is the Ingics iGS03W WiFi BLE Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
