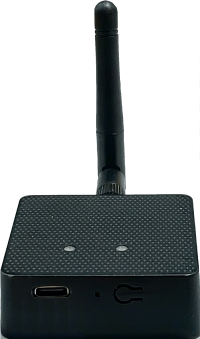

Ingics iGS03W WiFi BLE Gateway

Name: Ingics iGS03W WiFi BLE Gateway
Brand: TwoElectrons
SKU: 2EEN20158
Availability: InStock

No reviews yet

Expert Online
Consultation Remote
Configuration Support Onsite
Deployment Knowledge
Video

Low Stock, 1 left

Product Description

The Ingics iGS03W is a standard BLE-to-WiFi gateway for collecting Bluetooth Low Energy beacon and sensor broadcasts and forwarding them to cloud or private servers over 2.4 GHz WiFi. It supports Bluetooth 5 Long Range, TCP, HTTP(S), MQTT(S), JSON upload, and remote configuration for IoT, RTLS, building automation, and sensor-network applications.

Applications

Manufacturing & Industrial Smart Buildings Logistics & Supply Chain

Product Specifications

Manufacturer	Ingics
Model	iGS03W
Gateway Type	BLE-to-WiFi Gateway
WiFi	IEEE 802.11b/g/n, single stream
Frequency	2.412–2.484 GHz
WiFi Data Rate	Up to 150 Mbps
WiFi Antenna	Internal PCB antenna
WiFi Security	WPA/WPA2; WPA2-Enterprise
Bluetooth	Bluetooth 5 / BLE, LE Coded PHY
BLE Transmit Power	Max. +4 dBm
BLE Receiver Sensitivity	-97 dBm @ 1 Mbps; -104 dBm @ 125 Kbps
BLE Range	>100 m open space
BLE Antenna	2 dBi dipole antenna
Protocols	TCP, HTTP/HTTPS, MQTT/MQTTS
BLE Receive Rate	Up to 200 packets/second
Power Input	USB Type-C, 5 V ±5%, 1 A
Average Power	0.45 W
Operating Temperature	-20°C to +60°C
Humidity	Max. 95% RH, non-condensing
Dimensions	54 × 54 × 19 mm, excluding antenna and connector
Unit Weight	28 g, excluding BLE antenna
Certifications	Bluetooth, TELEC, CE/FCC

Product Features

BLE-to-WiFi Bridge: Collects iBeacon, Eddystone and custom BLE tag/sensor broadcasts and forwards data through 2.4 GHz WiFi.
WiFi Performance: Supports IEEE 802.11b/g/n single-stream WiFi with data rates up to 150 Mbps and an internal PCB antenna.
Long-range BLE: Bluetooth 5 LE Coded PHY reaches more than 100 m in open space using the 2 dBi BLE antenna.
Secure Networking: Supports WPA/WPA2 plus WPA2-Enterprise EAP-TLS, PEAP and TTLS modes.
Cloud-ready Protocols: Supports TCP, HTTP/HTTPS, MQTT/MQTTS, JSON upload and common IoT cloud platforms.
Remote Management: Web UI or Telnet configuration with remote software upgrade support.

Package Includes

1 x Ingics iGS03W WiFi BLE Gateway
1 x BLE antenna
1 x Holder
1 x 1 m USB Type-C cable

Other Information

Applications & Use Cases

BLE beacon and tag collection for RTLS
BLE sensor-network aggregation
Building and industrial automation
Security and access-management systems

Deployment Note

Actual WiFi and BLE range depend on access-point placement, radio interference, obstructions and deployment conditions.
