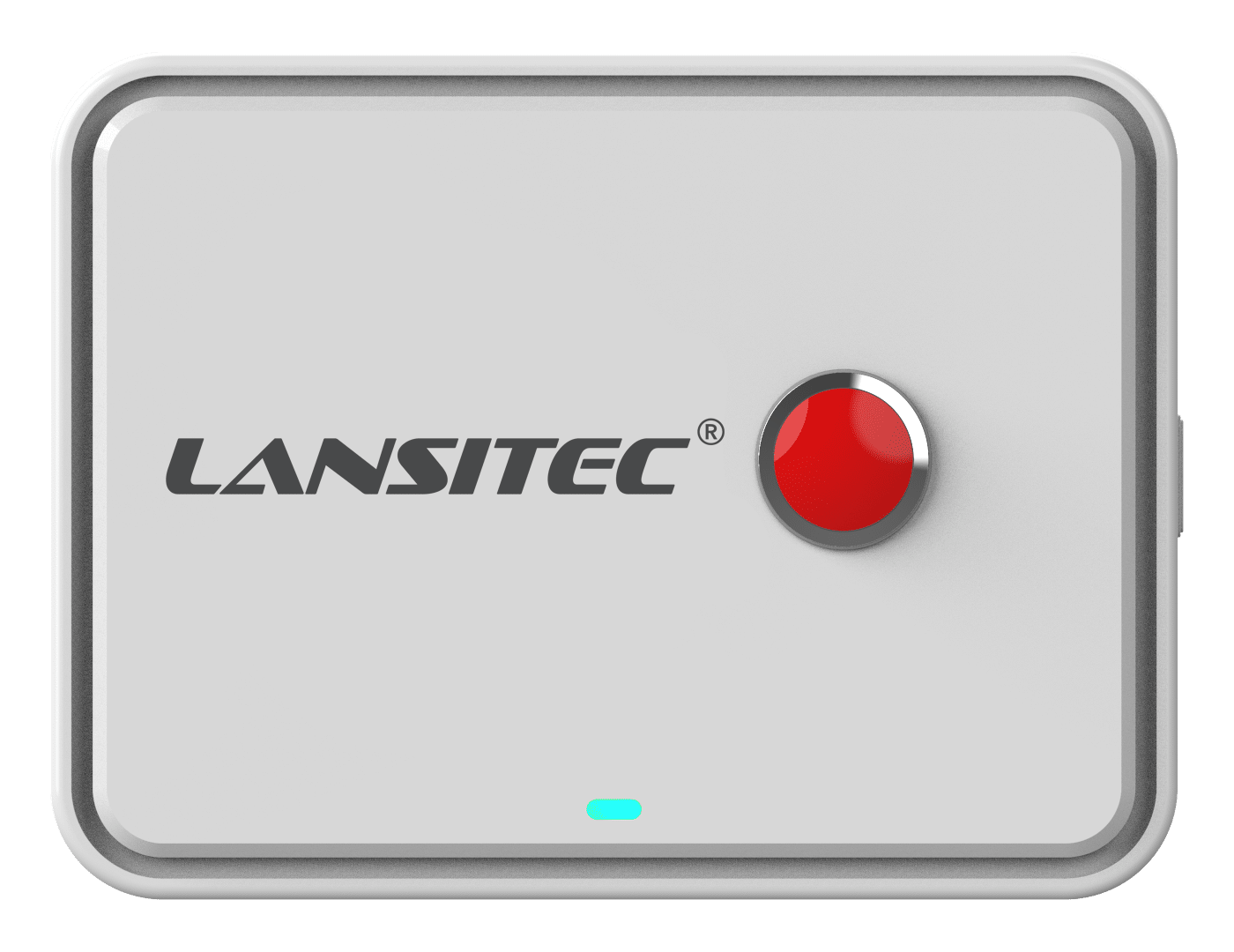

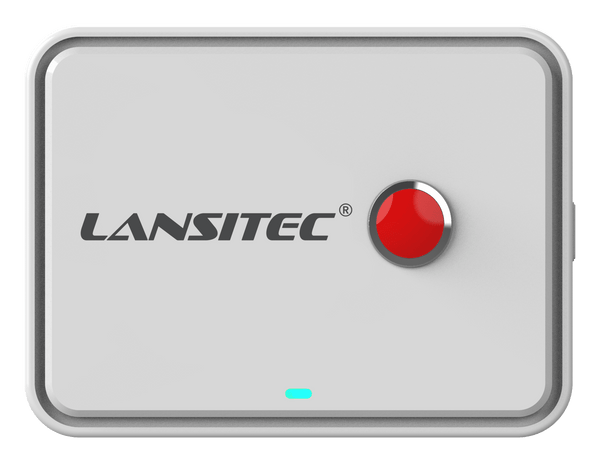

LoRaWAN SocketSync Proximity Gateway
Lead Time
Product Description
Compact BLE and LoRaWAN proximity gateway with configurable buzzer and LED alarms for indoor safety and tracking.
Product Specifications
| Product Specifications | |
|---|---|
| Manufacturer | Lansitec |
| Product family | IoT gateway |
| Dimension | 81*61*26mm (45mm, with the mounting lug) |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -45°C ~ +85°C |
| Operating Humidity | 0% ~ 95% (non-condensing) |
| Housing Material | ABS with fire retardant |
| Power | Battery |
| Li-ion rechargeable battery, 300mAh | AC Input |
| 85~305VAC | Standby Current |
| 5mA | Max. Current |
| 200mA | Switch |
| Mechanical | Status LED |
| Support | LoRaWAN |
| LoRaWAN Protocol | LoRaWAN 1.0.2B |
| LoRa Frequency | US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 |
| LoRa TX power | 0 to 20dBm |
| LoRa Sensitivity | -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
| LoRa Communication Distance | >1.5km in the urban area |
| Encryption | 300~30K |
| Bluetooth | Protocol |
| Bluetooth 5.0 | TX Power |
| 4, 0, -4, -8, -12, -16, -20dBm | Sensitivity |
| -96dBm | Receiving Range |
| 50m | Functions |
| Alarm RSSI Threshold | Default: -65dBm, adjustable |
| Technical reference | Manufacturer product page |
Product Features
- Proximity-Based Alarms
Trigger buzzer and LED flash alerts when beacons cross a customizable RSSI threshold, enhancing on-site safety and security. - Indoor Tracking & Geo-Fencing
Monitor movement within defined areas and receive notifications if assets, personnel, or visitors breach preset boundaries. - LoRaWAN & Bluetooth 5.0 Integration
Enjoy wide-area, cost-effective connectivity without compromising on low-power, long-range performance. - Easy Installation & Power Options
Comes with AC power support (85–305VAC), a rechargeable 300mAh battery for temporary power outages, and a compact ABS housing for simple mounting. - FOTA Over Bluetooth
Keep your device up to date with over-the-air firmware upgrades for continuous improvements in performance and security. Wide power supply - 85~305VAC
Package Includes
- 1 × LoRaWAN SocketSync Proximity Gateway
- Standard accessories for the selected configuration
- Digital product documentation
Other Information
Country of Origin: China
Warranty Information
1 Year Seller Warranty:
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Proximity-Based Alarms
- Indoor Tracking & Geo-Fencing
- LoRaWAN & Bluetooth 5.0 Integration
- Easy Installation & Power Options
- FOTA Over Bluetooth
SKU: 2EEN20008
