Milesight EM500-PT100-915M PN: T200 Platinum Temperature Sensor
Milesight EM500-PT100-915M PN: T200 Platinum Temperature Sensor
Low Stock, 1 left
Product Description

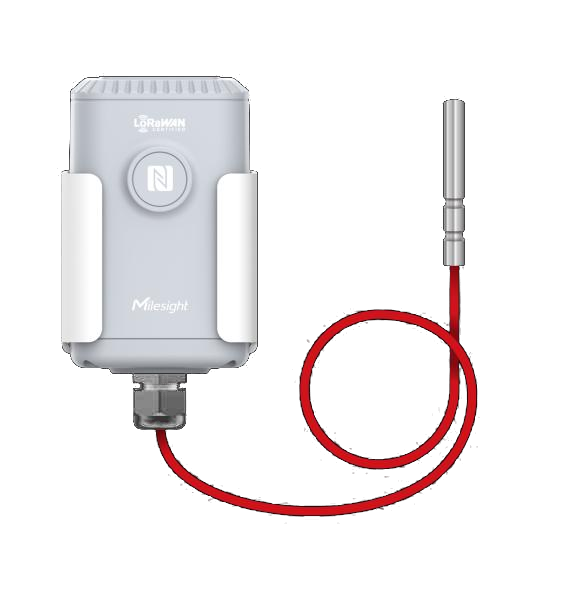

Milesight EM500-PT100-915M PN: T200 Platinum Temperature Sensor is a rugged industrial temperature-monitoring solution using a 3-wire platinum resistance temperature probe and battery-powered LoRaWAN® transmitter. The T200 probe provides contact temperature measurements for suitable liquids, gases, industrial machines, ovens, cooking processes, boiler and chimney monitoring and laboratory applications.
PN T200 specifications only: Measurement range −50°C to +200°C; Class A accuracy, typical ±0.6°C throughout −50°C to +200°C, and 0.1°C resolution. The 3-wire straight-tube probe uses 304 stainless steel, measures Ø4 × 30 mm and carries an IP67 rating. Standard cable length is 1.5 m (customizable), using Teflon cable rated −200°C to +290°C.
The IP67 LoRaWAN® transceiver supports OTAA/ABP Class A, Milesight D2D, NFC setup, local USB Type-C console and remote configuration by LoRaWAN downlink. Its features include storage for 1,000 records, data retrieval/retransmission and threshold/change alarms. The replaceable 19,000 mAh ER34615 Li-SOCl₂ battery has an OEM laboratory endurance estimate of up to 10 years at a 10-minute interval and 25°C; actual battery life depends on deployment conditions. Transceiver installation options include pole, wall and DIN rail.
Radio region: This existing TwoElectrons listing is EM500-PT100-915M T200, SKU 2ESE2187. Milesight offers IN865 as one possible regional frequency variant, but the exact radio frequency plan of the supplied 915M device must be confirmed for Indian deployment. Only the T200 probe specifications have been used; other EM500-PT100 probe variants are not included in this listing.
OEM manufacturer product page: Milesight EM500-PT100 Industrial Temperature Sensor.
Product Specifications
| OEM / Brand | Milesight |
| Product Model | EM500-PT100 |
| Part Number / Probe Variant | T200 |
| Listed Radio Model | EM500-PT100-915M |
| TwoElectrons SKU | 2ESE2187 |
| Sensor Technology | Platinum resistance temperature detector (RTD), 3-wire |
| T200 Temperature Measurement Range | −50°C to +200°C |
| T200 Accuracy Class | Class A |
| T200 Typical Measurement Accuracy | ±0.6°C (−50°C to +200°C) |
| Temperature Measurement Resolution | 0.1°C |
| T200 Probe Shape | Straight tube |
| T200 Probe Material | 304 stainless steel |
| T200 Probe Dimensions | Ø4 × 30 mm |
| T200 Probe Ingress Protection | IP67 |
| T200 Cable Jacket | Teflon |
| T200 Cable Operating Temperature | −200°C to +290°C |
| Standard Probe Cable Length | 1.5 m (customizable) |
| Probe Installation Method | Contact |
| Wireless Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal |
| LoRaWAN Frequency Options | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 |
| Radio Transmission Power | 16 dBm at 868 MHz / 20 dBm at 915 MHz / 19 dBm at 470 MHz |
| Receiver Sensitivity | −137 dBm @300 bps |
| Activation / LoRaWAN Device Class | OTAA / ABP, Class A |
| Line-of-Sight Range | Up to 10 km, depending on site conditions |
| Internal Status LED | 1 |
| Internal Power / Reset Button | 1 |
| USB | Internal USB Type-C console and configuration |
| Power On / Off | NFC / internal power button |
| Configuration | NFC mobile app, PC software via USB Type-C, LoRaWAN downlink |
| Data Storage | 1,000 local entries |
| Data Features | Retrieval and retransmission |
| Alarm Features | Threshold alarm, change alarm |
| Additional Function | Milesight D2D Controller |
| Battery Specification | 1 × 19,000 mAh ER34615 Li-SOCl₂, replaceable |
| Battery Life Estimate | Up to 10 years at 10-minute interval, 25°C, OEM laboratory guidance |
| Transceiver Operating Temperature | −30°C to +70°C |
| Transceiver Relative Humidity | 0–100% non-condensing |
| Transceiver IP Rating | IP67 |
| Transceiver Housing / Color | ABS + PC / grey |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm |
| System Weight | 362.7 g with battery, mounting bracket and probe |
| Transceiver Installation | Pole, wall or DIN rail |
| OEM Regulatory Approvals | CE / FCC / ISED / ICASA / Telec |
| OEM Environmental Compliance | RoHS |
Product Features
- Only the Milesight EM500-PT100 PN T200 variant is covered in this product listing.
- Temperature measurement range −50°C to +200°C; Class A accuracy, typical ±0.6°C across the specified range.
- Three-wire platinum RTD connection with 0.1°C temperature resolution.
- T200 uses a 304 stainless steel straight-tube sensing probe with Ø4 mm diameter and 30 mm length.
- Probe ingress protection is IP67, separately from the IP67 transceiver.
- Standard sensor cable is 1.5 m (customizable), Teflon insulation rated from −200°C to +290°C.
- LoRaWAN regional frequency options include CN470, IN865, RU864, EU868, US915, AU915, KR920 and AS923; confirm ordered radio suffix.
- OTAA/ABP Class A wireless operation with internal antenna and Milesight D2D Controller support.
- Transmit power 16 dBm (868 MHz), 20 dBm (915 MHz), 19 dBm (470 MHz), receiver sensitivity −137 dBm @300 bps.
- Line-of-sight radio transmission can reach up to 10 km under favorable operating conditions.
- NFC mobile-app configuration, internal USB Type-C console/PC configuration and LoRaWAN downlink setting changes.
- Local memory stores up to 1,000 historical records, supporting retrieval, retransmission, threshold alarms and change alarms.
- An internal LED indicator and internal power/reset button are provided.
- One replaceable 19,000 mAh ER34615 Li-SOCl₂ battery; OEM quotes approximately 10 years laboratory life at a 10-minute interval and 25°C.
- Transceiver ambient temperature −30°C to +70°C; humidity 0–100% RH, non-condensing.
- Grey ABS+PC transmitter housing measuring 105.4 × 71 × 69.5 mm.
- System assembly weight 362.7 g including battery, mounting bracket and probe as tested by the OEM.
- LoRaWAN transmitter mounts on pole, wall or DIN rail; sensor probe operates by contact placement.
- OEM-listed approvals CE, FCC, ISED, ICASA, Telec and environmental RoHS; actual regional device certificates should be confirmed.
Package Includes
- 1 × Milesight EM500-PT100-915M temperature monitoring system, part number T200
- 1 × T200 straight 304 stainless steel IP67 platinum probe, standard 1.5 m Teflon cable (configuration to be confirmed)
- Battery, mounting bracket, fasteners and other accessories: verify supplier packing list and final quotation
Frequently Asked Questions
What is the EM500-PT100-915M PN T200 Platinum Temperature Sensor used for?
What are the main features of the T200 model?
What specifications should I check before choosing this product?
How should I prepare the EM500-PT100 T200 sensor for use?
What is included in the package and what is the warranty?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Platinum temperature sensor with PN T200 Class A, 3-wire RTD probe
- T200 temperature range −50°C to +200°C; typical ±0.6°C accuracy
- 0.1°C resolution with 304 stainless steel Ø4 × 30 mm straight probe
- IP67 probe rating and IP67 weatherproof LoRaWAN® transceiver
- Corrosion-resistant Teflon cable rated −200°C to +290°C, 1.5 m standard length
- OTAA/ABP LoRaWAN Class A plus Milesight D2D
- Up to 10 km line-of-sight wireless range in favorable conditions
- Replaceable 19,000 mAh ER34615 Li-SOCl₂ battery; up to 10 years OEM lab estimate
- Configure by NFC mobile app, USB Type-C PC software or LoRaWAN downlink
- 1,000 stored readings, retransmission, retrieval, threshold and change alarms
- Remote data monitoring with compatible gateways/network servers and Milesight IoT Cloud
- Industrial equipment, liquid/gas, boiler, oven and laboratory temperature applications
