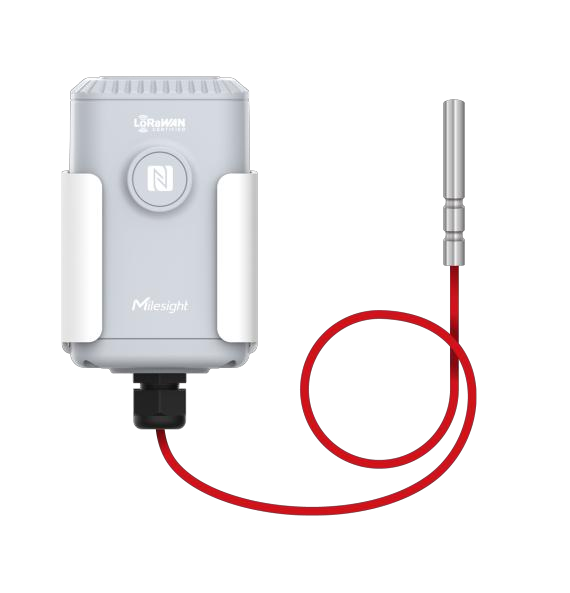

Milesight EM500-PT100-915M PN: T500 Platinum Temperature Sensor
Milesight EM500-PT100-915M PN: T500 Platinum Temperature Sensor
Low Stock, 1 left
Product Description
Milesight EM500-PT100-915M PN: T500 Platinum Temperature Sensor is a long-range industrial temperature monitoring system designed for high-temperature processes. This product uses the PN T500 three-wire platinum resistance temperature probe for compatible industrial machinery, ovens, boilers, chimneys, liquid and gas process equipment, and laboratory monitoring, reporting measurements over LoRaWAN®.
T500 probe only: Measurement range −50°C to +500°C, Class A accuracy, 0.1°C resolution and manufacturer-listed typical accuracy of ±0.5°C (−50°C to +170°C) and ±1.2°C (+170°C to +500°C). The straight stainless-steel 304 probe is Ø4 × 30 mm, IP30, with fiberglass cable rated −50°C to +500°C and a standard cable length of 1.5 m (customizable). The IP67 rating applies to the separate LoRaWAN transmitter; the T500 probe is IP30.
The battery-operated transceiver supports LoRaWAN® OTAA/ABP Class A and Milesight D2D, remote downlink configuration, NFC mobile-app settings and USB Type-C PC configuration. It stores up to 1,000 measurement records and provides data retransmission, retrieval, threshold and change alarms. The replaceable 19,000 mAh ER34615 Li-SOCl₂ battery has an OEM laboratory life estimate of 10 years with 10-minute reports at 25°C. The transmitter itself operates from −30°C to +70°C, not at the T500 probe's maximum sensing temperature.
Regional frequency: TwoElectrons SKU 2ESE2188 is listed as EM500-PT100-915M T500. IN865 is one of the manufacturer’s regional LoRaWAN options, but the frequency compatibility of the supplied 915M unit must be confirmed for Indian installation. Specifications on this page are for T500 only, not other PT100 probe models.
Product Specifications
| Brand / OEM | Milesight |
| Model | EM500-PT100 |
| Exact Part Number | T500 |
| Listed Frequency Suffix | 915M |
| TwoElectrons SKU | 2ESE2188 |
| Sensing Technology | 3-wire platinum resistance temperature detector (RTD) |
| T500 Temperature Measurement Range | −50°C to +500°C |
| T500 Accuracy Class | Class A |
| T500 Typical Accuracy, −50°C to +170°C | ±0.5°C |
| T500 Typical Accuracy, +170°C to +500°C | ±1.2°C |
| Temperature Resolution | 0.1°C |
| T500 Probe Type | Straight-tube, customizable |
| T500 Probe Material | 304 stainless steel |
| T500 Probe Dimensions | Ø4 × 30 mm |
| T500 Probe Ingress Protection | IP30 |
| T500 Sensor Cable Material | Fiberglass |
| T500 Cable Temperature Rating | −50°C to +500°C |
| Probe Cable Length | 1.5 m (customizable) |
| Temperature Probe Installation | Contact |
| Wireless Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal |
| LoRaWAN Frequency Options | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 (regional models) |
| TX Power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Receiver Sensitivity | −137 dBm @300 bps |
| LoRaWAN Activation & Class | OTAA/ABP, Class A |
| Wireless Line-of-Sight Range | Up to 10 km, subject to site conditions |
| Internal LED | 1 × indicator |
| Internal Power/Reset Button | 1 |
| USB Interface | Internal USB Type-C for console/configuration |
| Power On/Off | NFC or internal power button |
| Configuration Methods | Mobile app via NFC, PC via USB Type-C, LoRaWAN downlink |
| Stored Records | 1,000 entries |
| Record Management | Retrieval and retransmission |
| Alerting | Threshold alarm and temperature change alarm |
| Additional Feature | Milesight D2D Controller |
| Battery / Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ battery, replaceable |
| Manufacturer Battery Life Estimate | 10 years, 10-minute report interval at 25°C in lab conditions |
| Transmitter Operating Temperature | −30°C to +70°C |
| Transmitter Relative Humidity | 0–100% non-condensing |
| Transmitter Ingress Protection | IP67 |
| Transmitter Housing | ABS + PC, grey |
| Transmitter Dimensions | 105.4 × 71 × 69.5 mm |
| System Weight (OEM) | 362.7 g with battery, mounting bracket and probe |
| Transmitter Mounting | Pole, wall or DIN rail |
| OEM Regulatory Approvals | CE, FCC, ISED, ICASA, Telec |
| OEM Environmental Compliance | RoHS |
Product Features
- This product is the Milesight EM500-PT100 fitted with PN T500 only; no other PT100 probe variant is supplied by this listing.
- 3-wire platinum resistance temperature detector (RTD) with Class A accuracy.
- T500 contact-temperature measurement range is −50°C to +500°C, with 0.1°C resolution.
- OEM typical accuracy is ±0.5°C for −50°C to +170°C and ±1.2°C for +170°C to +500°C.
- Straight sensing tip is 304 stainless steel, Ø4 mm × 30 mm.
- The T500 probe has IP30 ingress protection; it is not IP67.
- T500 cable insulation is fiberglass, rated −50°C to +500°C; standard probe cable length 1.5 m, customizable.
- LoRaWAN® regional frequency variants include CN470, IN865, RU864, EU868, US915, AU915, KR920 and AS923.
- Transmitter supports LoRaWAN OTAA/ABP Class A, Milesight D2D and an internal antenna.
- Radio TX power 16 dBm (868 MHz), 20 dBm (915 MHz) or 19 dBm (470 MHz); RX sensitivity −137 dBm at 300 bps.
- Manufacturer advertises up to 10 km of line-of-sight wireless transmission under favorable conditions.
- An internal LED indicator, power/reset button and USB Type-C console interface are included.
- Configuration through NFC mobile app, PC USB Type-C software or LoRaWAN downlink.
- Locally stores 1,000 historical records and supports data retrieval/retransmission, threshold alarms and change alarms.
- One replaceable 19,000 mAh ER34615 Li-SOCl₂ battery; 10-year battery estimate tested at 10-minute interval and 25°C.
- Separate IP67 industrial transmitter operates at −30°C to +70°C and 0–100% non-condensing relative humidity.
- Grey ABS + PC transmitter case measures 105.4 × 71 × 69.5 mm.
- OEM assembly weight is 362.7 g including battery, bracket and probe.
- Pole, wall or DIN-rail mount for transmitter; probe uses contact temperature installation.
- OEM regulatory approvals CE, FCC, ISED, ICASA and Telec, with RoHS environmental compliance; verify actual regional shipment documentation.
- SKU 2ESE2188 is designated 915M; IN865 capability of the supplied 915M variant must be confirmed for India.
Package Includes
- 1 × Milesight EM500-PT100-915M LoRaWAN industrial temperature monitoring system configured for PN T500
- 1 × T500 Class A 304 stainless steel Ø4 × 30 mm temperature probe, standard 1.5 m fiberglass sensor cable (confirm configuration with supplier)
- Battery and mounting bracket/hardware inclusion to be verified against supplier quotation and packing list
Frequently Asked Questions
What is the Milesight EM500-PT100-915M PN T500 temperature sensor used for?
What are the main features of the T500 model?
What specifications should I check before choosing the T500 sensor?
How should I prepare this product for installation?
What is included in the package and what is the warranty?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- PN T500 Class A, 3-wire platinum temperature sensor for −50°C to +500°C contact measurement
- 0.1°C resolution; typical ±0.5°C from −50°C to +170°C and ±1.2°C from +170°C to +500°C
- 304 stainless-steel straight probe measuring Ø4 × 30 mm
- T500 sensing probe is IP30, while the separate LoRaWAN® transmitter is IP67
- Fiberglass cable rated −50°C to +500°C; 1.5 m standard length, customizable
- LoRaWAN® OTAA/ABP Class A and Milesight D2D communication
- Wireless distance up to 10 km line of sight under favorable operating conditions
- Replaceable 19,000 mAh ER34615 battery with OEM laboratory estimate of 10-year life
- NFC mobile app, PC USB Type-C or remote LoRaWAN downlink setup
- Data storage of 1,000 entries plus retransmission, retrieval and threshold/change alarms
- IP67 transmitter supports pole, wall or DIN-rail installation
- Suitable for high-temperature industrial process, oven, machine, boiler and laboratory monitoring
