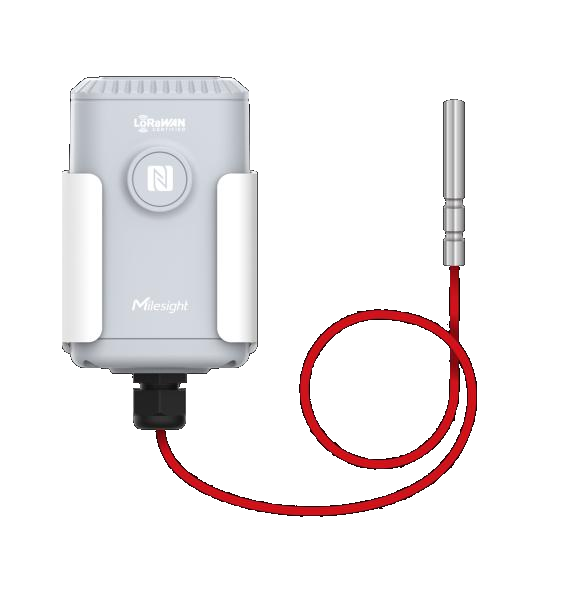

Milesight EM500-PT100-915M PN: T800 Platinum Temperature Sensor
Milesight EM500-PT100-915M PN: T800 Platinum Temperature Sensor
Low Stock, 1 left
Product Description
Milesight EM500-PT100-915M PN: T800 Platinum Temperature Sensor is a long-range industrial contact temperature monitoring device. This variant uses a 3-wire Class A platinum resistance temperature probe intended for suitable high-temperature industrial machinery, ovens, process equipment, chimneys, boilers and laboratory processes. Readings are transmitted through an IP67 LoRaWAN® transceiver to compatible gateways and monitoring platforms.
PN T800 specifications only: Measurement range −50°C to +800°C, 0.1°C resolution, and manufacturer-listed typical accuracy of ±0.5°C (−50°C to +170°C), ±1°C (+170°C to +420°C), and ±2°C (+420°C to +800°C). The straight contact probe is made of 316 stainless steel and measures Ø5 × 50 mm. The probe is rated IP30, with a fiberglass cable rated −50°C to +800°C and standard length 1.5 m (customizable).
The separate transmitter has an IP67 enclosure and operates at ambient temperatures of −30°C to +70°C; it must remain outside the high-temperature sensing zone. LoRaWAN® OTAA/ABP Class A, Milesight D2D, NFC/mobile app configuration, USB Type-C PC console and remote LoRaWAN downlink settings are supported. Features include storage of 1,000 readings, retransmission, retrieval and threshold/change alarms. The replaceable 19,000 mAh ER34615 Li-SOCl₂ battery has an OEM laboratory estimate of up to 10 years at a 10-minute reporting interval and 25°C.
Regional frequency note: Existing TwoElectrons SKU 2ESE2189 is listed as EM500-PT100-915M with PN T800. The OEM lists an IN865 regional option, but the specific 915M device's frequency-plan suitability for India must be confirmed with the supplier. Only the T800 probe specifications are included here.
OEM product reference: Milesight EM500-PT100 Industrial Temperature Sensor.
Product Specifications
| Brand / Manufacturer | Milesight |
| Product Model | EM500-PT100 |
| Exact Probe Part Number | T800 |
| TwoElectrons SKU | 2ESE2189 |
| Product Variant | EM500-PT100-915M, PN T800 |
| Sensor Technology | Platinum resistance temperature detector (RTD), 3-wire |
| T800 Temperature Measurement Range | −50°C to +800°C |
| T800 Accuracy Class | Class A |
| T800 Typical Accuracy, −50°C to +170°C | ±0.5°C |
| T800 Typical Accuracy, +170°C to +420°C | ±1°C |
| T800 Typical Accuracy, +420°C to +800°C | ±2°C |
| Temperature Resolution | 0.1°C |
| T800 Probe Type | Straight tube (customizable) |
| T800 Probe Material | 316 stainless steel |
| T800 Probe Diameter | 5 mm |
| T800 Probe Length | 50 mm |
| T800 Probe Dimensions | Ø5 × 50 mm |
| T800 Probe Ingress Protection | IP30 |
| T800 Sensor Cable Insulation | Fiberglass |
| T800 Cable Temperature Rating | −50°C to +800°C |
| Sensor Cable Length | 1.5 m standard (customizable) |
| Probe Installation | Contact measurement |
| Wireless Technology | LoRaWAN®, Milesight D2D |
| Internal Antenna | Yes |
| Available Radio Frequency Regions | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4 |
| Transmitter Power | 16 dBm at 868 MHz / 20 dBm at 915 MHz / 19 dBm at 470 MHz |
| Receiver Sensitivity | −137 dBm at 300 bps |
| LoRaWAN Activation and Class | OTAA / ABP, Class A |
| Wireless Range | Up to 10 km line-of-sight (environment dependent) |
| Status LED | 1 internal LED |
| Power / Reset Button | 1 internal button |
| USB Interface | 1 internal USB Type-C for console and configuration |
| Power On / Off | NFC or internal power button |
| Configuration | NFC mobile app, USB Type-C PC software, LoRaWAN downlink |
| Data Storage | Up to 1,000 local records |
| Data Transfer Features | Retrieval and retransmission |
| Alarms | Threshold alarm and change alarm |
| Additional Device Feature | Milesight D2D Controller |
| Power Supply | 1 × 19,000 mAh ER34615 Li-SOCl₂ battery, replaceable |
| Battery Life Estimate | 10 years at 10-minute interval and 25°C under OEM laboratory conditions |
| Transceiver Operating Temperature | −30°C to +70°C |
| Transceiver Humidity | 0–100% relative humidity, non-condensing |
| Transceiver Ingress Protection | IP67 |
| Transceiver Housing / Colour | ABS + PC, grey |
| Transceiver Dimensions | 105.4 × 71 × 69.5 mm |
| System Weight Listed by OEM | 362.7 g with battery, mounting bracket and probe |
| Transceiver Mounting | Pole, wall or DIN rail |
| OEM Regulatory Approvals | CE, FCC, ISED, ICASA, Telec |
| OEM Environmental Compliance | RoHS |
Product Features
- The Milesight EM500-PT100 system under SKU 2ESE2189 is configured with only the PN T800 probe.
- T800 is a Class A, three-wire platinum resistance temperature sensor with a −50°C to +800°C measuring range.
- Temperature resolution is 0.1°C.
- Typical accuracy is ±0.5°C from −50°C to +170°C.
- Typical accuracy is ±1°C from +170°C to +420°C.
- Typical accuracy is ±2°C from +420°C to +800°C.
- T800 probe material is 316 stainless steel, in a straight tube Ø5 × 50 mm.
- T800 probe ingress protection is IP30, not IP67.
- The T800 probe uses fiberglass-insulated cable rated −50°C to +800°C; standard cable is 1.5 m, customizable.
- The transmitter is a separate IP67 unit and operates only at ambient −30°C to +70°C; it must not be exposed to +800°C.
- LoRaWAN frequencies offered by the OEM include CN470, IN865, RU864, EU868, US915, AU915, KR920 and AS923 variants.
- LoRaWAN OTAA/ABP Class A, Milesight D2D, internal antenna and receiver sensitivity −137 dBm at 300 bps.
- Radio transmit power 16 dBm (868 MHz), 20 dBm (915 MHz), and 19 dBm (470 MHz).
- Wireless range can reach 10 km line-of-sight under suitable conditions.
- One internal LED indicator, one internal power/reset button, and internal USB Type-C configuration console.
- Local setup via NFC mobile application or USB Type-C PC software; remote configuration by compatible LoRaWAN downlink.
- Data logging for up to 1,000 entries with retrieval, retransmission, threshold alarms and temperature-change alarms.
- Battery: 1 × 19,000 mAh ER34615 Li-SOCl₂, replaceable. OEM lab guidance estimates 10 years at a 10-minute interval and 25°C.
- Transceiver housing ABS + PC, grey, 105.4 × 71 × 69.5 mm, 0–100% non-condensing humidity.
- Transceiver pole, wall or DIN-rail mounting; probe is for contact-temperature installation.
- OEM-listed certifications are CE, FCC, ISED, ICASA, Telec and RoHS; verify documentation for the supplied radio region.
- SKU suffix 915M does not by itself confirm compatibility with India's IN865 plan; supplier confirmation is required.
Package Includes
- 1 × Milesight EM500-PT100-915M industrial temperature-monitoring system configured with PN T800
- 1 × T800 straight 316 stainless steel probe, Ø5 × 50 mm, with standard 1.5 m fiberglass cable (confirm supplied configuration)
- Battery, mounting bracket, screws, straps and other accessories: verify actual package contents with supplier quotation and packing list
Frequently Asked Questions
What is the EM500-PT100-915M T800 Platinum Temperature Sensor used for?
What are the main features of the T800 model?
What specifications should I check before choosing this product?
How should I prepare the T800 sensor for installation?
What is included in the package and what is the warranty?
Other Information
Warranty Information
1 Year Seller Warranty
This item is covered with a standard warranty of 1 year from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- PN T800 Class A 3-wire platinum RTD sensor for −50°C to +800°C contact temperature measurement
- 0.1°C temperature resolution and three manufacturer-defined typical accuracy bands
- Typical accuracy ±0.5°C (−50°C to +170°C), ±1°C (+170°C to +420°C), ±2°C (+420°C to +800°C)
- 316 stainless steel straight probe measuring Ø5 × 50 mm, rated IP30
- Fiberglass sensor cable rated −50°C to +800°C, standard length 1.5 m (customizable)
- Separate IP67 LoRaWAN® transmitter for harsh industrial environments
- LoRaWAN® OTAA/ABP Class A, Milesight D2D and internal antenna
- Long-range wireless transmission up to 10 km line-of-sight in favorable conditions
- Replaceable 19,000 mAh ER34615 Li-SOCl₂ battery; 10-year OEM lab life estimate
- Local NFC app, PC USB Type-C and remote downlink configuration
- Up to 1,000 locally stored readings, retrieval/retransmission, threshold and change alerts
- High-temperature machine, process, boiler, chimney, oven and laboratory monitoring
SKU: 2ESE2189
