Milesight EM500-UDL-915M PN: C050 Ultrasonic Distance and Level Sensor

No reviews yet
Expert Consultation
Book now → Remote Configuration
Get support → Onsite Deployment
Send email → Knowledge Video
Send email →
Low Stock, 1 left

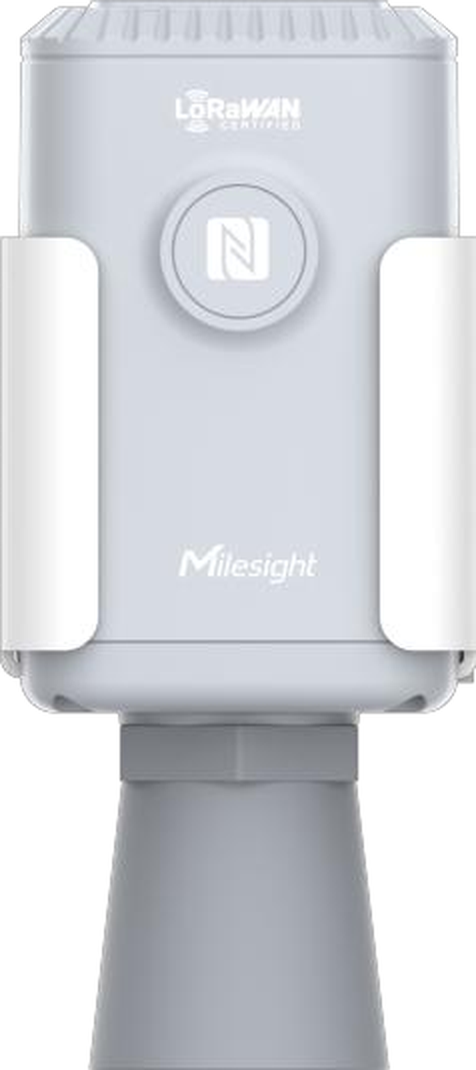

Milesight EM500-UDL manufacturer product-family illustration; C050 actual housing is specified black-grey and may differ from this grey illustration
  • Milesight EM500-UDL manufacturer product-family illustration; C050 actual housing is specified black-grey and may differ from this grey illustration

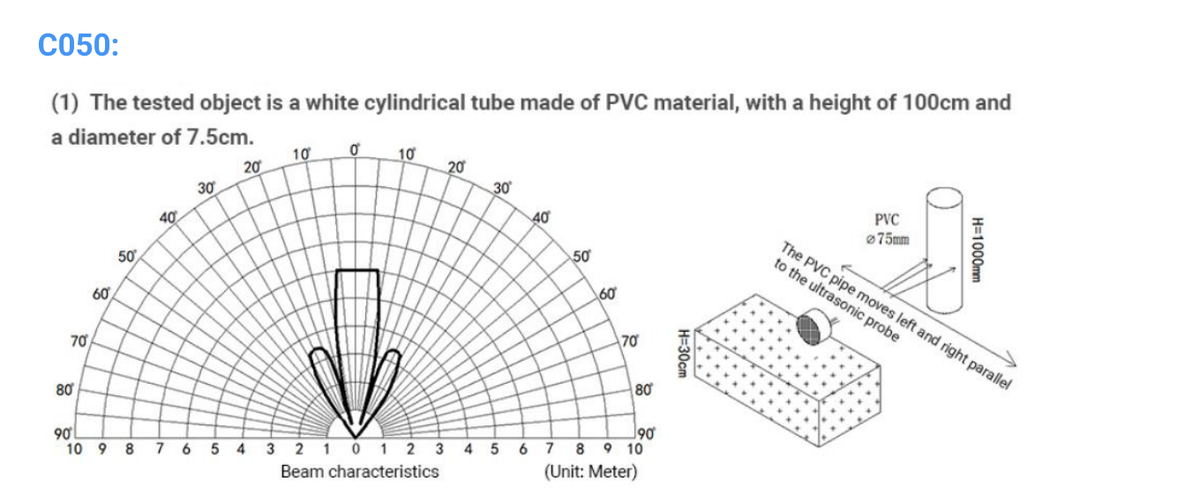

  • Milesight EM500-UDL C050 ultrasonic narrow-beam pattern, manufacturer datasheet, page 3

Product Description

Milesight EM500-UDL-915M PN: C050 Ultrasonic Distance and Level Sensor provides long-range, non-contact ultrasonic distance and liquid-level monitoring for industrial and outdoor IoT applications. The C050 version measures 0.25 m to 5 m, with 1 mm resolution and OEM-defined measurement accuracy of ±(1 + 0.3% × S) cm, where S is distance. The C050 version is suited to appropriate tanks, reservoirs and other installations where ultrasonic beam geometry and the measuring interval are compatible.

C050-specific physical specifications: Black-grey ABS + PC enclosure, IP67 ingress protection, −15°C to +60°C operating temperature, 0–80% RH non-condensing, 156.1 × 71 × 69.5 mm dimensions, and 362.7 g manufacturer-specified weight including battery and mounting bracket. The unit supports pole, wall or DIN-rail mounting. The lower limit of 0.25 m is the minimum specified sensing distance; maintain a clear ultrasonic path and refer to the manufacturer's C050 beam pattern.

Wireless connectivity includes LoRaWAN® OTAA/ABP Class A and Milesight D2D, supporting compatible LoRaWAN gateways and network servers. Configure locally with NFC mobile app or USB Type-C PC software, or remotely through LoRaWAN downlink. The sensor stores up to 1,000 historical records and supports retransmission, retrieval, threshold alerts and change alarms. Its replaceable 19,000 mAh ER34615 Li-SOCl₂ battery is rated for up to 10 years under OEM laboratory conditions (10-minute interval, 25°C); actual performance varies.

Model and frequency: TwoElectrons SKU 2ESE2180 identifies EM500-UDL-915M, PN C050. Although IN865 appears in Milesight's product-family frequency list, compatibility of the supplied 915M hardware with India's IN865 plan must be verified with the supplier. This listing uses C050 measurement specifications only. Product image shows a family illustration; the actual C050 variant is specified as black-grey.

OEM product reference: Milesight EM500-UDL Ultrasonic Distance/Level Sensor.

Applications

Tank Level Monitoring Liquid Level Monitoring Water Level Monitoring Municipal Water Management

Product Specifications

ManufacturerMilesight
Product FamilyEM500-UDL
Exact Measuring VariantC050
Model / Radio SuffixEM500-UDL-915M
TwoElectrons SKU2ESE2180
Product TypeUltrasonic Distance and Level Sensor
Measurement PrincipleNon-contact ultrasonic
C050 Measuring Range0.25–5 m
C050 Accuracy±(1 + 0.3% × S) cm; S = distance (as stated by OEM)
C050 Resolution1 mm
C050 Minimum Specified Measurement Distance0.25 m
C050 Operating Temperature−15°C to +60°C
C050 Relative Humidity0–80% RH, non-condensing
C050 Ingress ProtectionIP67
C050 Housing MaterialABS + PC
C050 Housing ColorBlack-grey
C050 Dimensions156.1 × 71 × 69.5 mm
C050 Weight362.7 g including battery and mounting bracket
Mounting MethodPole, wall or DIN rail
Wireless CommunicationLoRaWAN®, Milesight D2D
Internal AntennaYes
Supported Regional Frequency OptionsCN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Radio Transmission Power16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz)
Receiver Sensitivity−137 dBm at 300 bps
Activation / LoRaWAN ClassOTAA/ABP, Class A
Radio Line-of-Sight DistanceUp to 10 km in ideal line-of-sight conditions
Internal LED1 × indicator
Internal Button1 × Power/Reset button
Internal USB Connection1 × USB Type-C for configuration/console
Power On / OffNFC or internal button
ConfigurationNFC mobile app, PC via USB Type-C, remote LoRaWAN downlink
Local Reading Storage1,000 entries
Record FunctionsData retransmission and retrievability
Alarm FunctionsThreshold and change alarm
Direct Device FunctionMilesight D2D Controller
Power Supply1 × 19,000 mAh ER34615 Li-SOCl₂ battery, replaceable
Battery Life (Laboratory Guidance)10 years at 10-minute interval and 25°C
Regulatory Approvals Listed by OEMCE, FCC, ISED, Telec, LoRaWAN Certified
EMC StandardsEN 55032 / EN 55035
EMS StandardsIEC 61000-4-2 Level 3 / IEC 61000-4-3 Level 2 / IEC 61000-4-8 Level 4
Radio StandardsFCC Part 15B / FCC Part 15.247 / EN 300 330 / EN 301 489-1/3 / EN 300 220-1/2
Safety StandardEN 62368-1
Environmental ComplianceRoHS
Radio Region for IndiaIN865 family option listed; 915M device suitability must be verified

Product Features

  1. Product is Milesight EM500-UDL-915M fitted with PN C050 ultrasonic measurement type only.
  2. Ultrasonic measurement is non-contact, suitable for compatible liquids and solid surfaces with a clear echo path.
  3. C050 measures from 0.25 m up to 5 m.
  4. OEM accuracy expression: ±(1 + 0.3% × S) cm, S = distance; formula reproduced directly from the manufacturer's C050 column.
  5. Measurement resolution is 1 mm.
  6. The minimum specified measurement distance is 0.25 m; maintain appropriate sensor-to-target clearance.
  7. Consult the C050 narrow-beam test patterns provided on page 3 of the supplied datasheet.
  8. Operating temperature for C050 is −15°C to +60°C.
  9. Operating humidity 0–80% non-condensing.
  10. IP67 rated ABS + PC housing in black-grey (specified color for C050).
  11. Dimensions 156.1 × 71 × 69.5 mm.
  12. Manufacturer stated weight 362.7 g with battery and mounting bracket.
  13. Supported installation on pole, wall or DIN rail.
  14. LoRaWAN® wireless with internal antenna, OTAA/ABP Class A and Milesight D2D.
  15. Radio frequency regional options include CN470, IN865, RU864, EU868, US915, AU915, KR920 and AS923-1/2/3/4.
  16. Transmit power 16 dBm on 868 MHz, 20 dBm on 915 MHz or 19 dBm on 470 MHz according to regional radio version.
  17. Receiver sensitivity −137 dBm at 300 bps.
  18. Wireless line-of-sight range up to 10 km; site conditions can substantially change range.
  19. 1 internal LED indicator, 1 internal power/reset button and internal USB Type-C console.
  20. Device on/off via NFC or internal power button.
  21. Local NFC configuration using mobile app or PC software via USB Type-C; remote settings via downlink.
  22. Data storage up to 1,000 entries, data retransmission and retrievability.
  23. Threshold alarm, change alarm and Milesight D2D Controller functionality.
  24. Power supply 1 × 19,000 mAh ER34615 Li-SOCl₂ replaceable battery.
  25. OEM battery reference 10 years at 10-minute interval and 25°C under laboratory conditions; actual lifetime varies.
  26. OEM lists regulatory approvals CE, FCC, ISED, Telec and LoRaWAN Certified; EMC EN 55032/55035, safety EN 62368-1 and RoHS environmental compliance.
  27. IN865 is available within the EM500-UDL family; India deployment of supplied 915M radio unit requires supplier confirmation.

Package Includes

  • 1 × Milesight EM500-UDL-915M PN C050 Ultrasonic Distance and Level Sensor
  • Specified power is 1 × 19,000 mAh ER34615 Li-SOCl₂ replaceable battery; confirm supplied fitting/inclusion
  • Mounting bracket, fixing screws/straps, installation accessories and other carton contents must be verified against supplier packing list

Frequently Asked Questions

What is the Milesight EM500-UDL-915M C050 Ultrasonic Distance and Level Sensor used for?
The C050 sensor measures object distance or liquid level from 0.25 m to 5 m without physical contact and transmits readings over LoRaWAN. It can support tank, reservoir and municipal water-level monitoring where its measurement range and beam geometry are suitable.
What are the main features of the C050 sensor?
C050 offers non-contact ultrasonic sensing from 0.25–5 m, 1 mm resolution and an OEM accuracy formula of ±(1 + 0.3% × S) cm, with S defined as distance. It has an IP67 black-grey housing, LoRaWAN Class A, Milesight D2D, NFC/remote configuration, historical data storage and a replaceable 19,000 mAh battery.
What specifications should I check before choosing the C050 variant?
Check the 0.25–5 m measurement span, C050 accuracy expression ±(1 + 0.3% × S) cm (S = distance), 1 mm resolution, IP67 rating, −15°C to +60°C operating temperature and 0–80% non-condensing relative humidity. Check C050 beam characteristics and verify whether the 915M radio hardware suits India's IN865 band.
How should I prepare the C050 sensor for use?
Install it vertically above the monitored target on a pole, wall or DIN rail with an unobstructed ultrasonic path and at least 0.25 m clearance. Avoid vessel walls or inlet areas that may cause false echoes. Configure locally with NFC mobile app/USB Type-C PC software or remotely through LoRaWAN downlink after registering with a compatible gateway and network server.
What is included in the package and what is the warranty?
The listing is for one Milesight EM500-UDL-915M PN C050 device. Its specified power source is a replaceable 19,000 mAh ER34615 Li-SOCl₂ battery. Confirm the supplied battery fitting, bracket and mounting accessories in the commercial packing list. TwoElectrons provides a one-year seller warranty subject to its terms.

Other Information

Applications

Non-contact level measurement in water tanks, liquid storage tanks, reservoirs and compatible municipal or remote water-management installations. C050 is suitable where 0.25–5 m measuring distance and the specified beam pattern are appropriate.

Measurement Range & C050 Beam

Only C050 measurement figures apply: 0.25–5 m, accuracy ±(1 + 0.3% × S) cm (S = distance), and 1 mm resolution. A C050-specific ultrasonic beam diagram from page 3 of the OEM datasheet is included in the product media. The OEM's formula is reproduced without inferring alternative units or replacing it with ±1% FS.

Site Installation & Sensor Placement

Mount the sensor vertically with an unobstructed ultrasonic path and a target at least 0.25 m away. Pole, wall or DIN-rail mounting is supported. Choose a representative sensor location that minimizes vessel-wall and inlet echoes and follow the OEM installation guidance.

C050 Environmental Limits

C050 black-grey ABS + PC housing has an IP67 rating and a −15°C to +60°C operating range, with relative humidity 0–80% non-condensing. Overall device dimensions 156.1 × 71 × 69.5 mm; manufacturer weight 362.7 g including battery and bracket.

Remote Configuration and Network Integration

LoRaWAN OTAA/ABP Class A, NFC mobile app, USB Type-C console and remote downlink configuration are supported. Milesight D2D and compatible LoRaWAN gateway/network-server reporting permit integration with Milesight Cloud or Development Platform.

India Radio Band Verification

EM500-UDL includes IN865 within its OEM family frequency options. The listed hardware is marked 915M; do not assume the particular delivered 915M hardware supports IN865 without manufacturer or supplier confirmation.

Historical Data & Power

Up to 1,000 locally stored readings, data retrieval and retransmission, threshold alarms and change alarms. Battery: replaceable ER34615 Li-SOCl₂ 19,000 mAh. Manufacturer reference of 10 years assumes 10-minute intervals and 25°C laboratory conditions; field life depends on usage.

Package Includes

1 × Milesight EM500-UDL-915M PN C050 unit; battery and mounting hardware are subject to packing confirmation. The supplied datasheet gives the battery specification but does not itemize the full commercial contents.

Warranty Information

One-year TwoElectrons seller warranty against manufacturing defects subject to the prevailing warranty coverage and exclusions.

Shipping & Returns Policy

Dispatch, delivery, returns and replacements are governed by TwoElectrons' published shipping/returns policies and any accepted quotation or order terms.

OEM Product Link

https://www.milesight.com/iot/product/lorawan-sensor/em500-udl

Source Datasheet

The EM500-UDL OEM datasheet provided by the customer: C050 measurement and physical specifications on page 2; regulations and C050 beam pattern on page 3; dimensions diagram on page 5.
