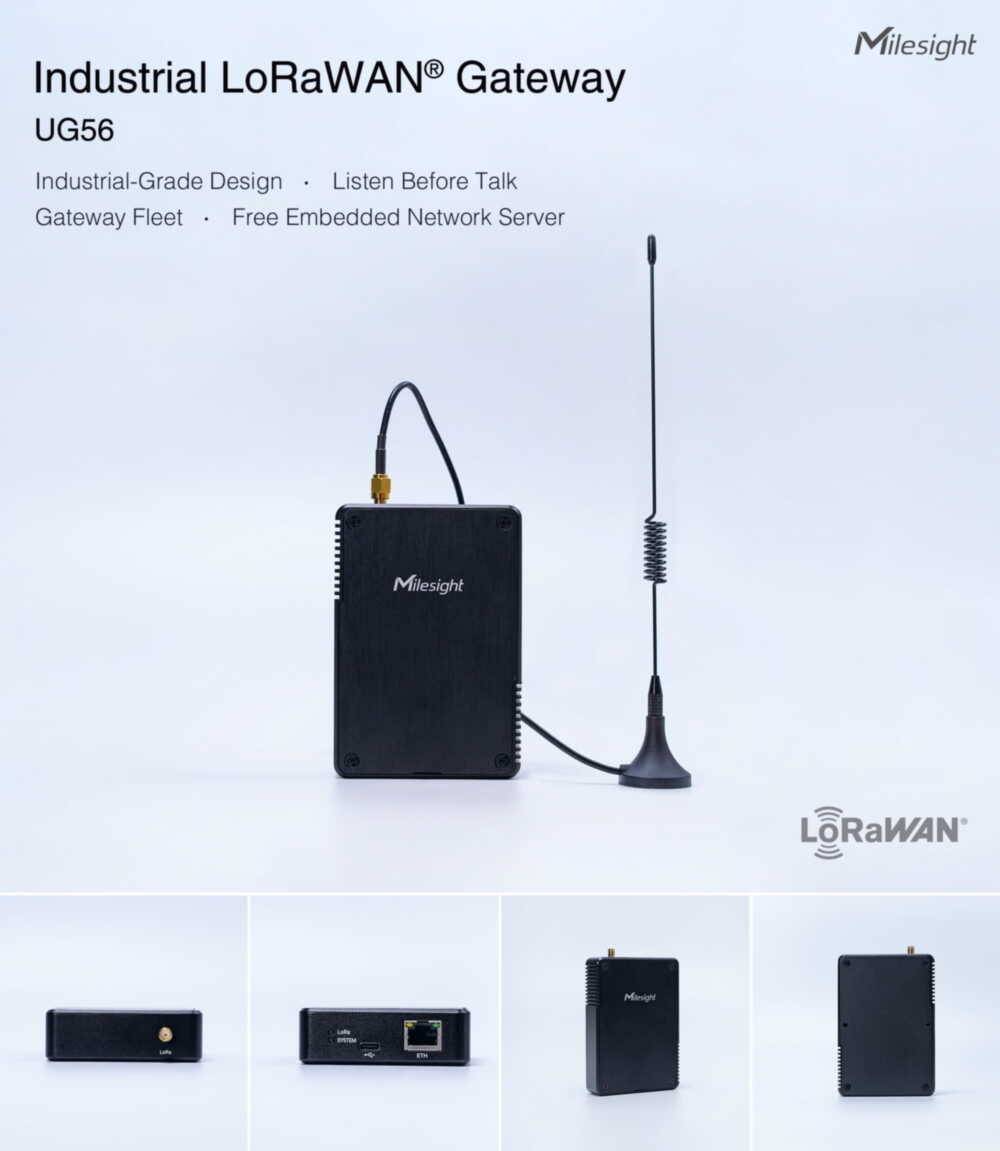

Milesight UG56 Industrial LoRaWAN® Gateway – Bridging the Gap for Reliable IoT Connectivity
Milesight UG56 Industrial LoRaWAN® Gateway – Bridging the Gap for Reliable IoT Connectivity
Low Stock, 1 left
Product Description
The Milesight UG56 Industrial LoRaWAN® Gateway is a compact, high-performance 8-channel (half-duplex) industrial IoT gateway designed to connect LoRaWAN® sensors and devices across factories, smart buildings, campuses, smart metering installations and other indoor networks. Built on the Semtech SX1302 concentrator and a quad-core 1.3 GHz, 64-bit Arm Cortex-A35 processor, it supports around 2,000 LoRaWAN® end devices with a 10-minute uplink interval under the manufacturer's stated assumptions.
UG56 delivers long-range connectivity of up to 2 km in urban areas and up to 15 km in open/rural line-of-sight locations, depending on antenna, installation and RF conditions. It provides 10/100 Mbps Ethernet with IEEE 802.3af PoE and built-in 2.4 GHz Wi-Fi, while 4G LTE cellular backhaul is available on optional variants. The gateway includes an embedded network server and integrates with mainstream LoRaWAN® platforms including The Things Stack and ChirpStack.
Designed for easy deployment and remote management, the gateway supports Milesight DeviceHub and Milesight Development Platform, embedded Node-RED, a Python SDK, packet filtering, noise analysis, network-failover features, VPN options and MQTT/HTTP/HTTPS integration. BACnet/IP and Modbus bridging help connect LoRaWAN® device data to industrial controllers and building management systems.
A rugged IP30 black metal enclosure, 110 × 75 × 24 mm dimensions and industrial operating range of −20°C to +60°C make it suitable for indoor industrial deployments, cabinets and technical rooms. Power is supplied via 802.3af PoE or a 5V/2A USB-C input.
Ordering information: LoRaWAN® frequency variants include IN865 for India, EU868, US915, AU915, AS923 and others. Select the correct regional frequency and confirm whether LTE backhaul is required before purchase. Price and precise frequency variant are pending confirmation. Optional LTE, DIN-rail hardware and external accessories depend on the configuration ordered.
Product Specifications
| Brand / OEM | Milesight |
|---|---|
| Model | UG56 Industrial LoRaWAN® Gateway |
| Product Category | Industrial Indoor LoRaWAN Gateway |
| LoRa Chipset | Semtech SX1302 |
| LoRaWAN Channels | 8 half-duplex channels |
| CPU | Quad-core 1.3GHz, 64-bit ARM Cortex-A35 |
| RAM | 512MB DDR3 |
| Storage | 8GB eMMC flash; internal microSD expansion slot |
| Supported End Devices | Approximately 2,000 Class A/B/C devices at 10-minute uplink interval |
| LoRaWAN Frequency Bands | CN470, IN865, EU868, RU864, US915, AU915, KR920, AS923-1/2/3/4 (regional hardware/version required) |
| LoRaWAN Protocol | LoRaWAN® V1.0 and V1.0.2, Class A/B/C |
| LoRa Sensitivity | Up to −140dBm at 292bps |
| LoRa TX Power | 27dBm maximum |
| LBT | Supported where permitted; not supported for AU915 or US915 |
| LoRa Antenna Port | 1 × 50Ω SMA female |
| Coverage (Indicative) | Up to 2km urban / 15km rural line of sight, site dependent |
| Ethernet | 1 × RJ45 10/100Base-T, 802.3af PoE PD, 1.5kV isolation |
| Wi-Fi | 2.4GHz IEEE 802.11b/g/n, internal antenna, AP/Client modes |
| Optional Cellular Interface | 4G LTE; 1 × mini-SIM (2FF) slot and SMA antenna connector on cellular variants |
| Power Input | 802.3af PoE or USB-C 5V/2A |
| Power Consumption | Typical 1.8W, maximum 6.9W |
| USB | 1 × USB-C for power supply and console |
| LEDs | System and LoRa status LEDs |
| Case / Material | Black metal enclosure |
| Ingress Protection | IP30 |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −40°C to +85°C |
| Relative Humidity | 0–95% RH, non-condensing (at 25°C) |
| Dimensions | 110 × 75 × 24mm |
| Weight | 186g |
| Mounting | Desktop; wall mount; DIN rail on newer hardware with optional kit |
| Protocols / Integrations | MQTT(s), HTTP(s), BACnet/IP, BACnet/SC, Modbus TCP, Modbus RTU over TCP |
| Network Management | Milesight DeviceHub, Milesight Development Platform, web UI, SSH/CLI, SNMP, HTTP API, MQTT API |
| Network Server | Embedded LoRaWAN NS; compatible with supported third-party LoRaWAN network servers |
| Supported Development | Node-RED and Python SDK |
Product Features
- Reliable 8-channel SX1302 concentrator with −140dBm sensitivity at 292bps and up to 27dBm transmit power
- Supports Class A/B/C devices, regional frequency plans including IN865, and Listen Before Talk where permitted
- Built-in LoRaWAN® network server, with compatibility for The Things Stack, ChirpStack and other common network platforms
- Gateway Fleet, gateway noise analyzer, packet filtering, retransmission and supported end-device FUOTA
- 10/100 Ethernet port with IEEE 802.3af PoE power and 2.4GHz Wi-Fi 802.11b/g/n
- Optional 4G LTE modem/mini-SIM connectivity for resilient backhaul and WAN failover
- MQTT/HTTP/HTTPS APIs, BACnet/IP and Modbus TCP integration into dashboards, BMS or PLC environments
- Remote configuration and firmware management using Milesight Development Platform, DeviceHub, web interface and APIs
- Python SDK, Node-RED, VPN protection and built-in network diagnostic tools
- Desktop, wall and supported newer-hardware DIN rail mounting choices
Package Includes
- 1 × Milesight UG56 Industrial LoRaWAN® Gateway

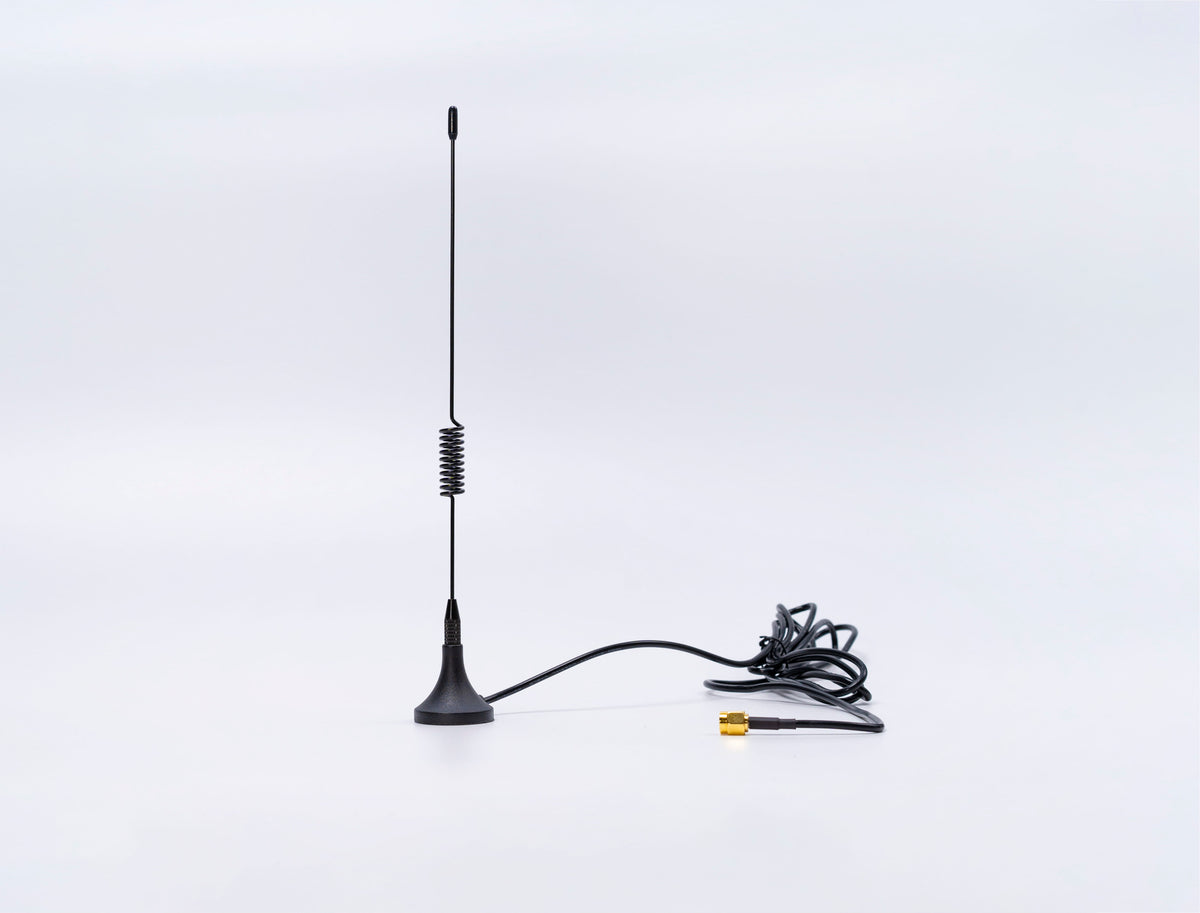

- 1 × LoRaWAN® Magnetic Antenna
- 1 × Wall Mounting Bracket
- 2 × M3 Bracket Screws
- 4 × Wall Mount Kits
- 1 × Quick Guide Card
- 1 × Warranty Card
- 1 × Cellular Magnetic Antenna (cellular version only)
- Optional, not included by default: Type-C Cable & Adapter, DIN Rail Clip Kit
Other Information
Warranty Information
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8-channel half-duplex industrial LoRaWAN® gateway with Semtech SX1302
- Quad-core 1.3GHz 64-bit ARM Cortex-A35 CPU; 512MB DDR3; 8GB eMMC
- Supports approximately 2,000 LoRaWAN® nodes at a 10-minute uplink interval
- Long-range connectivity up to 2km urban / 15km rural line-of-sight (environment dependent)
- Ethernet/PoE and Wi-Fi backhaul; optional 4G LTE configuration
- Free embedded network server, Node-RED, BACnet/Modbus integration and remote management
- IP30 industrial metal enclosure; −20°C to +60°C operating temperature
SKU: 2EMK2268
₹ 73,832.00
For bulk orders, volume pricing & B2B enquiries, contact our team →
Lead time
| QUANTITY | DISPATCH |
|---|---|
| 1-10 units |
Order from India: 7-10 working days Order outside India: Up to 20 working days |
| 10+ units | To be negotiated |
