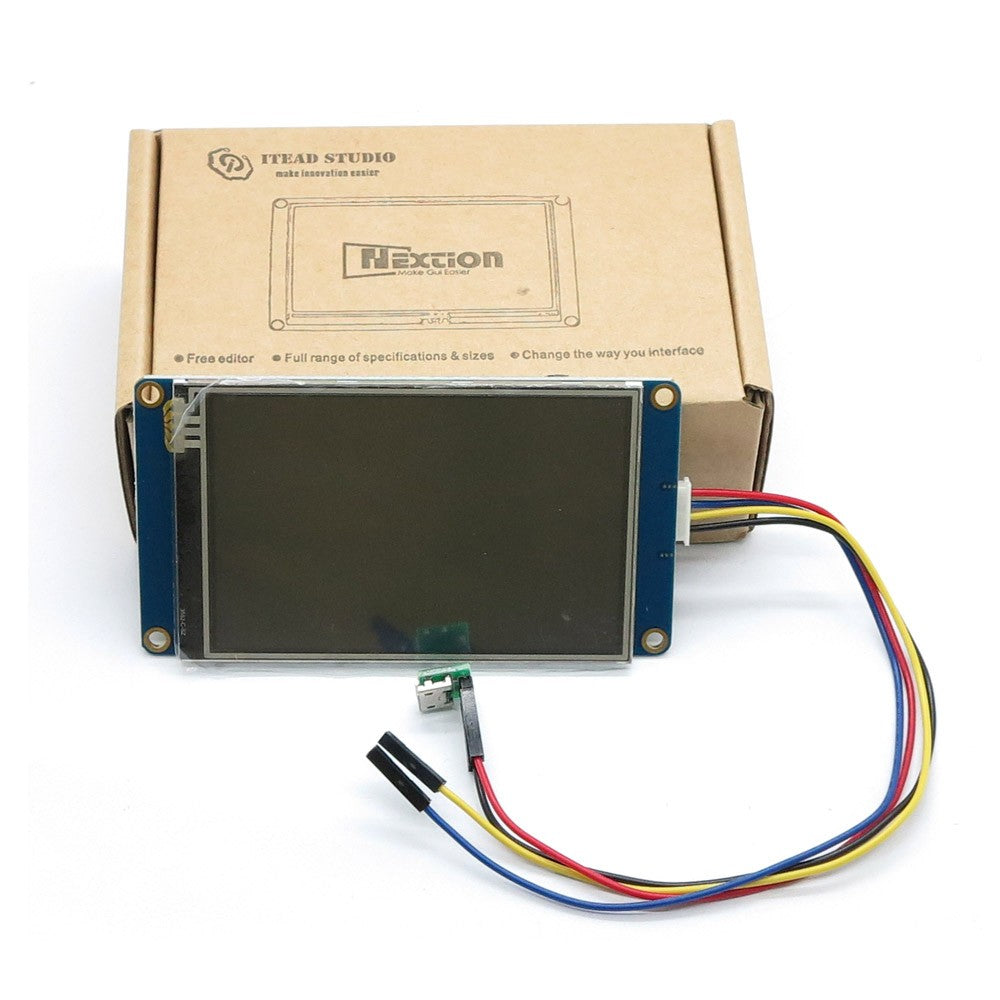

Nextion BASIC NX4832T035 3.5 Inch HMI TFT LCD Touch Display Module
Nextion BASIC NX4832T035 3.5 Inch HMI TFT LCD Touch Display Module
Low Stock, 5 left
Product Description
Nextion BASIC NX4832T035 is a compact 3.5 Inch HMI TFT LCD touch display for embedded control, IoT and microcontroller projects.
Key highlights: 3.5-inch TFT LCD, 480 × 320 resolution, resistive touch, 65K colours, TTL serial communication and 4.75–7 V DC operation.
Applications
Product Specifications
| Model | NX4832T035 |
|---|---|
| Series | Nextion BASIC |
| Display Size | 3.5 inch |
| Resolution | 480 × 320 |
| Touch | Resistive |
| Colours | 65K |
| Communication | TTL Serial / UART |
| Operating Supply | 4.75V to 7V DC |
Product Features
- Designed as a graphical HMI for embedded and microcontroller projects.
- Serial HMI architecture reduces host-controller GUI workload.
- Resistive touch enables direct operator interaction.
- Suitable for control panels, instrumentation, IoT dashboards and robotics interfaces.
Package Includes
- 1 × Nextion BASIC NX4832T035 3.5 Inch HMI Display
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 3.5-inch Nextion BASIC HMI TFT LCD
- 480 × 320 pixel resolution
- Resistive touch input
- 65K colour display
- TTL serial communication
- 4.75V to 7V DC operating supply
SKU: 2EMK2155
₹ 5,238.00
