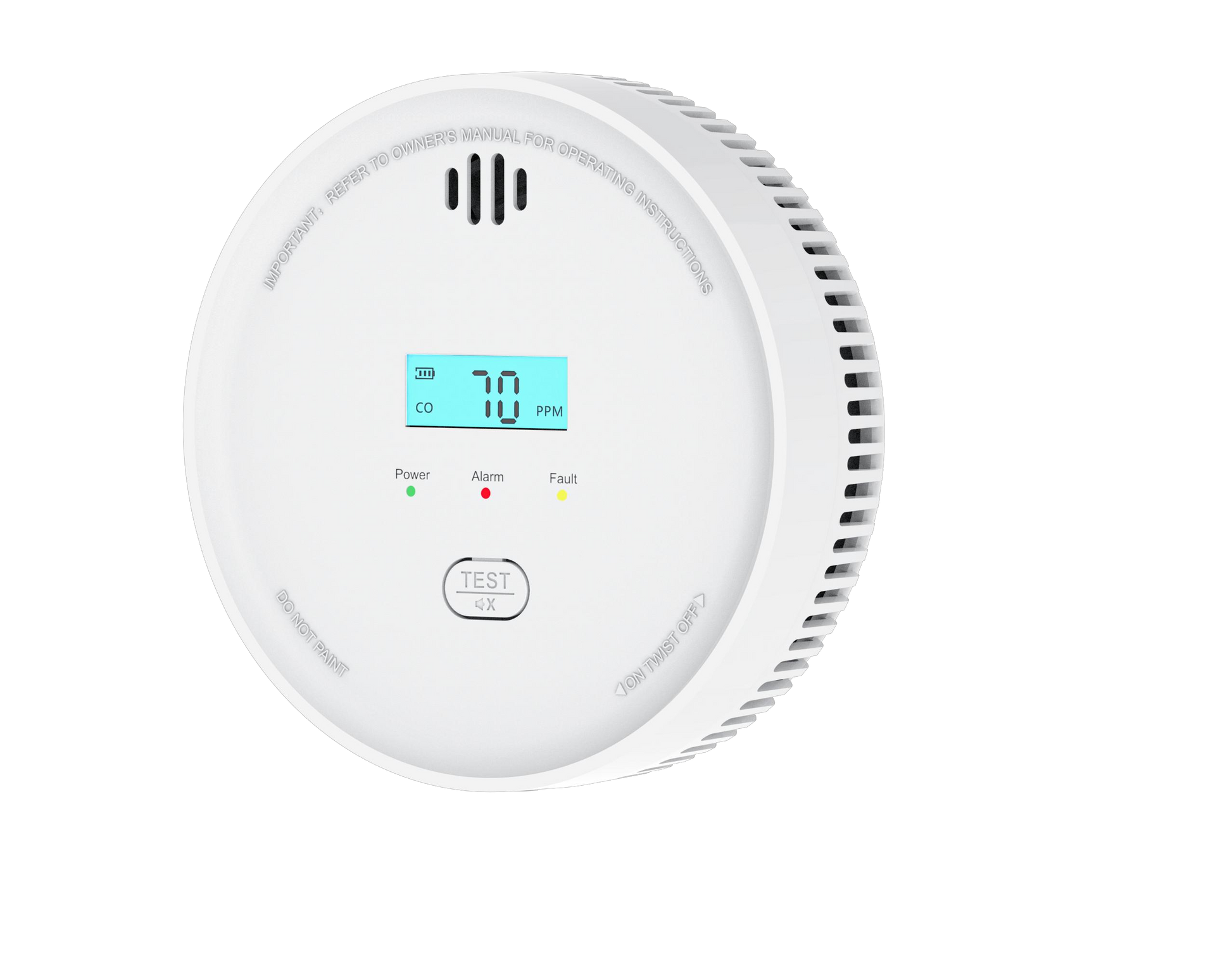

PG-N01 LoRaWAN Smoke & Carbon Monoxide Detector
In Stock
Product Description
The Winext PG-N01 is a LoRaWAN smart smoke and carbon monoxide detector designed for residential, commercial and industrial safety monitoring. It combines high-precision photoelectric smoke detection with an electrochemical carbon monoxide sensor and transmits alerts through long-range, low-power LoRaWAN connectivity.
Product Specifications
| Brand | Winext |
| Model | PG-N01 |
| Detection | Smoke and carbon monoxide |
| CO Range / Accuracy | 0-1000 ppm / ±10 ppm |
| Smoke Range / Accuracy | 0.08-4 dB/m / ±15% |
| Protocol | LoRaWAN |
| Frequency Bands | CN470 / EU868 / US915 / AS923 / AU915 MHz |
| Max Tx Power | 19 dBm |
| Rx Sensitivity | -125 dBm (SF7), -133 dBm (SF10), -141 dBm (SF12) |
| Transmission Rate | 292 bps-5.4 Kbps |
| Safety Standards | EN 14604:2005; EN 50291-1:2018 |
| Power Supply | DC 3V, replaceable CR123A lithium battery |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0-95% RH |
| Protection Area | 20-40 m² |
| Dimensions | Ø120 × 40 mm |
Product Features
- Combines smoke and carbon monoxide sensing in one detector.
- Photoelectric smoke sensing and electrochemical CO measurement provide dual protection.
- LoRaWAN enables long-range remote alarm reporting with low power consumption.
- The LCD displays CO concentration and local indicators show power, alarm and fault states.
- A built-in omnidirectional antenna supports flexible installation.
- The replaceable CR123A battery simplifies maintenance.
Package Includes
- 1 × Winext PG-N01 LoRaWAN Smoke & Carbon Monoxide Detector
- 1 × Replaceable CR123A lithium battery
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Combined photoelectric smoke and electrochemical CO detection
- CO range 0-1000 ppm with ±10 ppm accuracy
- Smoke range 0.08-4 dB/m with ±15% accuracy
- Long-range low-power LoRaWAN connectivity
- Five regional LoRaWAN frequency bands
- EN 14604:2005 and EN 50291-1:2018 standards
- Replaceable CR123A lithium battery
- 20-40 m² protection area
