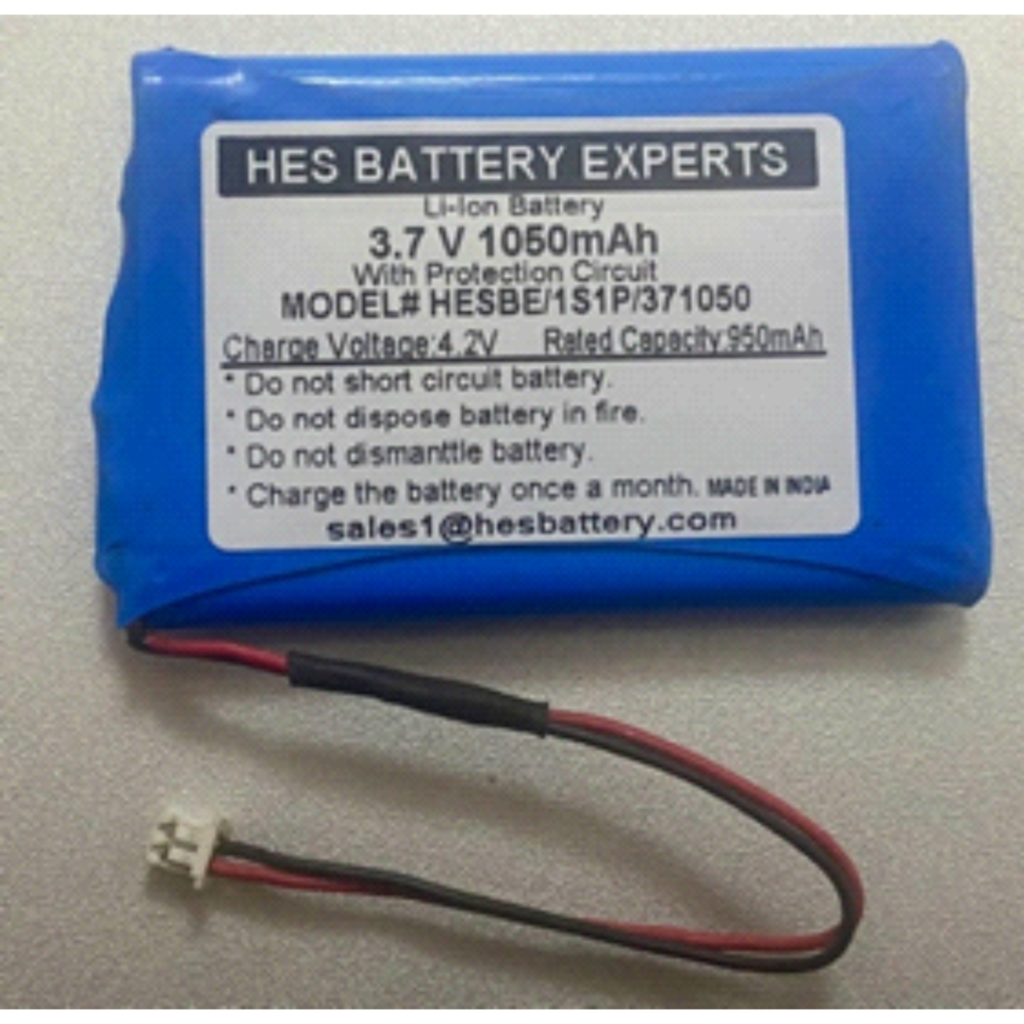

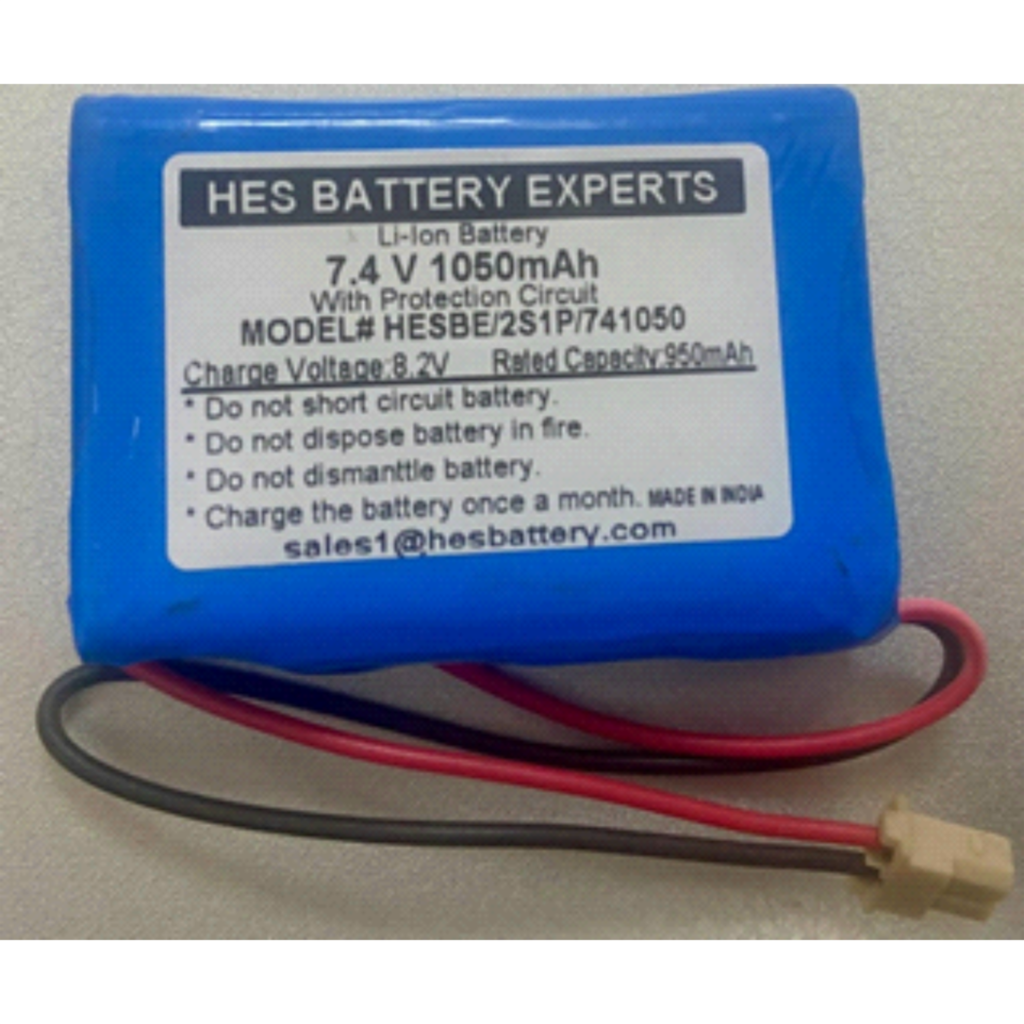

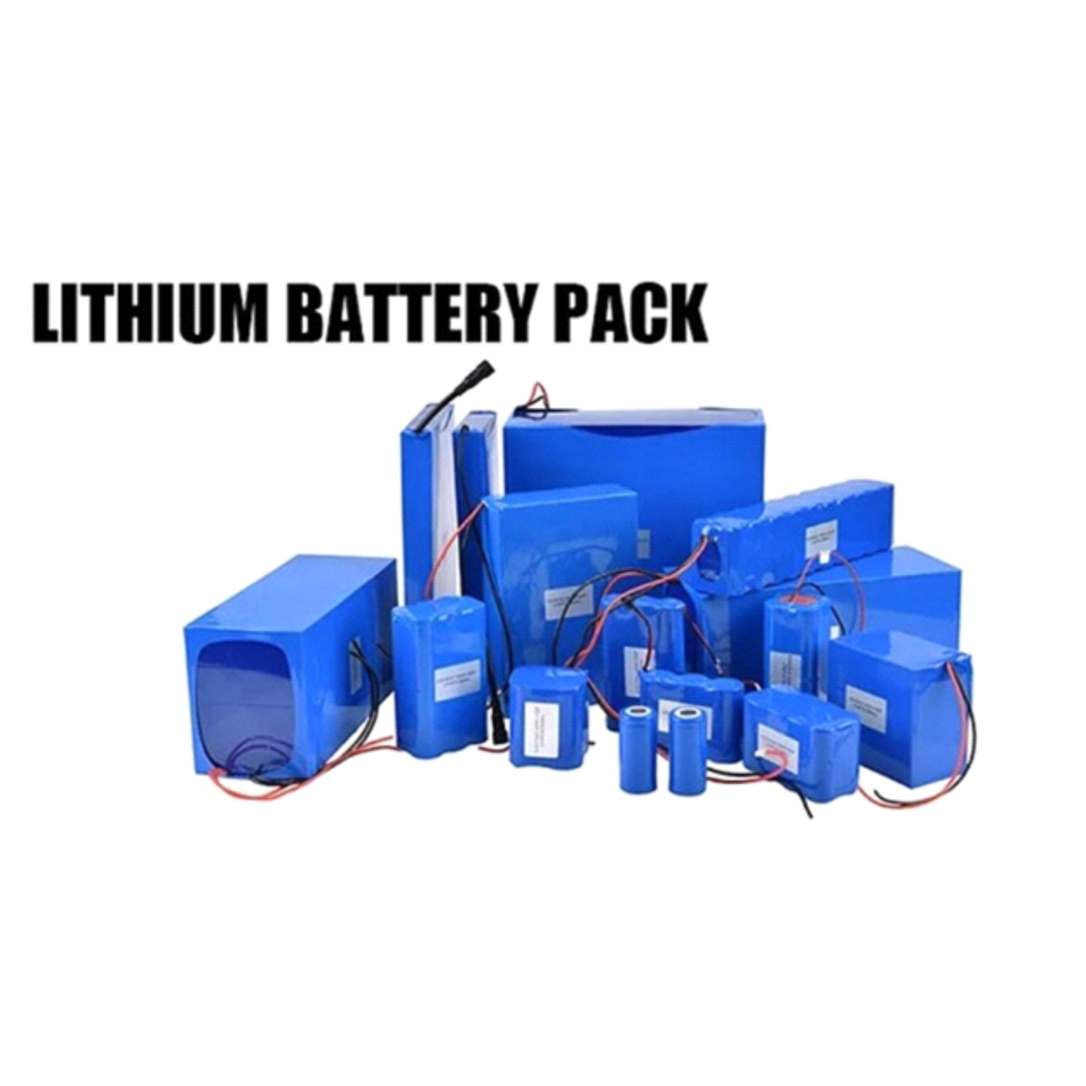

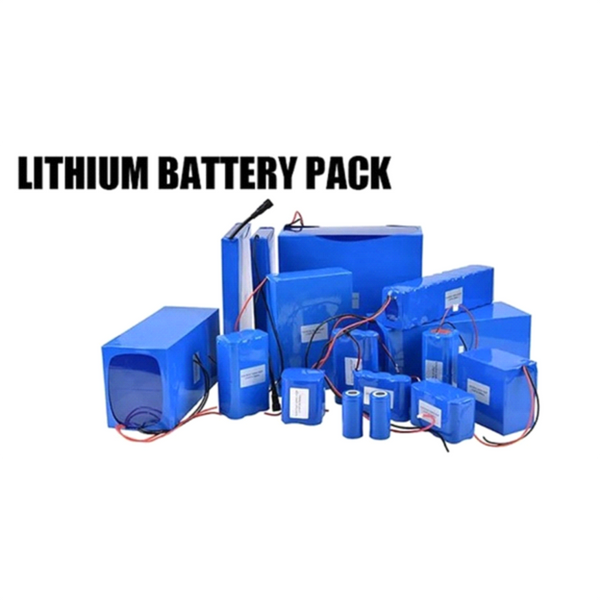

Prismatic Lithium-Ion Battery Packs
Out of stock
Product Description
The HES Prismatic Lithium-Ion Battery Pack is a compact, customizable rechargeable power solution designed for applications that demand efficient use of space, dependable performance, and flexible voltage and capacity options. Its rectangular prismatic-cell construction supports efficient stacking and packaging, while the integrated battery protection board helps safeguard the pack during operation.
Top Features
- Custom voltage range from 3.7 V to 72 V
- Capacity options from 450 mAh to 200 Ah
- Low internal resistance and low self-discharge
- Compact, lightweight design with efficient heat relief
- Integrated battery protection board
Detailed Features

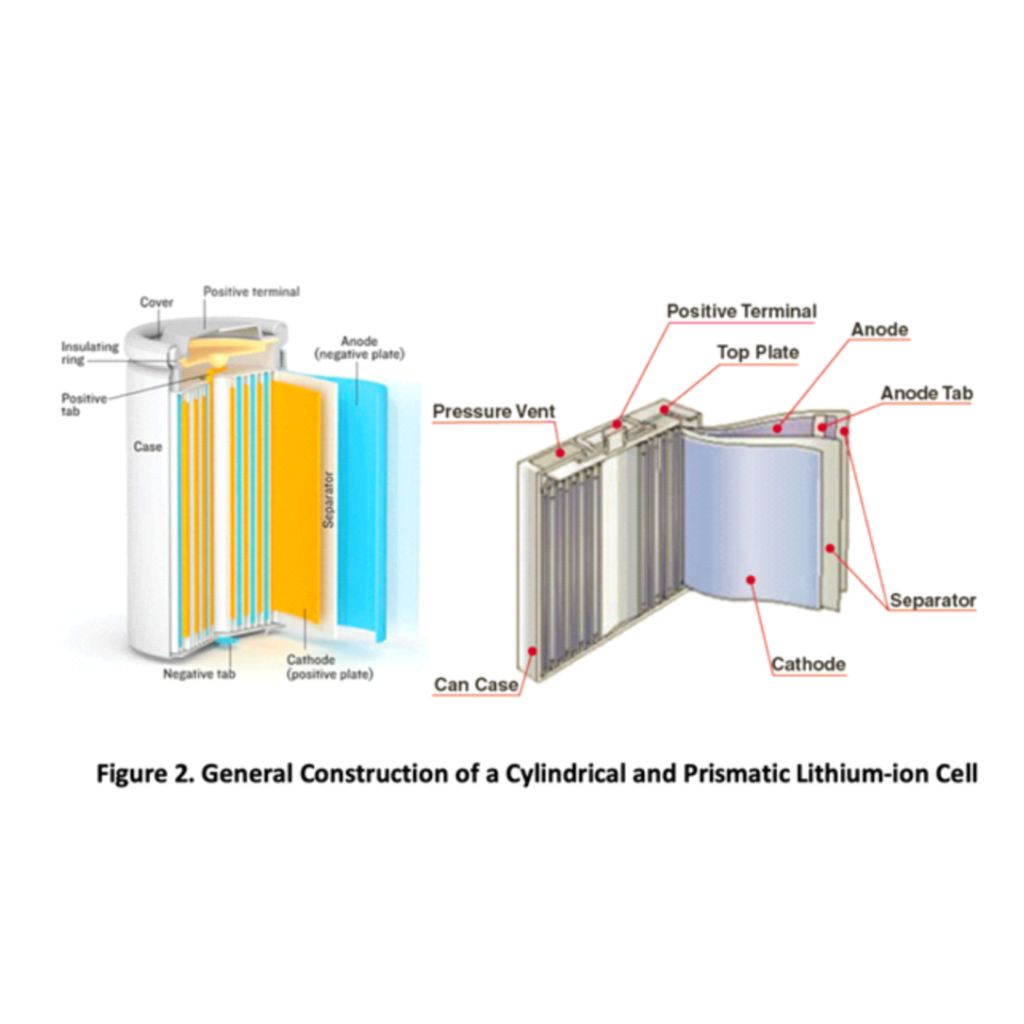

- Space-efficient prismatic construction: Rectangular cells support effective layering and efficient use of available enclosure space.
- Flexible pack configuration: Voltage and capacity can be tailored for a wide range of portable, industrial, mobility, and energy-storage applications.
- Long service life: Rechargeable lithium-ion chemistry is designed for dependable repeated use.
- Lightweight pack design: Plastic packing supports lower overall weight and effective heat dissipation.
- Protection support: The pack includes a battery protection board for safer system integration.
- Expandable capacity: Pack capacity can be scaled to meet application-specific runtime requirements.
Specifications
| Battery Type | Rechargeable prismatic lithium-ion battery pack |
|---|---|
| Nominal Voltage Range | 3.7 V to 72 V |
| Capacity Range | 450 mAh to 200 Ah |
| Cell Form Factor | Prismatic |
| Protection | Battery protection board included |
| Pack Construction | Lightweight plastic packing with heat-relief characteristics |
| Configuration | Customizable according to application requirements |
| Country of Origin | India |
Applications & Use Cases
- Handheld terminals and portable electronic devices
- Solar streetlights, solar lamps, and lighting systems
- GPS and vehicle tracking systems
- Security and surveillance equipment
- Medical equipment
- Defence equipment
- Bluetooth speakers
- Electric vehicles and mobility systems
- Robotics and automation systems
- Energy storage and other custom electronic devices
Advantages
- Efficient utilization of enclosure space
- High structural energy density
- Low internal resistance
- Low self-discharge
- Scalable voltage and capacity options
- Competitive pack cost
Note: Voltage, capacity, dimensions, connector, protection parameters, and enclosure can be configured according to the application. Please request a quotation with your required specification.
