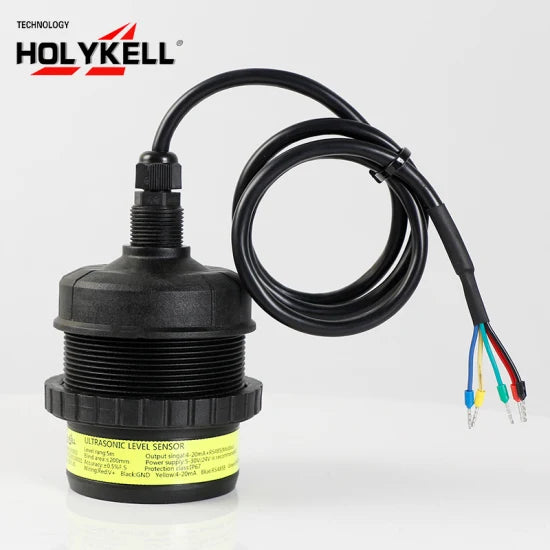

Pro-Range PR-UE3003 0-5m Ultrasonic Level Sensor RS485 + 4-20mA IP67
Pro-Range PR-UE3003 0-5m Ultrasonic Level Sensor RS485 + 4-20mA IP67
Lead Time
Product Description
The Pro-Range PR-UE3003Pro-Range PR-UE3003 0-5m Ultrasonic Level Sensor RS485 + 4-20mA IP67 is designed for the sensing and monitoring work identified in its specifications. It gives a compatible controller or monitoring system access to the quantities this model is designed to measure. Power is provided through the stated 7-30V DC arrangement.4-20mA analog output and RS485 Modbus RTU for integration with PLCs, RTUs, data loggers and industrial monitoring systems.
The Level Range specification is 0-5m. The Measurement Medium specification is Water. When choosing this sensor module, start with the documented configuration.0.5% FS accuracy, a 7-30V DC supply range, M68 x 2.0mm threaded mounting, IP67 protection and a 1m PVC cableThe measurement range and signal output should suit the job before you choose a sensor. Supply, mounting and environmental limits are separate checks; any stated calibration or handling requirements also remain relevant. The Measurement Principle specification is Non-contact ultrasonic. The Output specification is 4-20mA + RS485 Modbus RTU.
The Accuracy specification is 0.5% FS. The Working Temperature specification is -10°C to 50°C. The Thread specification is M68 x 2.0mm.
Applications
Product Specifications
| Model | PR-UE3003 / UE3003 |
| Measurement Medium | Water |
| Measurement Principle | Non-contact ultrasonic |
| Level Range | 0-5m |
| Output | 4-20mA + RS485 Modbus RTU |
| Accuracy | 0.5% FS |
| Power Supply | 7-30V DC |
| Working Temperature | -10°C to 50°C |
| Thread | M68 x 2.0mm |
| Protection | IP67 |
| Cable | 1m PVC |
| Typical Blind Area | <=200mm for manufacturer 5m configuration |
Product Features
- Non-Contact Measurement:Ultrasonic sensing measures the liquid surface without immersing the sensor.
- Industrial Connectivity:RS485 Modbus RTU and 4-20mA outputs support PLC, RTU, controller and data-logger integration.
- 5m Water-Level Range:Robu's listed variant is configured for 0-5m measurement with 0.5% FS accuracy.
- Temperature Compensation:Manufacturer documentation specifies automatic compensation to reduce temperature-related ultrasonic variation.
- Field Mounting:M68 x 2.0mm thread, IP67 housing and 1m PVC cable suit tank and outdoor monitoring installations.
- Protection Features:Manufacturer documentation lists reverse-polarity and surge/lightning protection for installation robustness.
Package Includes
- 1 x Pro-Range PR-UE3003 Ultrasonic Level Sensor
- 1 x Integrated 1m PVC cable
