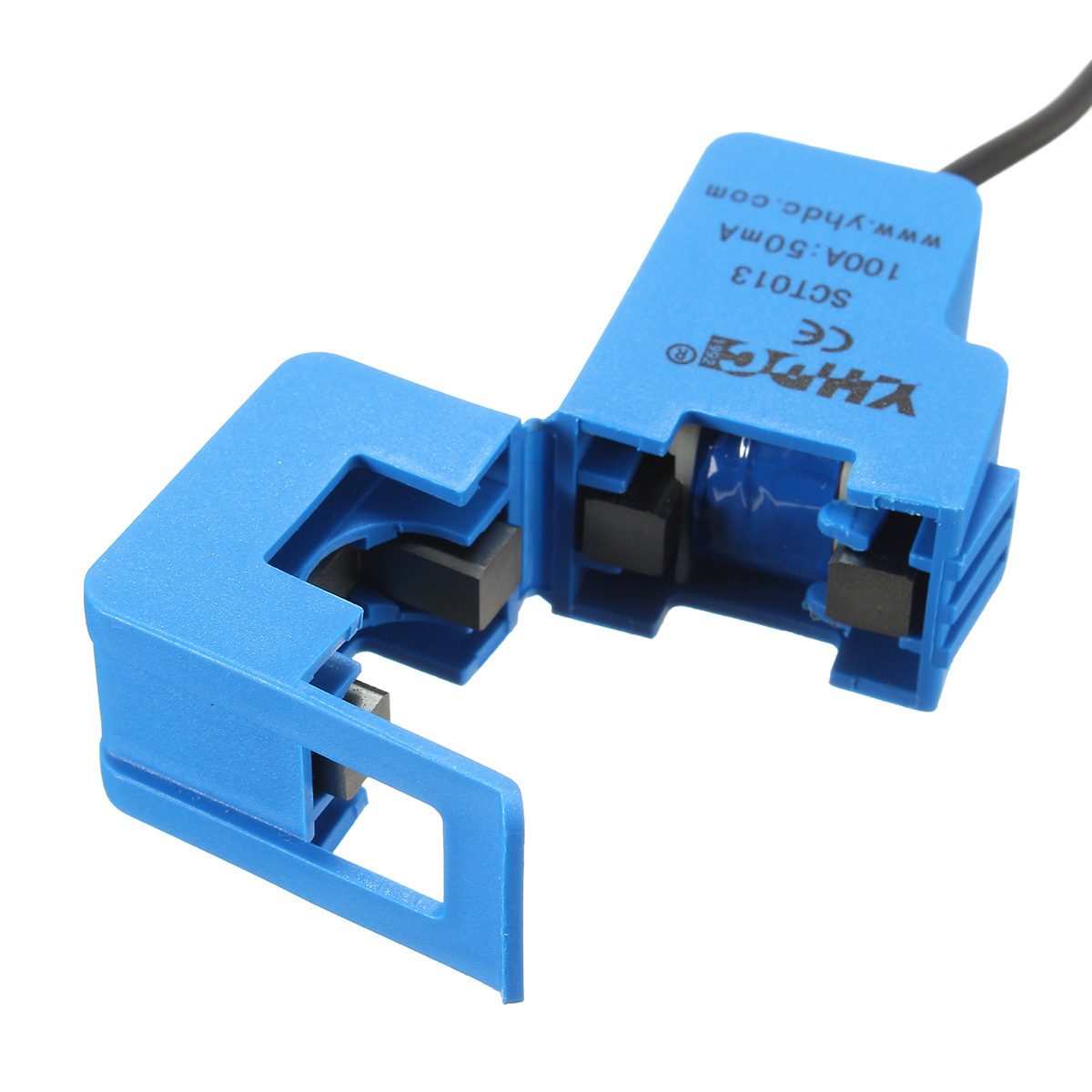

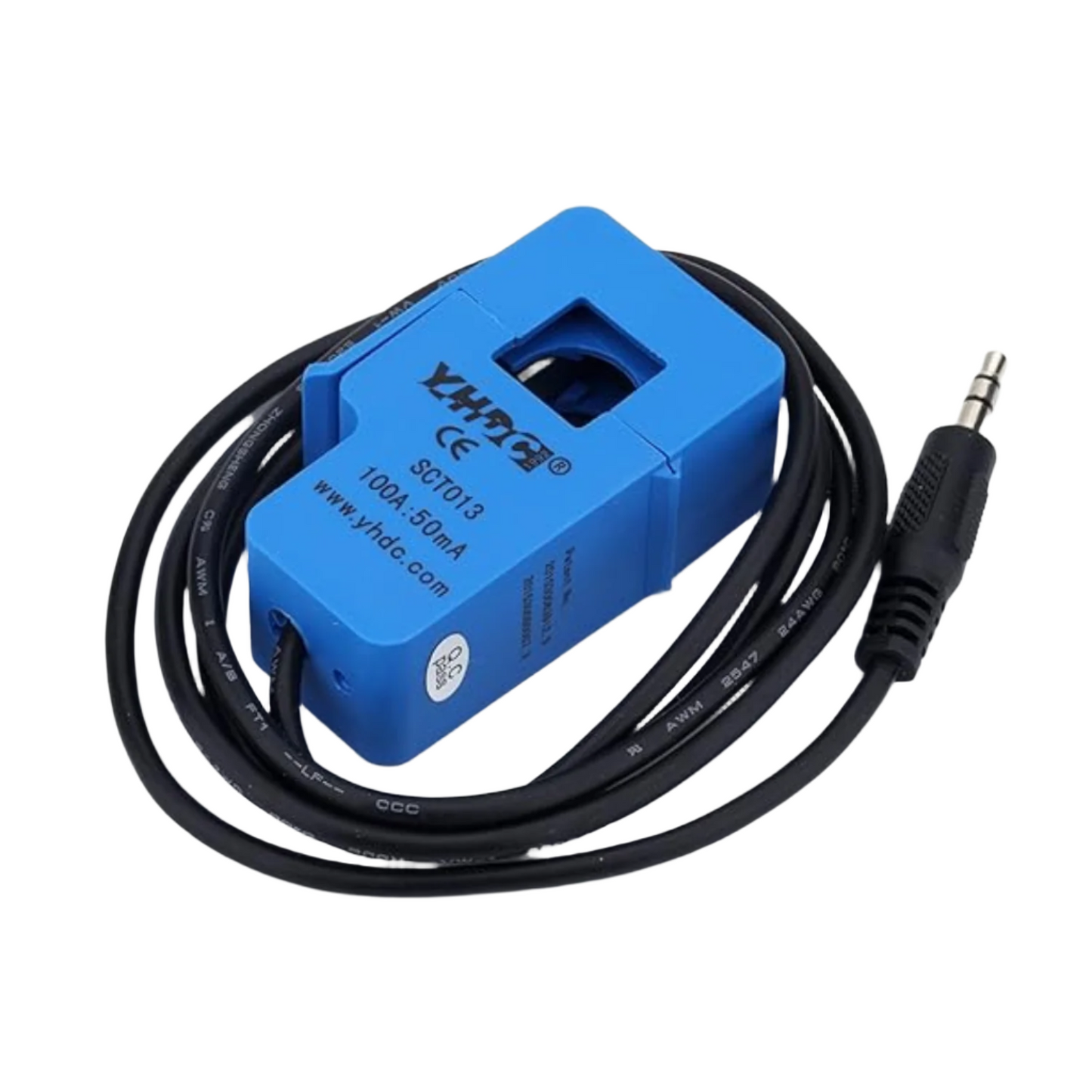

SCT-013-000 100A Non-Invasive AC Current Sensor Clamp
Low Stock, 1 left
Product Description
The SCT-013-000 is a split-core, non-invasive AC current sensor designed for safe current measurement without disconnecting the conductor. It is suitable for energy monitoring, electrical load measurement, AC motors, lighting equipment and protection systems.
Main Features
- Measures AC current up to 100A
- Split-core clamp design for non-invasive installation
- 50Hz–150kHz frequency range
- 13 × 13mm conductor opening
- 3.5mm output plug
- 6000V AC/1min dielectric strength
- UL94-V0 flame-retardant enclosure
Product Specifications
| Model | SCT-013-000 |
|---|---|
| Sensor Type | Split-core AC current transformer |
| Input Current | Up to 100A AC |
| Frequency | 50Hz–150kHz |
| Opening Size | 13 × 13mm |
| Output Connector | 3.5mm plug |
| Dielectric Strength | 6000V AC for 1 minute |
| Flame Rating | UL94-V0 |
Package Includes
1 × SCT-013-000 100A Non-Invasive AC Current Sensor Clamp
Product Specifications
| Model | SCT-013-000 |
|---|---|
| Sensor Type | Split-core AC current transformer |
| Input Current | Up to 100A AC |
| Frequency | 50Hz–150kHz |
| Opening Size | 13 × 13mm |
| Output Connector | 3.5mm plug |
| Dielectric Strength | 6000V AC for 1 minute |
| Flame Rating | UL94-V0 |
Product Features
- Designed for non-invasive AC current measurement and energy monitoring
- Split-core construction allows installation around an existing conductor without disconnecting it
- Suitable for AC motors, lighting equipment, electrical load monitoring and protection systems
- Flame-retardant UL94-V0 enclosure for improved installation safety
- 3.5mm output connector simplifies connection to compatible monitoring electronics
Package Includes
1 × SCT-013-000 100A Non-Invasive AC Current Sensor Clamp
