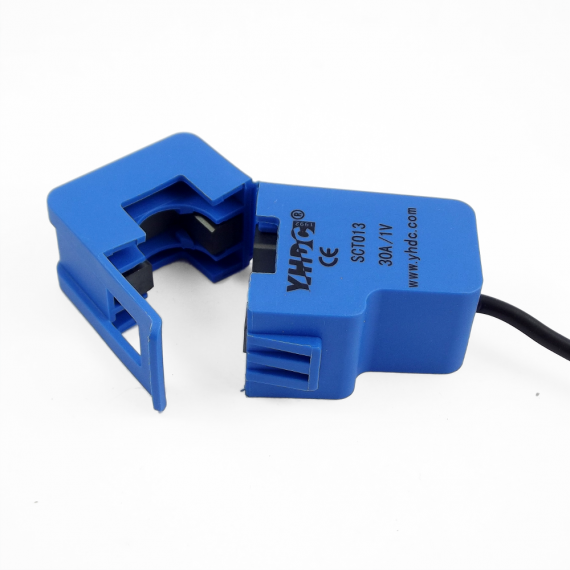

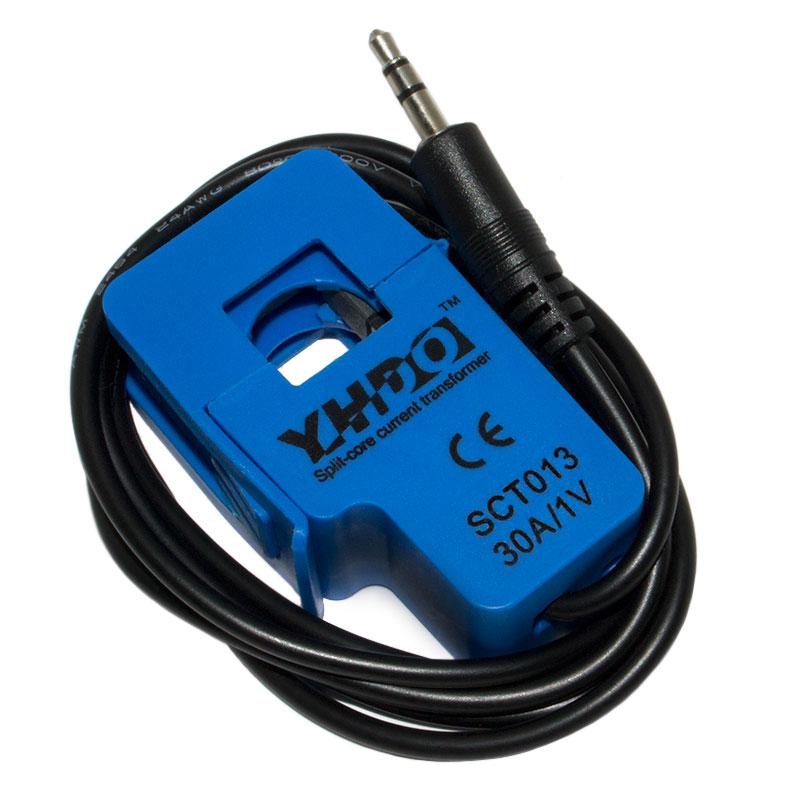

SCT-013-030 30A Non-Invasive AC Current Sensor Clamp
Low Stock, 1 left
Product Description
The SCT-013-030 is a split-core non-invasive AC current sensor for measuring currents up to 30A without interrupting the circuit. Its built-in voltage output makes it suitable for energy monitoring, automation, AC motor monitoring and electrical protection applications.
Main Features
- 0–30A AC current measurement
- 0–1V output at rated current
- Split-core clamp for non-invasive installation
- 50Hz–150kHz frequency range
- 13 × 13mm conductor opening
- 3.5mm output plug
- 6000V AC/1min dielectric strength
- UL94-V0 flame-retardant enclosure
Product Specifications
| Model | SCT-013-030 |
|---|---|
| Sensor Type | Split-core AC current transformer |
| Input Current | 0–30A AC |
| Output | 0–1V at rated current |
| Frequency | 50Hz–150kHz |
| Opening Size | 13 × 13mm |
| Output Connector | 3.5mm plug |
| Dielectric Strength | 6000V AC for 1 minute |
| Flame Rating | UL94-V0 |
Package Includes
1 × SCT-013-030 30A Non-Invasive AC Current Sensor Clamp
Product Specifications
| Model | SCT-013-030 |
|---|---|
| Sensor Type | Split-core AC current transformer |
| Input Current | 0–30A AC |
| Output | 0–1V at rated current |
| Frequency | 50Hz–150kHz |
| Opening Size | 13 × 13mm |
| Output Connector | 3.5mm plug |
| Dielectric Strength | 6000V AC for 1 minute |
| Flame Rating | UL94-V0 |
Product Features
- Built-in voltage output simplifies interfacing with compatible monitoring electronics
- Non-invasive split-core design fits around an existing conductor without circuit interruption
- Suitable for energy monitoring, electrical automation, AC motor monitoring and protection applications
- Compact clamp format with 13 × 13mm opening
- Flame-retardant UL94-V0 enclosure and high dielectric strength
Package Includes
1 × SCT-013-030 30A Non-Invasive AC Current Sensor Clamp
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 0–30A AC current sensing with built-in 0–1V output
- Split-core non-invasive clamp installation
- 50Hz–150kHz frequency response
- 13 × 13mm conductor opening with 3.5mm output plug
- 6000V AC dielectric strength and UL94-V0 enclosure
