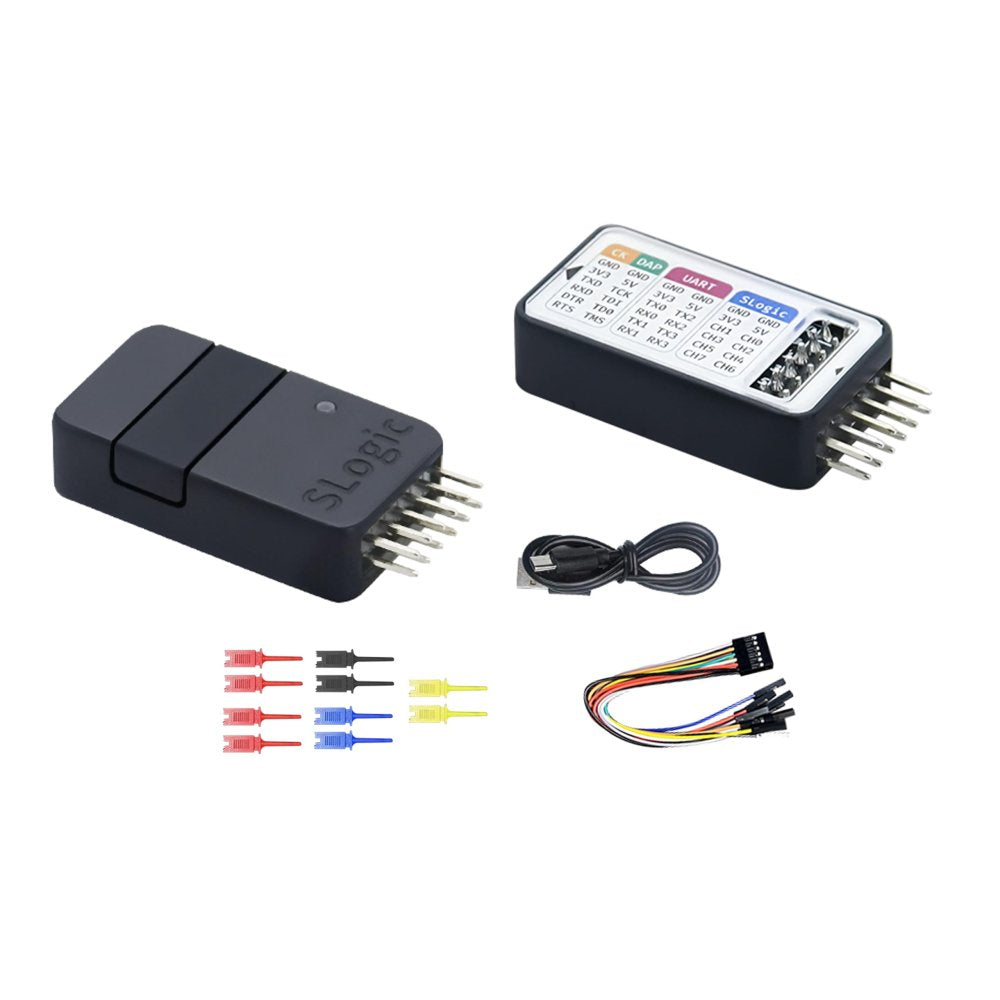

Sipeed SLogic Combo 8 Lite Kit logic analyzer and debugging tool
  • Sipeed SLogic Combo 8 Lite Kit logic analyzer and debugging tool

Product Description

Multi-function Sipeed development and debugging tool combining an 8-channel logic analyzer, CKLink debugger, DAPLink debugger and high-speed USB-to-UART functions in one compact device.

Key highlights: up to 8 logic-analyzer channels, 80 MS/s maximum sampling, up to 320 Mb/s transmission bandwidth, CKLink JTAG debugging, DAPLink programming/debugging and four USB-to-UART channels.

Applications

Manufacturing & Industrial

Product Specifications

Product TypeLogic Analyzer / Debugger / USB-to-UART Tool
Logic Analyzer ChannelsUp to 8
Maximum Sampling Rate80MS/s
Typical Sampling80M@4CH; 40M@8CH
Input Signal Range0 to 3.6V
Logic ThresholdsVIH > 2V; VIL < 0.8V
Transmission BandwidthUp to 320Mb/s source-listed
CKLink JTAG ClockUp to 16MHz
CKLink Typical Dump Speed1200KB/s
DAPLink Typical Burning Speed110KB/s
USB-to-UART4 channels; up to 2×20Mbps + 2×1Mbps

Product Features

  1. Logic Analysis
    Captures up to eight digital channels with an 80MS/s maximum source-listed sampling rate.
  2. CKLink Debugging
    Provides JTAG-based debugging with up to 16MHz JTAG clock and high-speed serial monitoring.
  3. DAPLink Debugging
    Supports embedded programming/debugging workflows with a source-listed typical burning speed of 110KB/s.
  4. USB-to-UART
    Offers four serial ports for simultaneous communication and diagnostic logging.

Package Includes

  • 1 × Sipeed SLogic Combo 8 Lite Kit

Other Information

Applications & Use Cases
  • Digital protocol capture and signal analysis
  • ARM and RISC-V firmware debugging
  • Multi-channel UART logging and diagnostics
Shipping & Returns

Shipping and returns are handled according to the current TwoElectrons Shipping & Returns Policy displayed on the website.

Warranty Information

15 Days Seller Warranty:

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.

What Voids Warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

Shipping & Returns Policy

Shipping Policy:
  • Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
  • If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
  • Return window: 7 days from receipt unless stated otherwise.
  • No refunds or replacements after the return window.
  • Returns are accepted only for non-working or damaged products.
  • Initiate return requests from here: Return Request or contact us at 09831070550.
  • Refunds are processed within 3-4 working days after inspection and approval.
Sipeed SLogic Combo 8 Lite Kit Logic Analyzer DAPLink CKLink Debugging Tool
Main Features
  • 4-in-1 embedded debugging and analysis tool
  • 8-channel logic analyzer with up to 80MS/s sampling
  • Stream sampling with 80M@4CH and 40M@8CH typical configurations
  • CKLink JTAG debugger with up to 16MHz JTAG clock
  • DAPLink debugger with high-speed debug serial port
  • Four USB-to-UART serial channels
  • Compact tool for ARM and RISC-V development workflows
