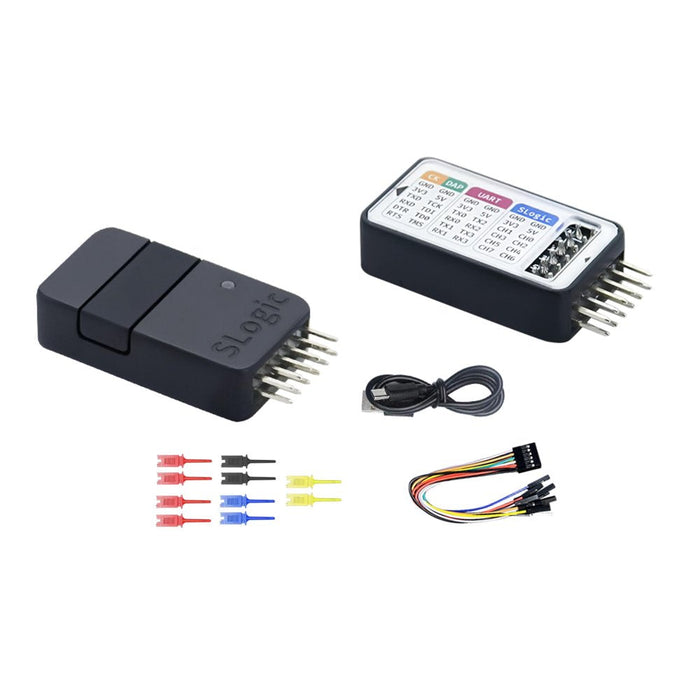

Sipeed SLogic Combo 8 Lite Kit Logic Analyzer DAPLink CKLink Debugging Tool
Sipeed SLogic Combo 8 Lite Kit Logic Analyzer DAPLink CKLink Debugging Tool
Lead Time
Product Description
Sipeed SLogic Combo 8 Lite Kit Logic Analyzer DAPLink CKLink Debugging Tool is designed for the programming, debugging or serial-development functions stated below. It suits developers working with the target platforms and interfaces identified for this particular tool. The Logic Analyzer Channels specification is Up to 8. The Input Signal Range specification is 0 to 3.6V. The Maximum Sampling Rate specification is 80MS/s. When choosing this logic analyzer / debugger / usb-to-uart tool, start with the documented configuration.
Key highlights:Check target support, the host software and the connection arrangement together. Programming and debugging are distinct functions, and any target-voltage or setup limits still apply when connecting the tool to a board. The Typical Sampling specification is 80M@4CH; 40M@8CH. The Logic Thresholds specification is VIH > 2V; VIL < 0.8V. The Transmission Bandwidth specification is Up to 320Mb/s source-listed. The CKLink JTAG Clock specification is Up to 16MHz. The CKLink Typical Dump Speed specification is 1200KB/s.
Product Specifications
| Product Type | Logic Analyzer / Debugger / USB-to-UART Tool |
|---|---|
| Logic Analyzer Channels | Up to 8 |
| Maximum Sampling Rate | 80MS/s |
| Typical Sampling | 80M@4CH; 40M@8CH |
| Input Signal Range | 0 to 3.6V |
| Logic Thresholds | VIH > 2V; VIL < 0.8V |
| Transmission Bandwidth | Up to 320Mb/s source-listed |
| CKLink JTAG Clock | Up to 16MHz |
| CKLink Typical Dump Speed | 1200KB/s |
| DAPLink Typical Burning Speed | 110KB/s |
| USB-to-UART | 4 channels; up to 2×20Mbps + 2×1Mbps |
Product Features
- Logic Analysis
Captures up to eight digital channels with an 80MS/s maximum source-listed sampling rate. - CKLink Debugging
JTAG-based debugging with up to 16MHz JTAG clock and high-speed serial monitoring is provided by the unit. - DAPLink Debugging
Available functions include embedded programming/debugging workflows with a source-listed typical burning speed of 110KB/s. - USB-to-UART
Offers four serial ports for simultaneous communication and diagnostic logging.
Package Includes
- 1 × Sipeed SLogic Combo 8 Lite Kit
