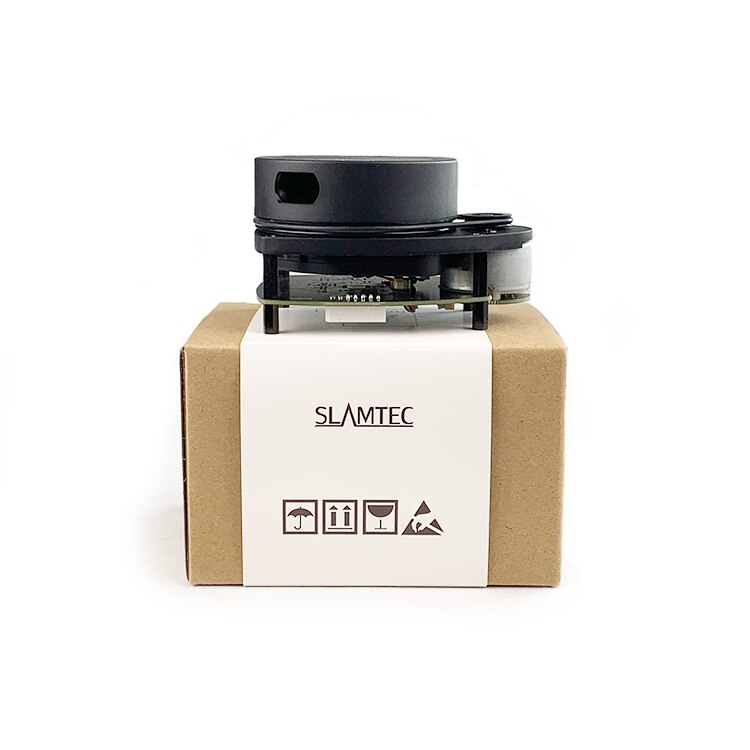

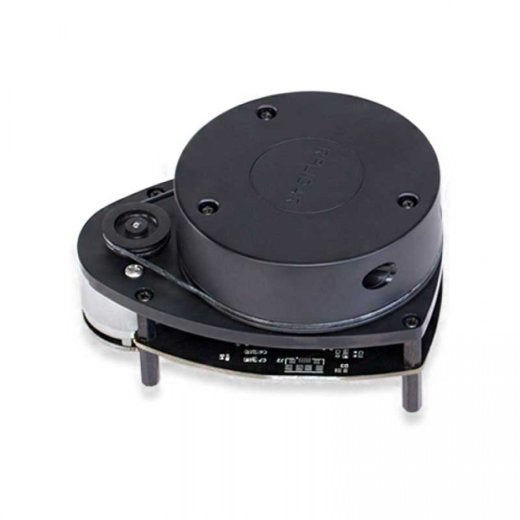

SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner 6m
Lead Time
Product Description
SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner 6m is designed for the applications supported by the specifications below. It suits users selecting this exact part by its documented function, connection and physical format. The System Voltage specification is 5 V. The Angular Range specification is 360°. The Distance Range specification is 0.15–6 m radius on white objects (Robu-listed version). When choosing this electronics component, start with the documented configuration. Match the part’s stated requirements to the equipment or assembly you already have. The package list establishes what is supplied, while compatibility and operating conditions should be checked separately when planning the complete installation. The Sample Frequency specification is ≥8000 Hz. The Angular Resolution specification is ≤1°. The Distance Resolution specification is <0.5 mm. The dimensions figure is 96.8 × 70.3 × 55 mm. The Scan Rate specification is 1–10 Hz; 5.5 Hz typical.
Product Specifications
| Brand | SLAMTEC |
|---|---|
| Model | RPLIDAR A1M8 |
| Angular Range | 360° |
| Distance Range | 0.15–6 m radius on white objects (Robu-listed version) |
| Sample Frequency | ≥8000 Hz |
| Scan Rate | 1–10 Hz; 5.5 Hz typical |
| Angular Resolution | ≤1° |
| Distance Resolution | <0.5 mm |
| System Voltage | 5 V |
| Output | UART Serial, 3.3 V level |
| Dimensions | 96.8 × 70.3 × 55 mm |
| Weight | 170 g |
Product Features
- Use this version for 360° environmental perception, robot navigation and SLAM mapping.
- Provided by High sampling frequency: dense ranging data for real-time map generation.
- Allowed by Configurable rotational speed: integration across different mobile-robot platforms.
- Supported by UART serial output: straightforward connection to embedded processors and host computers.
- Compact plug-and-play mechanical design is intended for home robots, service robots and development platforms.
Package Includes
- 1 × SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner Kit
Frequently Asked Questions
What is the SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner 6m used for?
What are its main features?
What specifications should I check before choosing this product?
What operating or installation limits should I consider?
What is included in the package?
