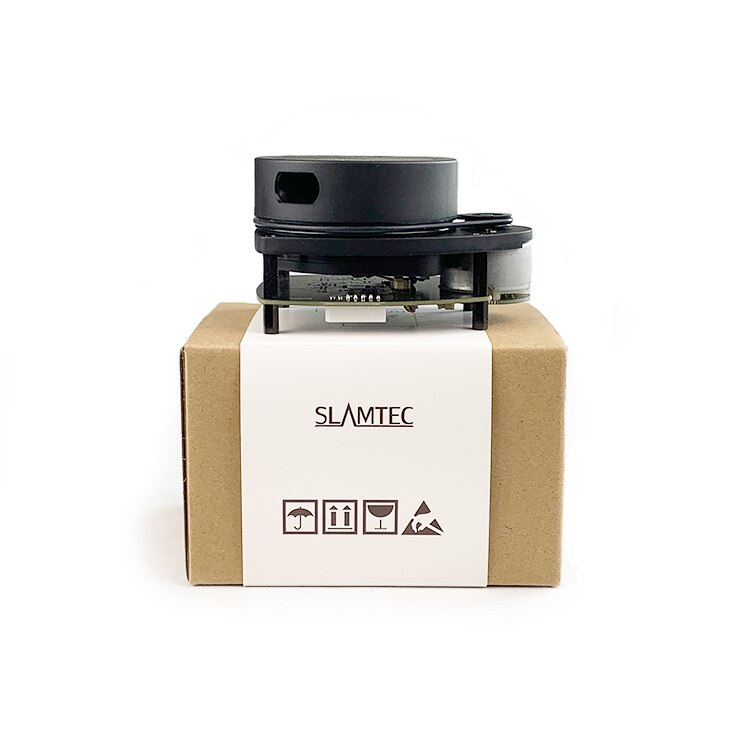

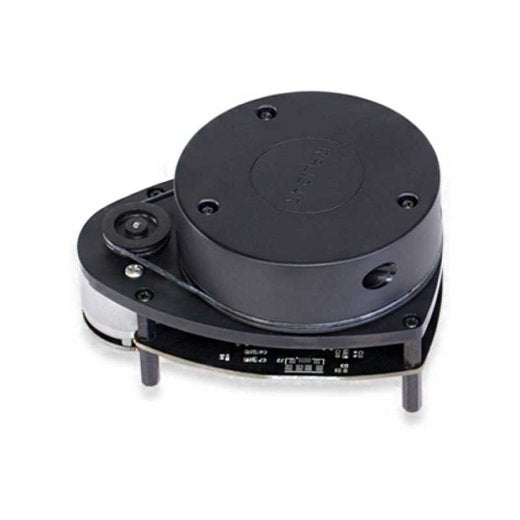

SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner 6m
Low Stock, 1 left
Product Description
SLAMTEC RPLIDAR A1M8 is a 360° 2D laser scanner designed for robot navigation, SLAM, mapping and obstacle detection. It offers a 0.15–6 m radius range on white targets, at least 8000 samples per second and an adjustable 1–10 Hz scan rate in a compact rotating LiDAR platform.
Product Specifications
| Brand | SLAMTEC |
|---|---|
| Model | RPLIDAR A1M8 |
| Angular Range | 360° |
| Distance Range | 0.15–6 m radius on white objects (Robu-listed version) |
| Sample Frequency | ≥8000 Hz |
| Scan Rate | 1–10 Hz; 5.5 Hz typical |
| Angular Resolution | ≤1° |
| Distance Resolution | <0.5 mm |
| System Voltage | 5 V |
| Output | UART Serial, 3.3 V level |
| Dimensions | 96.8 × 70.3 × 55 mm |
| Weight | 170 g |
Product Features
- Designed for 360° environmental perception, robot navigation and SLAM mapping.
- High sampling frequency provides dense ranging data for real-time map generation.
- Configurable rotational speed allows integration across different mobile-robot platforms.
- UART serial output supports straightforward connection to embedded processors and host computers.
- Compact plug-and-play mechanical design is suitable for home robots, service robots and development platforms.
Package Includes
- 1 × SLAMTEC RPLIDAR A1M8 360° LiDAR Scanner Kit
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 360° laser range scanning for mapping and navigation
- 0.15–6 m radius range on white objects as listed by Robu
- Sampling frequency of at least 8000 measurements per second
- Typical 5.5 Hz scan rate with configurable 1–10 Hz operation
- Compact Class 1 laser scanner with UART output
