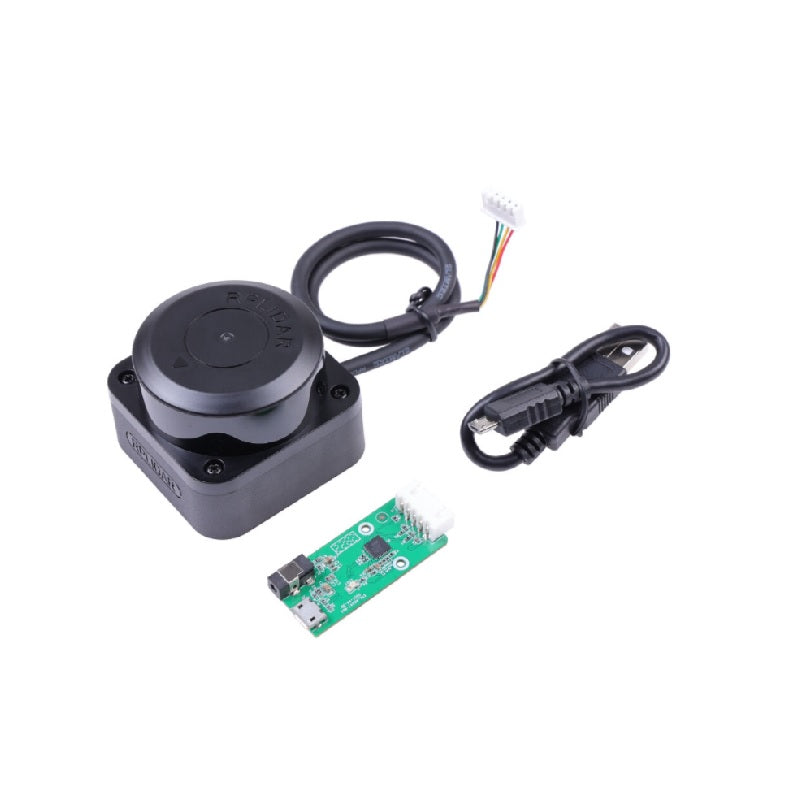

SLAMTEC RPLIDAR C1M1-R2 Portable ToF Laser Scanner Kit 12m
Lead Time
Product Description
SLAMTEC RPLIDAR C1M1-R2 Portable ToF Laser Scanner Kit 12m is designed for the applications supported by the specifications below. It suits users selecting this exact part by its documented function, connection and physical format. Interface support is listed as TTL UART, 460800 baud. The Distance Range specification is 0.05–12 m at 70% reflectivity; 0.05–6 m at 10% reflectivity. The Scan Frequency specification is 8–12 Hz; 10 Hz typical. When choosing this electronics component, start with the documented configuration. Match the part’s stated requirements to the equipment or assembly you already have. The package list establishes what is supplied, while compatibility and operating conditions should be checked separately when planning the complete installation. The Angular Resolution specification is 0.72°. The Range Accuracy specification is ±30 mm. The Range Resolution specification is 15 mm. The Technology specification is Direct Time of Flight (DTOF). The Sample Rate specification is 5 kHz.
Product Specifications
| Brand | SLAMTEC |
|---|---|
| Model | RPLIDAR C1M1-R2 |
| Technology | Direct Time of Flight (DTOF) |
| Distance Range | 0.05–12 m at 70% reflectivity; 0.05–6 m at 10% reflectivity |
| Sample Rate | 5 kHz |
| Scan Frequency | 8–12 Hz; 10 Hz typical |
| Angular Resolution | 0.72° |
| Range Accuracy | ±30 mm |
| Range Resolution | 15 mm |
| Interface | TTL UART, 460800 baud |
| Protection Level | IP54 |
| Ambient Light Resistance | 40,000 lux |
Product Features
- Supported by Fusion-type direct ToF architecture: precise robot perception and navigation.
- Detects targets up to 12 m at 70% reflectivity and up to 6 m at 10% reflectivity.
- Compact 360° scanning design is intended for positioning, mapping, navigation and obstacle avoidance.
- Supported by 40,000 lux anti-ambient-light capability: operation in bright environments.
- TTL UART output and standard RPLIDAR development ecosystem simplify host integration.
Package Includes
- 1 × SLAMTEC RPLIDAR C1M1-R2 Portable ToF Laser Scanner Kit
