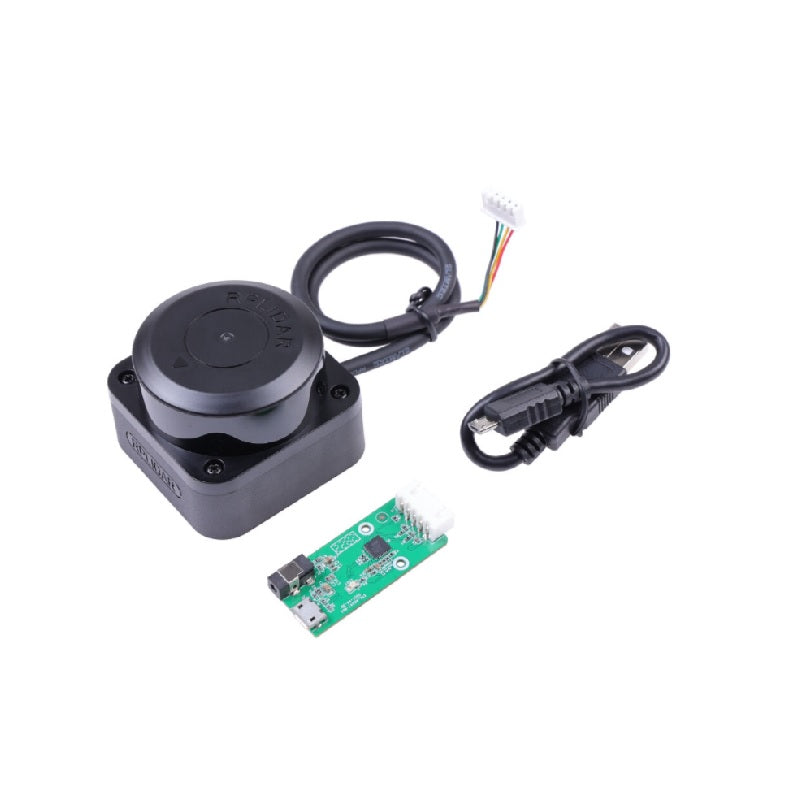

SLAMTEC RPLIDAR C1M1-R2 Portable ToF Laser Scanner Kit 12m
Low Stock, 1 left
Product Description
SLAMTEC RPLIDAR C1M1-R2 is a compact portable 360° 2D ToF laser scanner for robotics, navigation, mapping and obstacle avoidance. It offers up to 12 m ranging and up to 5000 laser-ranging samples per second, combining high-speed rotation with a compact design for mobile robotic platforms.
Product Specifications
| Brand | SLAMTEC |
|---|---|
| Model | RPLIDAR C1M1-R2 |
| Technology | Direct Time of Flight (DTOF) |
| Distance Range | 0.05–12 m at 70% reflectivity; 0.05–6 m at 10% reflectivity |
| Sample Rate | 5 kHz |
| Scan Frequency | 8–12 Hz; 10 Hz typical |
| Angular Resolution | 0.72° |
| Range Accuracy | ±30 mm |
| Range Resolution | 15 mm |
| Interface | TTL UART, 460800 baud |
| Protection Level | IP54 |
| Ambient Light Resistance | 40,000 lux |
Product Features
- Fusion-type direct ToF architecture supports precise robot perception and navigation.
- Detects targets up to 12 m at 70% reflectivity and up to 6 m at 10% reflectivity.
- Compact 360° scanning design is intended for positioning, mapping, navigation and obstacle avoidance.
- 40,000 lux anti-ambient-light capability supports operation in bright environments.
- TTL UART output and standard RPLIDAR development ecosystem simplify host integration.
Package Includes
- 1 × SLAMTEC RPLIDAR C1M1-R2 Portable ToF Laser Scanner Kit
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 360° direct time-of-flight LiDAR scanning
- Up to 12 m radius on 70% reflective targets
- 5000 samples per second for detailed environment sensing
- 8–12 Hz scan frequency with 10 Hz typical operation
- IP54 protection and TTL UART interface
