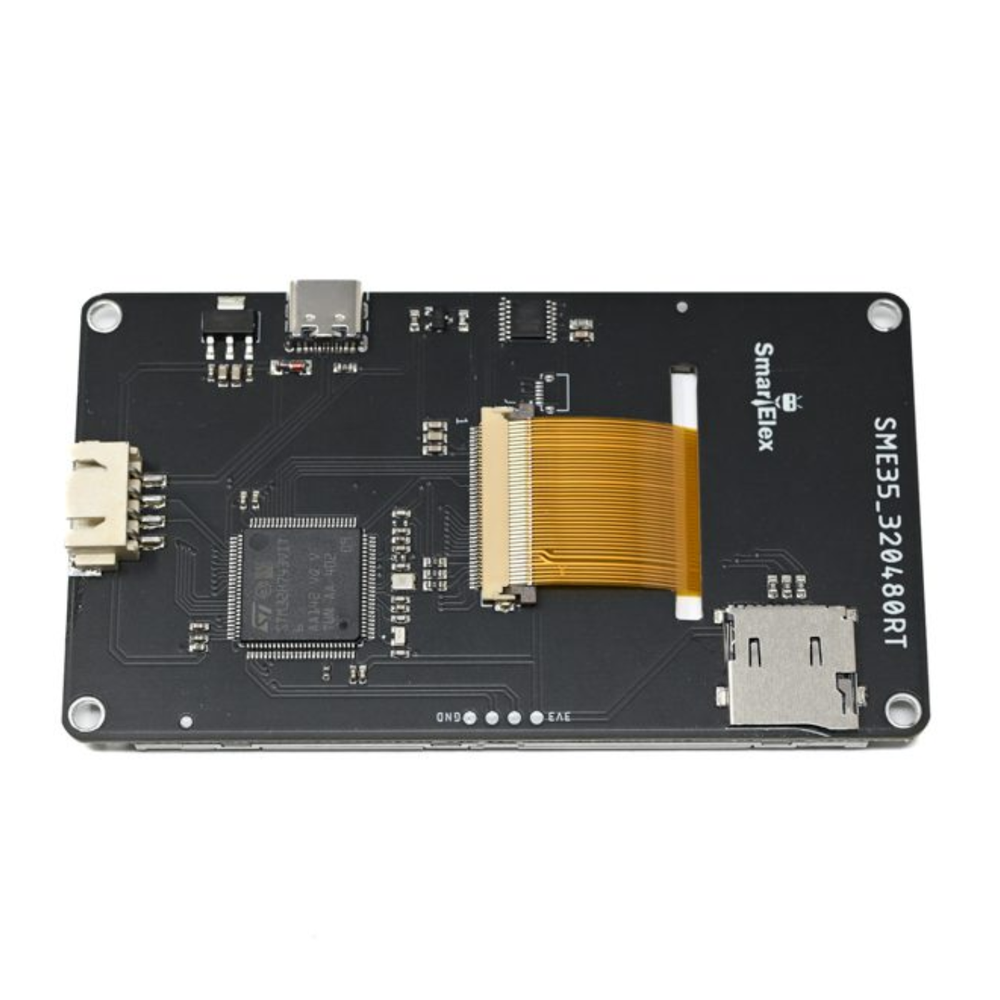

SmartElex Basic 3.5 Inch HMI Display with Resistive Touch 320x480
SmartElex Basic 3.5 Inch HMI Display with Resistive Touch 320x480
Low Stock, 5 left
Product Description
Compact SmartElex Basic 3.5 Inch HMI display for embedded control, IoT and automation projects, featuring resistive touch and UART communication.
Key highlights: 3.5-inch TFT HMI, 320 × 480 resolution, RGB565 colour format, resistive touch, Micro-SD storage, 4-pin UART at 115200 baud and 5 V Type-C USB support.
Applications
Product Specifications
| Product Type | HMI TFT LCD |
|---|---|
| Display Size | 3.5 inch |
| Resolution | 320 × 480 |
| Touch | Resistive |
| Colour Format | RGB565 |
| Interface | 4-pin UART, 115200 baud |
| Storage | Micro-SD |
| Supply | 5V Type-C USB |
| Typical Current | Up to approximately 650mA |
Product Features
- Designed for embedded control, IoT and automation interfaces.
- Resistive touch supports finger or stylus input.
- UART interface simplifies integration with Arduino, ESP32, STM32 and similar controllers.
- Micro-SD support enables project assets and firmware storage.
Package Includes
- 1 × SmartElex Basic 3.5 Inch HMI Display
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 3.5-inch TFT HMI display
- 320 × 480 resolution with RGB565 colour format
- Resistive touch panel
- 4-pin 2.54mm UART interface at 115200 baud
- Micro-SD card support for firmware and image storage
- 5V Type-C USB support
SKU: 2EMK2151
