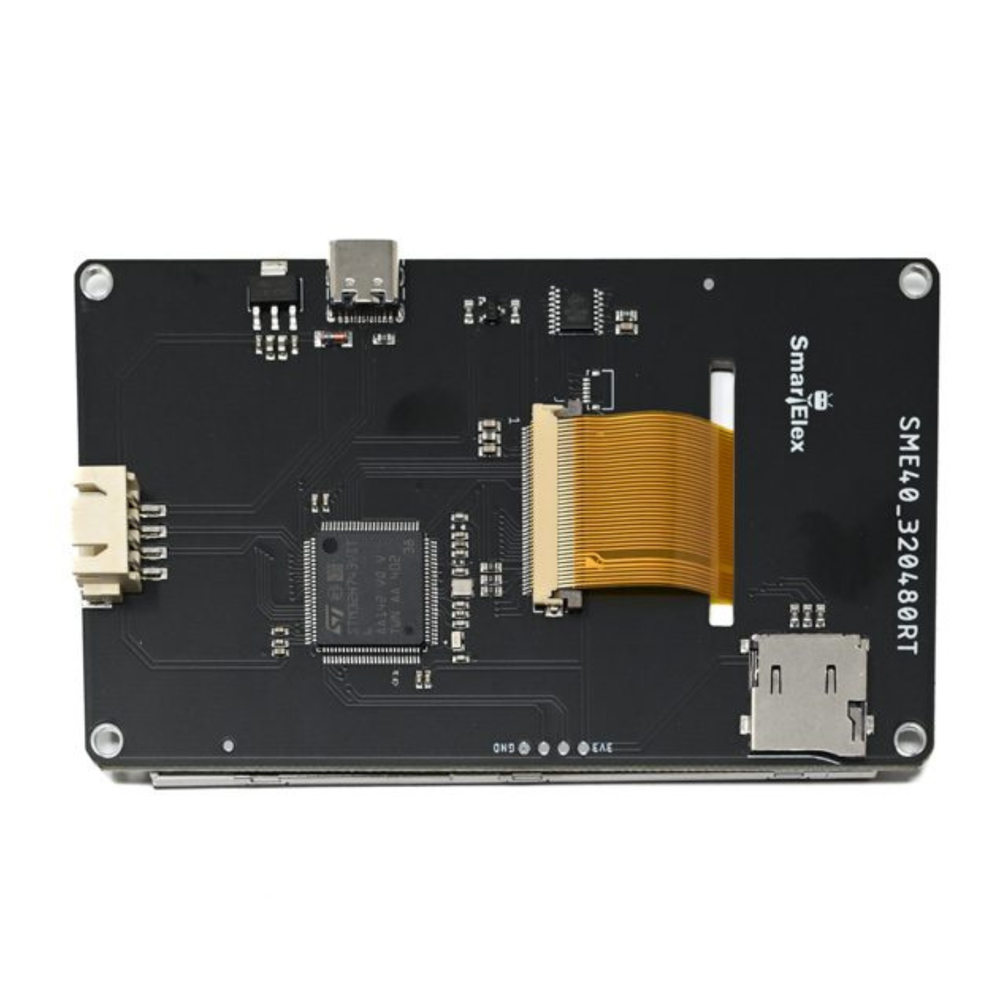

SmartElex Basic 4.0 Inch HMI Display with Resistive Touch 320x480
SmartElex Basic 4.0 Inch HMI Display with Resistive Touch 320x480
Lead Time
Product Description
SmartElex Basic 4.0 Inch HMI display for automation, IoT and embedded control applications, combining a larger resistive-touch screen with UART communication.
Key highlights: 4.0-inch TFT HMI, 320 × 480 resolution, RGB565 colour format, resistive touch, Micro-SD storage, 4-pin UART at 115200 baud and 5 V Type-C USB support.
Product Specifications
| Product Type | HMI TFT LCD |
|---|---|
| Display Size | 4.0 inch |
| Resolution | 320 × 480 |
| Touch | Resistive |
| Colour Format | RGB565 |
| Interface | 4-pin UART, 115200 baud |
| Storage | Micro-SD |
| Supply | 5V Type-C USB |
| Typical Current | Up to approximately 650mA |
Product Features
- Designed for embedded control, IoT and automation interfaces.
- Resistive touch supports finger or stylus input.
- UART interface simplifies integration with Arduino, ESP32, STM32 and similar controllers.
- Micro-SD support enables project assets and firmware storage.
Package Includes
- 1 × SmartElex Basic 4.0 Inch HMI Display
Other Information
Warranty Information
15 Days Seller Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time for orders within India is 7-10 working days. Delivery varies based on location and courier service.
- Delivery time for orders outside India is up to 20 working days. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 4.0-inch TFT HMI display
- 320 × 480 resolution with RGB565 colour format
- Resistive touch panel
- 4-pin 2.54mm UART interface at 115200 baud
- Micro-SD card support for firmware and image storage
- 5V Type-C USB support
SKU: 2EMK2152
₹ 1,938.00
Bulk orders or B2B inquiries? Email us →
Lead time
| Item is currently out of stock, but you can still place an order. Estimated delivery time will be notified to you by email. |
