ST Link V2 Programmer for STM8 and STM32
ST Link V2 Programmer for STM8 and STM32
Low Stock, 1 left
Product Description

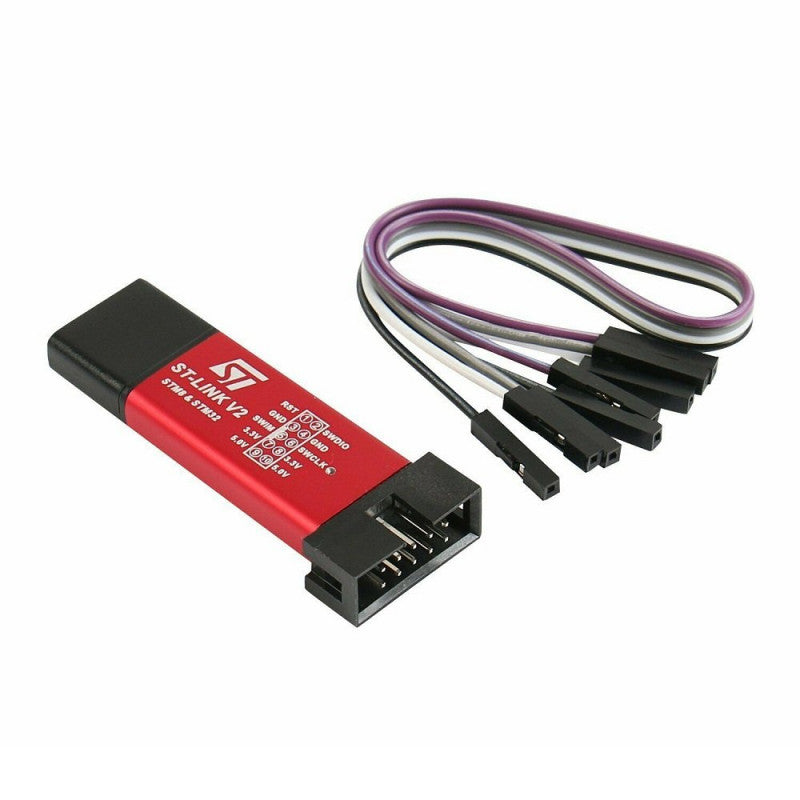

Compact USB in-circuit programmer and debugger for STM8 and STM32 microcontrollers. Supports STM32 SWD and STM8 SWIM programming/debugging with 3.3V and 5V target power outputs.
Key highlights: portable aluminium USB-stick enclosure, clearly marked interface pins, 500mA resettable fuse protection, SWIM connection support, and low/high-speed SWIM programming.
Applications
Product Specifications
| Product Type | Programmer / Debugger |
|---|---|
| Target Families | STM8, STM32 |
| STM8 Interface | SWIM |
| STM32 Interface | SWD |
| Target Power Output | 3.3V / 5V |
| USB Protection | 500mA resettable fuse |
| SWIM Programming Speed | Approx. 9.7KB/s low speed; 12.8KB/s high speed |
| Connector Pitch | 2.54mm class target connection |
Product Features
- STM8 and STM32 Development
Designed for programming and in-circuit debugging of common STM8 and STM32 targets. - Dual Target Voltage
Provides both 3.3V and 5V outputs for convenient target-board connection. - Protected USB Interface
Uses a 500mA resettable fuse to help protect the host USB port. - Clearly Marked Connections
Interface definitions are printed on the enclosure for quick bench use.
Package Includes
- 1 × ST Link V2 Programmer for STM8 and STM32
Other Information
Warranty Information
15 Days Seller Warranty:
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- Delivery time within metro cities in India is 1-3 days; for other locations, it is 3-7 days. Delivery varies based on location and courier service.
- If the item is out of stock, the estimated delivery time is 7-14 days from order confirmation. Delivery varies based on location and courier service.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- Programming and debugging support for STM8 and STM32 microcontrollers
- SWIM interface for STM8 and SWD interface for STM32
- 3.3V and 5V target power outputs
- 500mA resettable fuse for USB-side protection
- Compact aluminium USB-stick style enclosure
- SWIM programming speed up to 12.8KB/s in high-speed mode
SKU: 2EMK2060
