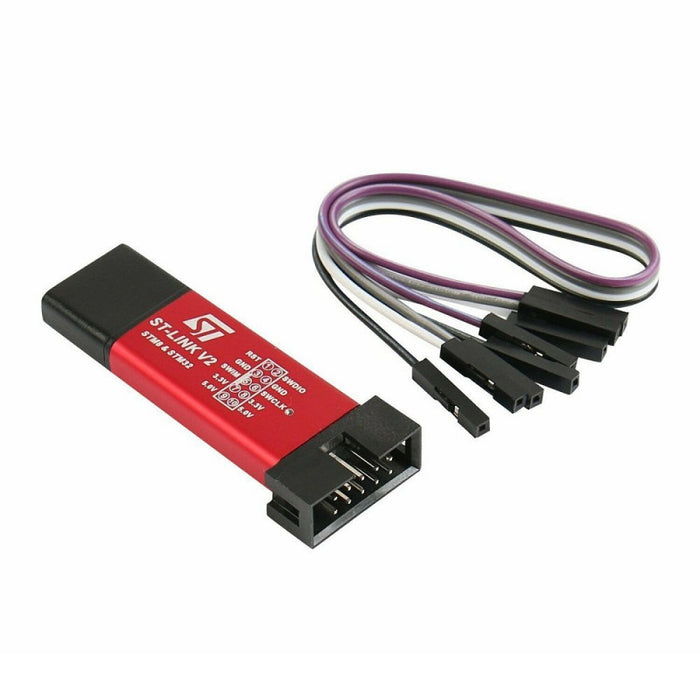

ST Link V2 Programmer for STM8 and STM32
  • ST Link V2 Programmer for STM8 and STM32

Product Description

ST Link V2 Programmer for STM8 and STM32 is designed for the programming, debugging or serial-development functions stated below. It suits developers working with the target platforms and interfaces identified for this particular tool. STM8 Interface support is listed as SWIM. STM32 Interface support is listed as SWD. The Target Power Output specification is 3.3V / 5V. When choosing this programmer / debugger, start with the documented configuration.

Key highlights:Check target support, the host software and the connection arrangement together. Programming and debugging are distinct functions, and any target-voltage or setup limits still apply when connecting the tool to a board. The Target Families specification is STM8, STM32. The USB Protection specification is 500mA resettable fuse. The SWIM Programming Speed specification is Approx. 9.7KB/s low speed; 12.8KB/s high speed. The Connector Pitch specification is 2.54mm class target connection.

Product Specifications

Product TypeProgrammer / Debugger
Target FamiliesSTM8, STM32
STM8 InterfaceSWIM
STM32 InterfaceSWD
Target Power Output3.3V / 5V
USB Protection500mA resettable fuse
SWIM Programming SpeedApprox. 9.7KB/s low speed; 12.8KB/s high speed
Connector Pitch2.54mm class target connection

Product Features

  1. STM8 and STM32 Development
    Use this version for programming and in-circuit debugging of common STM8 and STM32 targets.
  2. Dual Target Voltage
    both 3.3V and 5V outputs for convenient target-board connection is provided by the unit.
  3. Protected USB Interface
    Operation is based on a 500mA resettable fuse to help protect the host USB port.
  4. Clearly Marked Connections
    Interface definitions are printed on the enclosure for prompt bench use.

Package Includes

  • 1 × ST Link V2 Programmer for STM8 and STM32

Frequently Asked Questions

What is the ST Link V2 Programmer for STM8 and STM32 used for?
Compact USB in-circuit programmer and debugger for STM8 and STM32 microcontrollers. Supports STM32 SWD and STM8 SWIM programming/debugging with 3.3V and 5V target power outputs.
What are its main features?
Programming and debugging support for STM8 and STM32 microcontrollers; SWIM interface for STM8 and SWD interface for STM32; 3.3V and 5V target power outputs; 500mA resettable fuse for USB-side protection.
What are the power or battery requirements?
Target Power Output: 3.3V / 5V. Match the supply or charger to these specifications before connecting the product.
Which interfaces or communication protocols does it use?
STM8 Interface: SWIM; STM32 Interface: SWD. Check that your host, gateway or controller supports the listed interface and required configuration.
What is included in the package?
1 × ST Link V2 Programmer for STM8 and STM32.
