STMicroelectronics ST-LINK/V2 In-Circuit Debugger Programmer for STM8 & STM32
STMicroelectronics ST-LINK/V2 In-Circuit Debugger Programmer for STM8 & STM32
Lead Time
Product Description
STMicroelectronics ST-LINK/V2 In-Circuit Debugger Programmer for STM8 & STM32 is designed for the programming, debugging or serial-development functions stated below. It suits developers working with the target platforms and interfaces identified for this particular tool. Host Interface support is listed as USB 2.0 full speed. STM8 Interface support is listed as SWIM. STM32 Interfaces support is listed as JTAG / SWD. When choosing this in-circuit debugger / programmer, start with the documented configuration.
Key highlights:Check target support, the host software and the connection arrangement together. Programming and debugging are distinct functions, and any target-voltage or setup limits still apply when connecting the tool to a board. The SWIM Target Voltage specification is 1.65V to 5.5V. The JTAG/SWD Target Voltage specification is 1.65V to 3.6V; 5V-tolerant inputs. The Target Families specification is STM8, STM32. The USB Supply specification is 5V. The SWIM Modes specification is Low speed / high speed.
Product Specifications
| Product Type | In-Circuit Debugger / Programmer |
|---|---|
| Target Families | STM8, STM32 |
| Host Interface | USB 2.0 full speed |
| STM8 Interface | SWIM |
| STM32 Interfaces | JTAG / SWD |
| USB Supply | 5V |
| SWIM Target Voltage | 1.65V to 5.5V |
| JTAG/SWD Target Voltage | 1.65V to 3.6V; 5V-tolerant inputs |
| SWIM Modes | Low speed / high speed |
| Firmware Update | Supported |
Product Features
- Multi-Family Support
Available functions include STM8 through SWIM and STM32 through JTAG/SWD interfaces. - USB-Powered Operation
Powered from a 5V USB connection with USB 2.0 full-speed communication. - Flexible Target Voltage
Available functions include low-voltage embedded targets across the source-listed SWIM and JTAG/SWD ranges. - Development Tool Integration
Use this version for common STM8/STM32 development environments and firmware-update workflows.

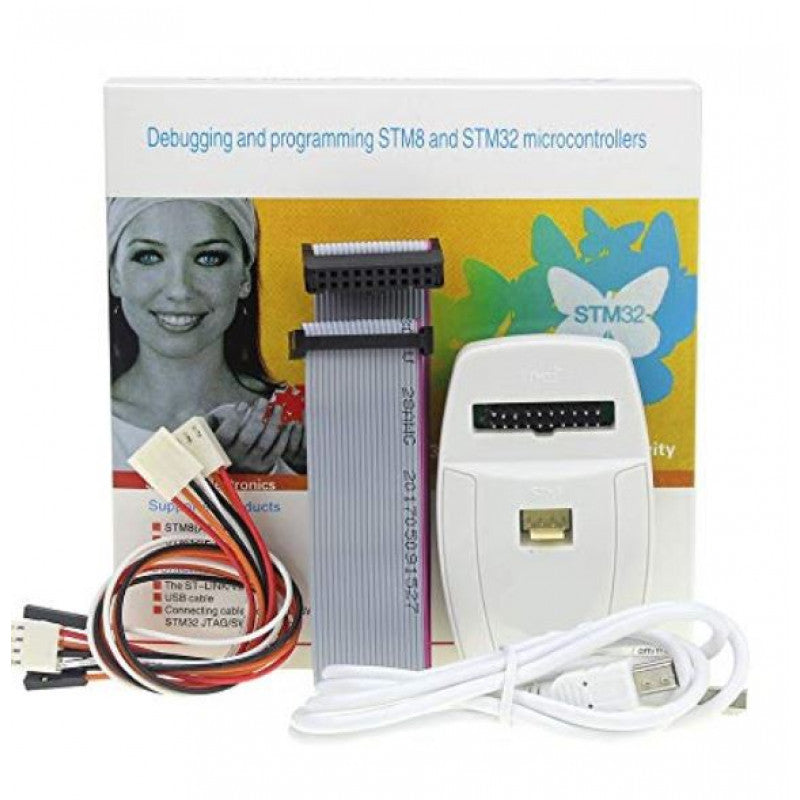

Package Includes
- 1 × ST-LINK/V2 debugging and programming unit
- 1 × USB standard A to mini-B cable
- 1 × STM8 SWIM / STM32 JTAG-SWD connecting cable
- 1 × 20-pin flat ribbon cable
Frequently Asked Questions
What is the STMicroelectronics ST-LINK/V2 In-Circuit Debugger Programmer for STM8 & STM32 used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
