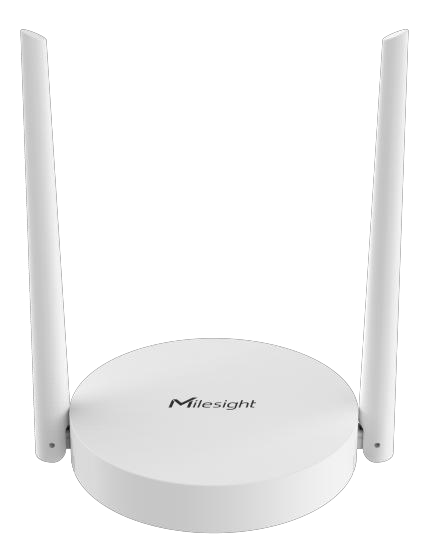

UG63-915M - Mini LoRaWAN® Gateway
Low Stock, 1 left
Product Description
UG63 is an 8-channel lightweight indoor LoRaWAN® gateway powered by the SX1302 chip. It forwards data between end nodes and mainstream network servers, including The Things Stack and ChirpStack. Its compact design suits independent LoRaWAN networks in small-scale deployments and individual indoor spaces. It can also work with Milesight UG56, UG65 and UG67 gateways to extend coverage into signal blind spots across offices, parking lots and campuses.

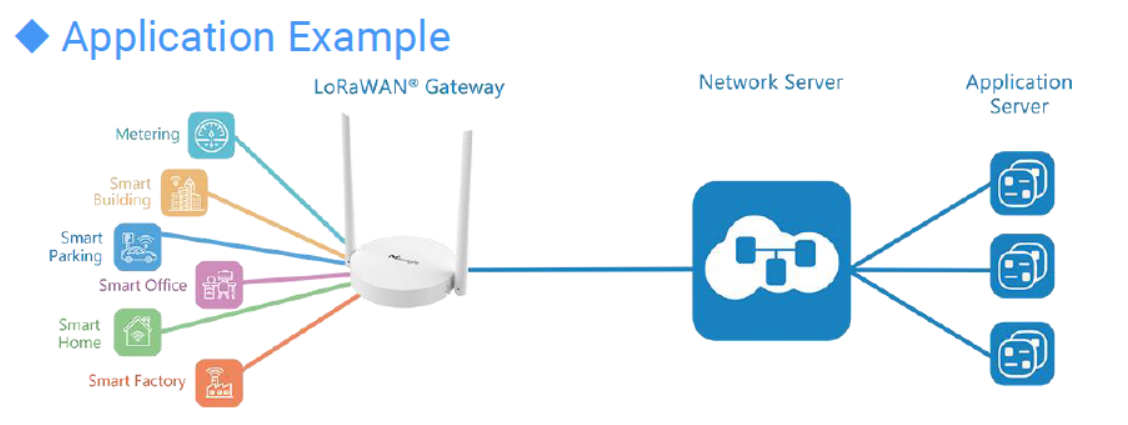

Applications
Product Specifications
| Model | UG63-915M |
| Gateway | 8 half-duplex channels; SX1302 |
| Frequency | 915 MHz variant; confirm US915/AU915 plan at ordering. UG63 family: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| CPU | Dual-core 240 MHz, 32-bit Xtensa LX7 |
| Memory / Flash | 8 MB PSRAM / 16 MB Flash |
| Packet forwarding capacity | Around 2000 Class A/B/C devices, depending on uplink/downlink traffic |
| Embedded network server | LoRaWAN v1.0.3 Class A/Class C; maximum 20 devices |
| Sensitivity / Transmit power | -140 dBm @292 bps / maximum 27 dBm |
| LoRa antenna | 1 external antenna |
| Ethernet | 1 RJ45 WAN; 10/100 Mbps; 1.5 kV RMS isolation |
| Wi-Fi | 2.4 GHz IEEE 802.11b/g/n; AP for configuration and client mode |
| Cellular | Optional 4G LTE Cat 1/GSM; Micro SIM; module region dependent |
| Integration | MQTT, HTTP, HTTPS |
| Management | Web, MQTT API, Milesight Development Platform, DeviceHub |
| VPN | OpenVPN client |
| Power | 5V/2A Type-C; 5–12V DC cable; IEEE 802.3af PoE via splitter |
| Consumption | Typical 1.3 W; maximum 3.1 W |
| Protection / Housing | IP30; PC + ABS, white |

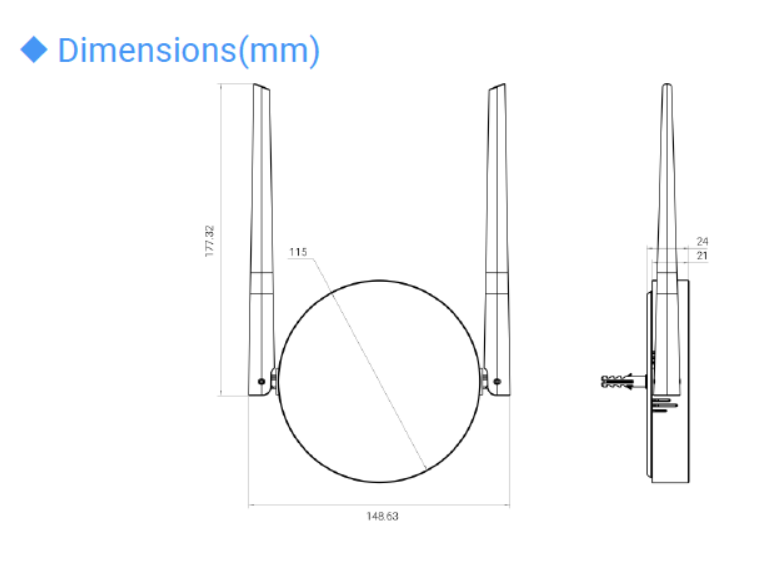

| Dimensions | Diameter 115 × 21 mm, excluding antenna |
| Weight | 140 g non-cellular; 158.2 g cellular |

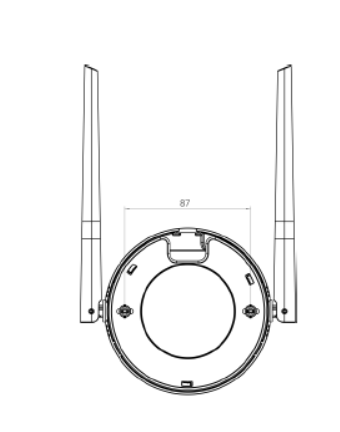

| Mounting | Desktop, wall or ceiling |
| Operating / Storage temperature | -20°C to +50°C / -40°C to +85°C |
| Humidity | 0–95% non-condensing at 25°C |
| Approvals (UG63 family) | CE, CE (RED), FCC, RCM; RoHS |
| Urban range | Up to 2 km; actual range depends on installation and environment |
Product Features
- Equipped with the SX1302 chip to handle higher traffic with lower power consumption.
- 8 half-duplex channels supporting connections to more than 2,000 end nodes.
- Compact design for easy transport and deployment.
- Supports desktop, wall or ceiling mounting.
- Multiple backhaul options with Ethernet, cellular (4G, optional) and WLAN.

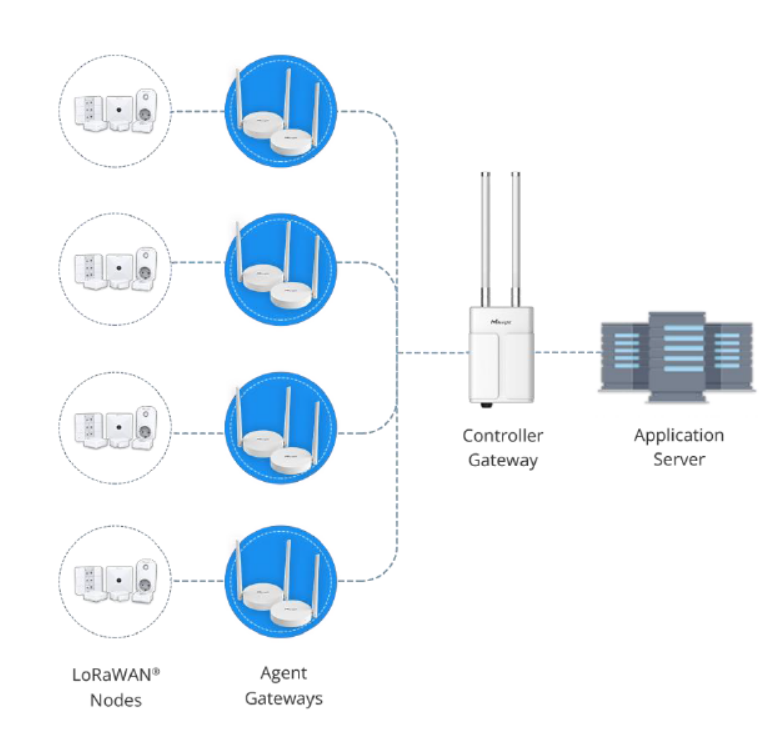

- Extends LoRaWAN® coverage into signal blind spots by transmitting data to a Milesight UG56, UG65 or UG67 controller gateway.
- Cost-effective performance suitable for small-scale applications.
- Compatible with remote management systems for simple deployment, including in remote regions.
- Compatible with mainstream network servers such as The Things Stack, ChirpStack and AWS IoT Core for LoRaWAN®.
- Embedded network server and MQTT API for easy integration.

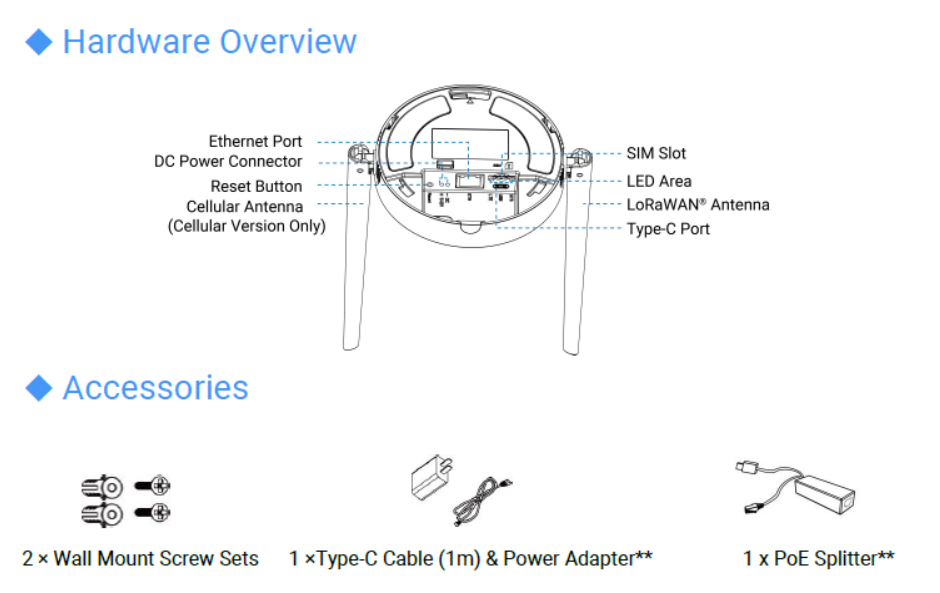

Package Includes
- 1 × UG63-915M Mini LoRaWAN Gateway
- LoRa external antenna
- 2 × wall-mount screw sets
- Either 1 m Type-C cable with power adapter OR PoE splitter as standard power accessory; confirm bundle
- Cellular antenna only with optional cellular configuration
Frequently Asked Questions
What is the UG63-915M - Mini LoRaWAN® Gateway used for?
What are its main features?
What are the power or battery requirements?
Which interfaces or communication protocols does it use?
What is included in the package?
Other Information
Warranty Information
6 Months Seller Warranty
This item is covered with a standard warranty of 6 months from the time of delivery against manufacturing defects only. This warranty is given for the benefit of TwoElectrons customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What Voids Warranty
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Shipping & Returns Policy
Shipping Policy:
- In-stock items are delivered within 7-10 working days for orders within India. Delivery varies based on location and courier service.
- In-stock items are delivered within up to 20 working days for orders outside India. Delivery varies based on location and courier service.
- If the item is out of stock, you can still place an order. The estimated delivery time will be notified to you by email.
Return & Refund Policy:
- Return window: 7 days from receipt unless stated otherwise.
- No refunds or replacements after the return window.
- Returns are accepted only for non-working or damaged products.
- Initiate return requests from here: Return Request or contact us at 09831070550.
- Refunds are processed within 3-4 working days after inspection and approval.
Main Features
- 8 LoRaWAN channels
- Support for around 2000 end nodes via packet forwarding
- Up to 2 km urban communication range, subject to conditions
- Global frequency plans across the UG63 product family
- Compact indoor IP30 gateway with Ethernet and Wi-Fi
SKU: 2EEN20205
